File Detail parts/s/52985s01.dat

Official File parts/s/52985s01.dat

File Header:

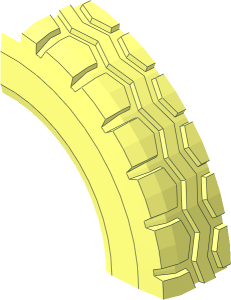

0 ~Tyre 27/ 48 x 43, Quarter
0 Name: s\52985s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
