File Detail parts/s/53118s02.dat

Official File parts/s/53118s02.dat

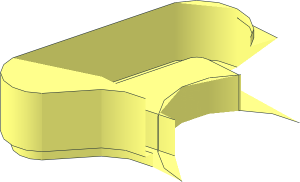

~Minifig Video Game Controller without Patternable Surfaces - Half

File Header:

0 ~Minifig Video Game Controller without Patternable Surfaces - Half
0 Name: s\53118s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02

Show contents

0 // Bottom
3 16 0 8 -8 -4 8 -8 -4 8 -7
3 16 0 8 -8 -4 8 -7 -4 8 -5
2 24 -5.8499 8 -5.3679 -5.8499 4 -5.3679
2 24 -5.6568 8 -5.6568 -5.8499 8 -5.3679
2 24 -5.6568 8 -5.6568 -3.0616 8 -7.3912
2 24 -3.0616 8 -7.3912 0 8 -8

1 16 -4 6.5 -15 0 0 -1 0 -1 0 1 0 0 1-8ring6.dat
0 BFC INVERTNEXT
1 16 -4 6.5 -15 0 0 -7 0 1.5 0 7 0 0 1-8cylo.dat
1 16 -4 8 -15 0 0 -10 0 -4 0 10 0 0 1-8cylo.dat
1 16 -4 4 -15 0 0 -10 0 -1 0 10 0 0 1-8tang.dat
1 16 -4 8 -15 0 0 -1 0 -1 0 1 0 0 1-8ring7.dat
1 16 -4 8 -15 0 0 -2 0 -1 0 2 0 0 1-8ring4.dat
0 BFC INVERTNEXT
1 16 -4 0 -15 0 0 -6 0 6.5 0 6 0 0 1-8cylo.dat
1 16 -4 0 -15 0 0 -6 0 1 0 6 0 0 1-8ndis.dat

1 16 -10.0071 3.25 -13.0429 -1.7645 -1 0 0 0 3.25 -2.2855 0 0 rect2p.dat
1 16 -10.7142 7.25 -12.3358 0 -1 1.7645 .75 0 0 0 0 2.2855 rect1.dat
1 16 -10.3607 6.5 -12.6894 -.35355 0 1.7645 0 -1 0 .35355 0 2.2855 rect1.dat
1 16 -11.8303 6 -9.06515 0 1 -.7593 2 0 0 0 0 -1.13615 rect3.dat
4 16 -11.071 8 -7.929 -9.6568 8 -9.3432 -12.6 8 -10.5 -12.5896 8 -10.2013
4 16 -12.6 8 -10.5 -9.6568 8 -9.3432 -8.9497 8 -10.0503 -12.6 8 -12.5
4 16 -12.6 8 -12.8978 -12.6 8 -12.5 -8.9497 8 -10.0503 -12.4787 8 -14.6213

1 16 -14.6 0 -12.5 -4 0 0 0 6.5 0 0 0 -4 3-8cylo.dat
1 16 -14.6 6.5 -12.5 -1 0 0 0 -1 0 0 0 -1 3-8ring3.dat
1 16 -14.6 6.5 -12.5 -3 0 0 0 1.5 0 0 0 -3 3-8cylo.dat
1 16 -14.6 8 -12.5 -1 0 0 0 -1 0 0 0 -1 3-8ring2.dat
1 16 -14.6 8 -12.5 2 0 0 0 -1 0 0 0 -2 1-8tang.dat
1 16 -14.6 8 -12.5 -2 0 0 0 -1 0 0 0 2 2-4ndis.dat
3 16 -13.1858 8 -13.9142 -12.9044 8 -13.633 -12.4787 8 -14.6213
3 16 -12.4787 8 -14.6213 -12.9044 8 -13.633 -12.7522 8 -13.2654
3 16 -12.4787 8 -14.6213 -12.7522 8 -13.2654 -12.6 8 -12.8978
3 16 -17.6 8 -12.5 -16.6 8 -10.5 -16.6 8 -12.5
3 16 -14.0295 8 -9.7181 -14.6 8 -10.5 -16.6 8 -10.5
4 16 -12.6 8 -10.5 -14.6 8 -10.5 -14.0295 8 -9.7181 -12.5896 8 -10.2013
0 BFC INVERTNEXT
1 16 -14.6 4 -12.5 -2 0 0 0 4 0 0 0 -2 4-4cylc.dat
1 16 -13.30955 6 -9.9597 0 -1 -.71995 2 0 0 0 0 .2416 rect3.dat
1 16 -14.6 0 -12.5 -4 0 0 0 1 0 0 0 -4 3-8chrd.dat

1 16 -15.8788 7.25 -3.3889 1.7212 1 0 0 0 .75 9.1111 0 0 rect2p.dat
1 16 -12.7077 6 -2.572 1.3218 -1 0 0 0 -2 7.1461 0 0 rect2p.dat
2 24 -15.0815 0 6.1049 -18.6 0 -12.5
2 24 -15.0815 6.5 6.1049 -18.6 6.5 -12.5
3 16 -15.0815 1 6.1049 -15.0815 6.5 6.1049 -18.6 6.5 -12.5
4 16 -18.6 6.5 -12.5 -18.6 0 -12.5 -15.0815 0 6.1049 -15.0815 1 6.1049
4 16 -18.6 6.5 -12.5 -15.0815 6.5 6.1049 -14.1576 6.5 5.7222 -17.6 6.5 -12.5
4 16 -14.1576 8 5.7222 -11.3859 8 4.5741 -14.0295 8 -9.7181 -16.6 8 -10.5
3 16 -16.6 8 -10.5 -17.6 8 -12.5 -14.1576 8 5.7222

1 16 -10 0 4 0 0 -5.5 0 1 0 5.5 0 0 3-16cyli.dat
1 16 -10 1 4 0 0 -5.5 0 5.5 0 5.5 0 0 3-16cyli.dat
1 16 -10 6.5 4 0 0 -1.1 0 -1 0 1.1 0 0 3-16ring4.dat
1 16 -10 6.5 4 0 0 -4.5 0 1.5 0 4.5 0 0 3-16cylo.dat
1 16 -10 8 4 0 0 -4.5 0 -1 0 4.5 0 0 3-16chrd.dat
0 BFC INVERTNEXT
1 16 -10 4 4 0 0 -1.5 0 4 0 1.5 0 0 3-16cylo.dat
1 16 -10 4 4 0 0 -1.5 0 -1 0 1.5 0 0 3-16chrd.dat
1 16 -10 8 4 0 0 -1.5 0 -1 0 1.5 0 0 3-16ndis.dat
1 16 -10 0 4 0 0 -5.5 0 1 0 5.5 0 0 3-16edge.dat
1 16 -10 6.5 4 0 0 -5.5 0 1 0 5.5 0 0 3-16edge.dat
4 16 -14.1576 8 5.7222 -10 8 8.5 -10 8 5.5 -11.5 8 5.5
3 16 -14.1576 8 5.7222 -11.5 8 5.5 -11.3859 8 4.5741
1 16 -10 0 4 0 0 -5.5 0 1 0 5.5 0 0 3-16chrd.dat
1 16 -10 0 4 0 0 5.5 0 1 0 5.5 0 0 1-8chrd.dat
4 16 -18.6 0 -12.5 -11.7716 0 -15.3284 -8.2426 0 -10.7574 -10 0 -9

1 16 -10 0 4 0 0 5.5 0 1 0 5.5 0 0 1-8cylo.dat
1 16 -10 1 4 0 0 5.5 0 1 0 5.5 0 0 1-8ndis.dat
1 16 -5.6468 .5 7.1946 .4642 -1 0 0 0 .5 -.69455 0 0 rect2p.dat
3 16 -5.1826 1 6.5 -4.5 1 9.5 -6.111 1 7.8891
3 16 -10 6.5 9.5 -10 1 9.5 -4.5 1 9.5
2 24 -10 1 9.5 -4.5 1 9.5

2 24 -3.0616 8 7.3912 0 8 8
2 24 -5.6568 8 5.6568 -3.0616 8 7.3912
2 24 -5.6568 8 5.6568 -5.7616 8 5.5
1 16 -7.8808 6 5.5 0 0 2.1192 2 0 0 0 1 0 rect3.dat
4 16 -5.7616 8 5.5 -10 8 5.5 -10 8 8.5 -5.6568 8 5.6568
3 16 -5.6568 8 5.6568 -10 8 8.5 -3.0616 8 7.3912
3 16 -3.0616 8 7.3912 -10 8 8.5 0 8 8

0 // Complementary Condlines
5 24 -15.0815 1 6.1049 -15.0815 6.5 6.1049 -13.88905 6.5 7.88905 -18.6 6.5 -12.5
5 24 -15.0815 0 6.1049 -15.0815 1 6.1049 -13.88905 0 7.88905 -18.6 0 -12.5
5 24 -18.6 0 -12.5 -18.6 6.5 -12.5 -18.2956 6.5 -14.0308 -15.0815 6.5 6.1049
5 24 -11.7716 0 -15.3284 -11.77165 6.5 -15.32845 -13.0692 6.5 -16.1956 -8.24265 6.5 -10.75745
5 24 -8.2426 0 -10.7574 -8.24265 6.5 -10.75745 -11.77165 6.5 -15.32845 -6.2962 6.5 -9.4566
5 24 -11.3859 4 4.5741 -11.3859 8 4.5741 -11.06065 8 5.06065 -14.0295 8 -9.7181
5 24 -11.071 4 -7.929 -11.071 8 -7.929 -12.5896 4 -10.2013 -7.827 8 -5.761
5 24 -17.6 8 -12.5 -17.6 6.5 -12.5 -14.1576 6.5 5.7222 -17.3717 8 -13.6481
5 24 -14.1576 6.5 5.7222 -14.1576 8 5.7222 -17.6 8 -12.5 -13.182 6.5 7.18195
5 24 -6.111 1 7.88915 -6.111 0 7.88915 -5.1826 0 6.50005 -7.89515 0 9
5 24 -12.4787 6.5 -14.6213 -12.4787 8 -14.6213 -8.9497 6.5 -10.0503 -13.4519 6.5 -15.2717
5 24 -8.9497 8 -10.0503 -8.9497 6.5 -10.0503 -12.4787 6.5 -14.6213 -6.6789 6.5 -8.5327

0 // Inside
4 16 -11.3859 4 4.5741 -11.071 4 -7.929 -12.5896 4 -10.2013 -14.0295 4 -9.7181
3 16 -9.665 4 -6.522 -11.071 4 -7.929 -11.3859 4 4.5741
3 16 -7.827 4 -5.761 -9.665 4 -6.522 -11.3859 4 4.5741
4 16 -8 4 0 -5.989 4 -5 -7.827 4 -5.761 -11.3859 4 4.5741
4 16 -8 4 0 -11.3859 4 4.5741 -10 4 5.5 -5.7616 4 5.5

0 // Stud
1 16 0 8 0 -8 0 0 0 -4 0 0 0 8 1-8cyli.dat
1 16 0 4 0 -8 0 0 0 1 0 0 0 8 1-8edge.dat
1 16 0 8 0 -8 0 0 0 -4 0 0 0 -8 1-8cyli.dat
1 16 0 4 0 -8 0 0 0 1 0 0 0 -8 1-8edge.dat

Status:

Official

This part has the following warnings

5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 -10.3607 6.5 -12.6894 -.35355 0 1.7645 0 -1 0 .35355 0 2.2855 rect1.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 -11.8303 6 -9.06515 0 1 -.7593 2 0 0 0 0 -1.13615 rect3.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 -13.30955 6 -9.9597 0 -1 -.71995 2 0 0 0 0 .2416 rect3.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 -5.6468 .5 7.1946 .4642 -1 0 0 0 .5 -.69455 0 0 rect2p.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 5 24 -15.0815 1 6.1049 -15.0815 6.5 6.1049 -13.88905 6.5 7.88905 -18.6 6.5 -12.5
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 5 24 -15.0815 0 6.1049 -15.0815 1 6.1049 -13.88905 0 7.88905 -18.6 0 -12.5
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 5 24 -11.7716 0 -15.3284 -11.77165 6.5 -15.32845 -13.0692 6.5 -16.1956 -8.24265 6.5 -10.75745
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 5 24 -8.2426 0 -10.7574 -8.24265 6.5 -10.75745 -11.77165 6.5 -15.32845 -6.2962 6.5 -9.4566
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 5 24 -11.3859 4 4.5741 -11.3859 8 4.5741 -11.06065 8 5.06065 -14.0295 8 -9.7181
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 5 24 -14.1576 6.5 5.7222 -14.1576 8 5.7222 -17.6 8 -12.5 -13.182 6.5 7.18195
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 5 24 -6.111 1 7.88915 -6.111 0 7.88915 -5.1826 0 6.50005 -7.89515 0 9
