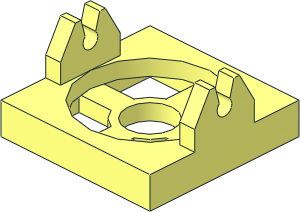

~Magnet Holder Tile 2 x 2 with Short Arms (Obsolete)
File Header:
0 ~Magnet Holder Tile 2 x 2 with Short Arms (Obsolete) 0 Name: 2609a.dat 0 Author: Steve Bliss [sbliss] 0 !LDRAW_ORG Part UPDATE 2025-06 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !CATEGORY Obsolete 0 !HISTORY 1997-12-05 [PTadmin] Official Update 1997-17 0 !HISTORY 1998-10-15 [PTadmin] Official Update 1998-09 0 !HISTORY 2007-05-17 [PTadmin] Header formatted for Contributor Agreement 0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01 0 !HISTORY 2014-10-15 [Darats] Complete rework; use more primitives; BFCed 0 !HISTORY 2014-12-21 [PTadmin] Renamed from 2609 0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02 0 !HISTORY 2025-03-26 [Holly-Wood] Obsoleted due to bad geometry (use 2609d) 0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
