Official File parts/s/6142617ws11.dat
File Header:

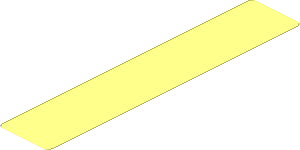

0 ~Sticker 0.8 x 4.0 with Z/28 Logo on Silver Grille on Black Background - Bottom Face
0 Name: s\6142617ws11.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
0 // Primitives
1 16 -6.5 0 39.054 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 6.5 0 39.054 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 -6.5 0 -39.054 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 6.5 0 -39.054 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -6.5 -.25 39.054 -1.5 0 0 0 .25 0 0 0 1.5 1-4cyli.dat
1 16 6.5 -.25 39.054 1.5 0 0 0 .25 0 0 0 1.5 1-4cyli.dat
1 16 -6.5 -.25 -39.054 -1.5 0 0 0 .25 0 0 0 -1.5 1-4cyli.dat
1 16 6.5 -.25 -39.054 1.5 0 0 0 .25 0 0 0 -1.5 1-4cyli.dat
0 // Bottom faces
4 16 -6.5 0 40.554 -6.5 0 -40.554 -8 0 -39.054 -8 0 39.054
4 16 -6.5 0 40.554 6.5 0 40.554 6.5 0 -40.554 -6.5 0 -40.554
4 16 6.5 0 40.554 8 0 39.054 8 0 -39.054 6.5 0 -40.554
0 // Lateral faces
3 16 -6.5 0 40.554 -6.5 -.25 40.554 -5.45 -.25 40.554
3 16 -6.5 0 40.554 -5.45 -.25 40.554 -4.45 -.25 40.554
3 16 -6.5 0 40.554 -4.45 -.25 40.554 -3.55 -.25 40.554
3 16 -6.5 0 40.554 -3.55 -.25 40.554 -2.85 -.25 40.554
3 16 -6.5 0 40.554 -2.85 -.25 40.554 -1.95 -.25 40.554
3 16 -6.5 0 40.554 -1.95 -.25 40.554 -1.25 -.25 40.554
3 16 -6.5 0 40.554 -1.25 -.25 40.554 -.35 -.25 40.554
4 16 -6.5 0 40.554 -.35 -.25 40.554 .35 -.25 40.554 6.5 0 40.554
3 16 6.5 0 40.554 .35 -.25 40.554 1.25 -.25 40.554
3 16 6.5 0 40.554 1.25 -.25 40.554 1.95 -.25 40.554
3 16 6.5 0 40.554 1.95 -.25 40.554 2.85 -.25 40.554
3 16 6.5 0 40.554 2.85 -.25 40.554 3.55 -.25 40.554
3 16 6.5 0 40.554 3.55 -.25 40.554 4.45 -.25 40.554
3 16 6.5 0 40.554 4.45 -.25 40.554 5.45 -.25 40.554
3 16 6.5 0 40.554 5.45 -.25 40.554 6.5 -.25 40.554
3 16 -8 0 39.054 -8 -.25 35.9494 -8 -.25 39.054
3 16 8 0 39.054 8 -.25 39.054 8 -.25 35.9494
3 16 -8 0 39.054 -8 -.25 29.0866 -8 -.25 35.9494
3 16 8 0 39.054 8 -.25 35.9494 8 -.25 29.0866
3 16 -8 0 39.054 -8 -.25 22.0129 -8 -.25 29.0866
3 16 8 0 39.054 8 -.25 29.0866 8 -.25 22.0129
3 16 -8 0 39.054 -8 -.25 14.7717 -8 -.25 22.0129
3 16 8 0 39.054 8 -.25 22.0129 8 -.25 14.7717
3 16 -8 0 39.054 -8 -.25 7.416 -8 -.25 14.7717
3 16 8 0 39.054 8 -.25 14.7717 8 -.25 7.416
3 16 -8 0 39.054 -8 -.25 0 -8 -.25 7.416
3 16 8 0 39.054 8 -.25 7.416 8 -.25 0
3 16 -8 0 39.054 -8 0 -39.054 -8 -.25 0
3 16 8 0 39.054 8 -.25 0 8 0 -39.054
3 16 -8 0 -39.054 -8 -.25 -7.416 -8 -.25 0
3 16 8 0 -39.054 8 -.25 0 8 -.25 -7.416
3 16 -8 0 -39.054 -8 -.25 -14.7717 -8 -.25 -7.416
3 16 8 0 -39.054 8 -.25 -7.416 8 -.25 -14.7717
3 16 -8 0 -39.054 -8 -.25 -22.0129 -8 -.25 -14.7717
3 16 8 0 -39.054 8 -.25 -14.7717 8 -.25 -22.0129
3 16 -8 0 -39.054 -8 -.25 -29.0866 -8 -.25 -22.0129
3 16 8 0 -39.054 8 -.25 -22.0129 8 -.25 -29.0866
3 16 -8 0 -39.054 -8 -.25 -35.9494 -8 -.25 -29.0866
3 16 8 0 -39.054 8 -.25 -29.0866 8 -.25 -35.9494
3 16 -8 0 -39.054 -8 -.25 -39.054 -8 -.25 -35.9494
3 16 8 0 -39.054 8 -.25 -35.9494 8 -.25 -39.054
3 16 -6.5 0 -40.554 -5.45 -.25 -40.554 -6.5 -.25 -40.554
3 16 -6.5 0 -40.554 -4.45 -.25 -40.554 -5.45 -.25 -40.554
3 16 -6.5 0 -40.554 -3.55 -.25 -40.554 -4.45 -.25 -40.554
3 16 -6.5 0 -40.554 -2.85 -.25 -40.554 -3.55 -.25 -40.554
3 16 -6.5 0 -40.554 -1.95 -.25 -40.554 -2.85 -.25 -40.554
3 16 -6.5 0 -40.554 -1.25 -.25 -40.554 -1.95 -.25 -40.554
3 16 -6.5 0 -40.554 -.35 -.25 -40.554 -1.25 -.25 -40.554
4 16 -6.5 0 -40.554 6.5 0 -40.554 .35 -.25 -40.554 -.35 -.25 -40.554
3 16 6.5 0 -40.554 1.25 -.25 -40.554 .35 -.25 -40.554
3 16 6.5 0 -40.554 1.95 -.25 -40.554 1.25 -.25 -40.554
3 16 6.5 0 -40.554 2.85 -.25 -40.554 1.95 -.25 -40.554
3 16 6.5 0 -40.554 3.55 -.25 -40.554 2.85 -.25 -40.554
3 16 6.5 0 -40.554 4.45 -.25 -40.554 3.55 -.25 -40.554
3 16 6.5 0 -40.554 5.45 -.25 -40.554 4.45 -.25 -40.554
3 16 6.5 0 -40.554 6.5 -.25 -40.554 5.45 -.25 -40.554
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-10-29 21:40:02
2022-05-23 19:30:01
2022-05-28 12:55:01
2022-07-08 01:34:15
2022-07-25 14:30:06
2022-11-05 13:10:01
This is the same as:
6142271is09.dat
We should avoid multiple copies of the same geometry.
6142271is09.dat
We should avoid multiple copies of the same geometry.
2022-11-06 15:00:01
I agree with you, but for now we have made that each set of stickers is independent of the other, doubling some subparts (for example the bottom faces of the stickers applied to 11477).
You launched the idea of making them primitives,... indicating length and width and the part on which to apply them.
This could be done, but, in my opinion, it shoud be added the radius of the chamfer in the description.
You launched the idea of making them primitives,... indicating length and width and the part on which to apply them.
This could be done, but, in my opinion, it shoud be added the radius of the chamfer in the description.
2023-04-12 09:06:16
2023-08-19 22:15:52
2023-08-25 01:30:58
Release 2023-04
