Official File parts/2626.dat
Part Attributes:
File Header:

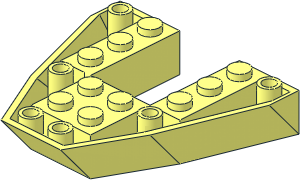

0 Boat Base 6 x 6
0 Name: 2626.dat
0 Author: Jaco van der Molen [Jaco]
0 !LDRAW_ORG Part UPDATE 2010-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1997-10-29 [PTadmin] Official Update 1997-16
0 !HISTORY 1998-05-21 [PTadmin] Official Update 1998-05
0 !HISTORY 2007-05-17 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-04-03 [tchang] Add BFC, build inner part, rebuild open stud
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
Show contents
0 // BOTTOM
3 16 40 24 0 40 24 60 60 24 60
3 16 40 24 0 20 24 -40 20 24 0
3 16 -20 24 -40 -40 24 0 -20 24 0
