Official File parts/26287.dat
Part Attributes:
File Header:

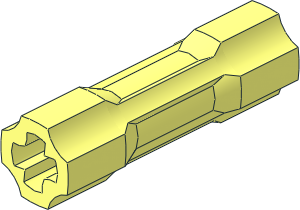

0 Technic Axle Joiner 3L
0 Name: 26287.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2016-12-31 [PTadmin] Official Update 2016-01
0 !HISTORY 2021-10-30 [Philo] Subparted for variant
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\26287s02.dat
1 16 -4.447 0 -30 12.946 0 2.575 3.444 0 -17.314 0 15 0 48\1-16cylo.dat
1 16 -4.447 0 -30 12.946 0 2.575 3.444 0 -17.314 0 1 0 48\1-16chrd.dat
3 16 8.4992 3.4442 -15 6.3748 2.6405 -10 6.9002 0 -10
3 16 8.4992 3.4442 -15 6.9002 0 -10 8.7237 1.1549 -15
3 16 6.9002 0 -10 8.724 -1.1543 -15 8.7237 1.1549 -15
3 16 8.724 -1.1543 -15 6.9002 0 -10 8.4993 -3.4442 -15
3 16 8.4993 -3.4442 -15 6.9002 0 -10 6.3747 -2.6405 -10
5 24 8.4993 -3.4442 -15 6.3747 -2.6405 -10 6.8103 -4.0746 -12.5684 6.9002 0 -10
5 24 6.9002 0 -10 8.724 -1.1543 -15 8.7237 1.1549 -15 8.4993 -3.4442 -15
5 24 6.3748 2.6405 -10 8.4992 3.4442 -15 6.8103 4.0746 -12.5684 6.9002 0 -10
5 24 6.9002 0 -10 8.4992 3.4442 -15 6.3748 2.6405 -10 8.7237 1.1549 -15
5 24 8.7237 1.1549 -15 6.9002 0 -10 8.724 -1.1543 -15 8.4992 3.4442 -15
5 24 6.9002 0 -10 8.4993 -3.4442 -15 8.724 -1.1543 -15 6.3747 -2.6405 -10
1 16 4.447 0 -30 -12.946 0 -2.575 3.444 0 -17.314 0 15 0 48\1-16cylo.dat
1 16 4.447 0 -30 -12.946 0 -2.575 3.444 0 -17.314 0 1 0 48\1-16chrd.dat
3 16 -6.3748 2.6405 -10 -8.4992 3.4442 -15 -6.9002 0 -10
3 16 -6.9002 0 -10 -8.4992 3.4442 -15 -8.7237 1.1549 -15
3 16 -8.724 -1.1543 -15 -6.9002 0 -10 -8.7237 1.1549 -15
3 16 -6.9002 0 -10 -8.724 -1.1543 -15 -8.4993 -3.4442 -15
3 16 -6.9002 0 -10 -8.4993 -3.4442 -15 -6.3747 -2.6405 -10
5 24 -8.4993 -3.4442 -15 -6.3747 -2.6405 -10 -6.8103 -4.0746 -12.5684 -6.9002 0 -10
5 24 -6.9002 0 -10 -8.724 -1.1543 -15 -8.7237 1.1549 -15 -8.4993 -3.4442 -15
5 24 -6.3748 2.6405 -10 -8.4992 3.4442 -15 -6.8103 4.0746 -12.5684 -6.9002 0 -10
5 24 -6.9002 0 -10 -8.4992 3.4442 -15 -6.3748 2.6405 -10 -8.7237 1.1549 -15
5 24 -8.7237 1.1549 -15 -6.9002 0 -10 -8.724 -1.1543 -15 -8.4992 3.4442 -15
5 24 -6.9002 0 -10 -8.4993 -3.4442 -15 -8.724 -1.1543 -15 -6.3747 -2.6405 -10
1 16 -4.447 0 30 12.946 0 2.575 3.444 0 -17.314 0 -15 0 48\1-16cylo.dat
1 16 -4.447 0 30 12.946 0 2.575 3.444 0 -17.314 0 -1 0 48\1-16chrd.dat
3 16 6.3748 2.6405 10 8.4992 3.4442 15 6.9002 0 10
3 16 6.9002 0 10 8.4992 3.4442 15 8.7237 1.1549 15
3 16 8.724 -1.1543 15 6.9002 0 10 8.7237 1.1549 15
3 16 6.9002 0 10 8.724 -1.1543 15 8.4993 -3.4442 15
3 16 6.9002 0 10 8.4993 -3.4442 15 6.3747 -2.6405 10
5 24 8.4993 -3.4442 15 6.3747 -2.6405 10 6.8103 -4.0746 12.5684 6.9002 0 10
5 24 6.9002 0 10 8.724 -1.1543 15 8.7237 1.1549 15 8.4993 -3.4442 15
5 24 6.3748 2.6405 10 8.4992 3.4442 15 6.8103 4.0746 12.5684 6.9002 0 10
5 24 6.9002 0 10 8.4992 3.4442 15 6.3748 2.6405 10 8.7237 1.1549 15
5 24 8.7237 1.1549 15 6.9002 0 10 8.724 -1.1543 15 8.4992 3.4442 15
5 24 6.9002 0 10 8.4993 -3.4442 15 8.724 -1.1543 15 6.3747 -2.6405 10
1 16 4.447 0 30 -12.946 0 -2.575 3.444 0 -17.314 0 -15 0 48\1-16cylo.dat
1 16 4.447 0 30 -12.946 0 -2.575 3.444 0 -17.314 0 -1 0 48\1-16chrd.dat
3 16 -8.4992 3.4442 15 -6.3748 2.6405 10 -6.9002 0 10
3 16 -8.4992 3.4442 15 -6.9002 0 10 -8.7237 1.1549 15
3 16 -6.9002 0 10 -8.724 -1.1543 15 -8.7237 1.1549 15
3 16 -8.724 -1.1543 15 -6.9002 0 10 -8.4993 -3.4442 15
3 16 -8.4993 -3.4442 15 -6.9002 0 10 -6.3747 -2.6405 10
5 24 -8.4993 -3.4442 15 -6.3747 -2.6405 10 -6.8103 -4.0746 12.5684 -6.9002 0 10
5 24 -6.9002 0 10 -8.724 -1.1543 15 -8.7237 1.1549 15 -8.4993 -3.4442 15
5 24 -6.3748 2.6405 10 -8.4992 3.4442 15 -6.8103 4.0746 12.5684 -6.9002 0 10
5 24 -6.9002 0 10 -8.4992 3.4442 15 -6.3748 2.6405 10 -8.7237 1.1549 15
5 24 -8.7237 1.1549 15 -6.9002 0 10 -8.724 -1.1543 15 -8.4992 3.4442 15
5 24 -6.9002 0 10 -8.4993 -3.4442 15 -8.724 -1.1543 15 -6.3747 -2.6405 10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-10-30 16:55:02
2021-10-30 22:55:01
2021-10-31 19:05:01
2023-04-14 01:29:56
2023-04-17 04:55:52
Release 2023-02
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
