File Detail parts/s/6156s01.dat

Official File parts/s/6156s01.dat

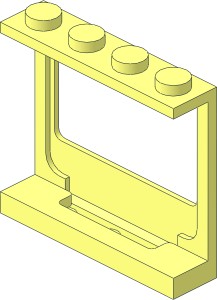

~Panel 1 x 4 x 3 with Fixed Glass - Frame

File Header:

0 ~Panel  1 x  4 x  3 with Fixed Glass - Frame
0 Name: s\6156s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Subpart UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04

Show contents

1 16 30 7 10 0 0 3 -3 0 0 0 -1 0 1-4ndis.dat
1 16 -30 7 10 0 0 -3 -3 0 0 0 -1 0 1-4ndis.dat
1 16 30 45 10 0 0 3 3 0 0 0 -1 0 1-4ndis.dat
1 16 -30 45 10 0 0 -3 3 0 0 0 -1 0 1-4ndis.dat
4 16 -30 48 10 30 48 10 40 72 10 -40 72 10
3 16 -33 48 10 -30 48 10 -40 72 10
3 16 -33 45 10 -33 48 10 -40 72 10
4 16 -33 7 10 -33 45 10 -40 72 10 -40 0 10
3 16 33 48 10 33 45 10 40 72 10
3 16 30 48 10 33 48 10 40 72 10
4 16 40 72 10 33 45 10 33 7 10 40 0 10
4 16 40 0 10 30 4 10 -30 4 10 -40 0 10
3 16 33 4 10 30 4 10 40 0 10
3 16 33 7 10 33 4 10 40 0 10
3 16 -33 4 10 -33 7 10 -40 0 10
3 16 -30 4 10 -33 4 10 -40 0 10

0 // Panel 1 x 4 x 3 without front
1 16 -20 72 0 2 0 0 0 -1 0 0 0 2 4-4ring1.dat
1 16 -20 72 0 4 0 0 0 -4 0 0 0 4 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -20 68 0 0 0 2 0 4 0 -2 0 0 3-4cyli.dat
1 16 -20 68 0 0 0 2 0 1 0 -2 0 0 3-4edge.dat
0 BFC INVERTNEXT
1 16 -20 64 0 -2 0 0 0 8 0 0 0 -2 1-4cyli.dat

1 16 -20 64 0 -2 0 0 0 1 0 0 0 -2 1-4ndis.dat
1 16 -24 64 4 2 0 0 0 4 0 0 0 2 1-4cyli.dat
1 16 -24 64 4 2 0 0 0 1 0 0 0 2 1-4chrd.dat
1 16 -24 68 4 2 0 0 0 -1 0 0 0 2 1-4chrd.dat
1 16 24 64 4 -2 0 0 0 4 0 0 0 2 1-4cyli.dat
1 16 24 64 4 -2 0 0 0 1 0 0 0 2 1-4chrd.dat
1 16 24 68 4 -2 0 0 0 -1 0 0 0 2 1-4chrd.dat
1 16 0 72 0 2 0 0 0 -1 0 0 0 2 4-4ring1.dat
1 16 0 72 0 4 0 0 0 -4 0 0 0 4 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 68 0 2 0 0 0 4 0 0 0 2 4-4cyli.dat
1 16 0 68 0 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 20 72 0 2 0 0 0 -1 0 0 0 2 4-4ring1.dat
1 16 20 72 0 4 0 0 0 -4 0 0 0 4 4-4cylo.dat
0 BFC INVERTNEXT
1 16 20 68 0 2 0 0 0 4 0 0 0 2 3-4cyli.dat
1 16 20 68 0 2 0 0 0 1 0 0 0 2 3-4edge.dat

0 BFC INVERTNEXT
1 16 20 64 0 0 0 2 0 8 0 -2 0 0 1-4cyli.dat
1 16 20 64 0 0 0 2 0 1 0 -2 0 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -30 4 0 -3 0 0 0 -2 0 0 0 -3 1-4cyli.dat
1 16 -30 2 0 -3 0 0 0 -1 0 0 0 -3 1-4edge.dat
1 16 -30 4 0 -3 0 0 0 -1 0 0 0 -3 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -30 2 0 -3 0 0 0 1 0 0 0 -3 bump5000.dat
1 16 -30 2 0 0 0 3 0 -1 0 -3 0 0 3-4ndis.dat

0 BFC INVERTNEXT
1 16 30 4 0 3 0 0 0 -2 0 0 0 -3 1-4cyli.dat
1 16 30 2 0 3 0 0 0 -1 0 0 0 -3 1-4edge.dat
1 16 30 4 0 3 0 0 0 -1 0 0 0 -3 1-4ndis.dat
0 BFC INVERTNEXT
1 16 30 2 0 0 0 -3 0 1 0 -3 0 0 bump5000.dat
1 16 30 2 0 0 0 -3 0 -1 0 -3 0 0 3-4ndis.dat
2 24 33 2 6 33 4 8
2 24 -33 2 6 -33 4 8
2 24 -16.618 68 -2 -20 68 -2
2 24 3.382 68 -2 -3.382 68 -2
2 24 20 68 -2 16.618 68 -2
0 BFC INVERTNEXT
1 16 -10 2 0 -3 0 0 0 1 0 0 0 -3 bump5000.dat
1 16 -10 2 0 0 0 3 0 -1 0 -3 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 10 2 0 0 0 -3 0 1 0 -3 0 0 bump5000.dat
1 16 10 2 0 0 0 -3 0 -1 0 -3 0 0 4-4ndis.dat
3 16 33 2 6 33 2 3 27 2 3
4 16 27 2 -3 13 2 -3 13 2 3 27 2 3
4 16 -7 2 3 7 2 3 7 2 -3 -7 2 -3
4 16 -13 2 3 -13 2 -3 -27 2 -3 -27 2 3
3 16 -33 2 3 -33 2 6 -27 2 3
3 16 -27 2 3 -33 2 6 -13 2 3
3 16 -13 2 3 -33 2 6 -7 2 3
3 16 33 2 6 27 2 3 13 2 3
3 16 33 2 6 13 2 3 7 2 3
4 16 33 2 6 7 2 3 -7 2 3 -33 2 6

0 BFC INVERTNEXT
1 16 30 7 10 0 0 3 -3 0 0 0 -2 0 1-4cyli.dat
1 16 30 7 8 0 0 3 -3 0 0 0 -1 0 1-4edge.dat
1 16 30 7 8 0 0 3 -3 0 0 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 33 7 8 0 0 2 -3 0 0 0 -2 0 1-4cyli.dat
1 16 33 7 8 0 0 2 -3 0 0 0 1 0 1-4edge.dat
1 16 33 7 6 0 0 2 -3 0 0 0 1 0 1-4ndis.dat
1 16 33 7 8 0 0 2 -3 0 0 0 1 0 1-4chrd.dat
3 16 33 4 8 33 7 8 35 7 8
0 BFC INVERTNEXT
1 16 -30 7 10 0 0 -3 -3 0 0 0 -2 0 1-4cyli.dat
1 16 -30 7 8 0 0 -3 -3 0 0 0 1 0 1-4edge.dat

1 16 -30 7 8 0 0 -3 -3 0 0 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -33 7 8 0 0 -2 -3 0 0 0 -2 0 1-4cyli.dat
1 16 -33 7 8 0 0 -2 -3 0 0 0 1 0 1-4edge.dat
1 16 -33 7 6 0 0 -2 -3 0 0 0 1 0 1-4ndis.dat
1 16 -33 7 8 0 0 -2 -3 0 0 0 1 0 1-4chrd.dat
3 16 -33 7 8 -33 4 8 -35 7 8
0 BFC INVERTNEXT
1 16 30 45 10 0 0 3 3 0 0 0 -2 0 1-4cyli.dat
1 16 30 45 8 0 0 3 3 0 0 0 1 0 1-4edge.dat
1 16 30 45 8 0 0 3 3 0 0 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -30 45 10 0 0 -3 3 0 0 0 -2 0 1-4cyli.dat
1 16 -30 45 8 0 0 -3 3 0 0 0 1 0 1-4edge.dat
1 16 -30 45 8 0 0 -3 3 0 0 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -29 54 8 0 0 -6 6 0 0 0 -2 0 1-4cyli.dat
1 16 -29 54 8 0 0 -6 6 0 0 0 1 0 1-4edge.dat
1 16 -29 54 6 0 0 -6 6 0 0 0 1 0 1-4ndis.dat
1 16 -29 54 8 0 0 -6 6 0 0 0 1 0 1-4chrd.dat
0 BFC INVERTNEXT
1 16 29 54 8 0 0 6 6 0 0 0 -2 0 1-4cyli.dat
1 16 29 54 8 0 0 6 6 0 0 0 1 0 1-4edge.dat
1 16 29 54 6 0 0 6 6 0 0 0 1 0 1-4ndis.dat
1 16 29 54 8 0 0 6 6 0 0 0 1 0 1-4chrd.dat

0 BFC INVERTNEXT
1 16 0 72 0 36 0 0 0 -4 0 0 0 6 box4.dat
4 16 40 72 10 36 72 6 -36 72 6 -40 72 10
4 16 -40 72 10 -36 72 6 -36 72 -6 -40 72 -10
4 16 -40 72 -10 -36 72 -6 36 72 -6 40 72 -10
4 16 40 72 -10 36 72 -6 36 72 6 40 72 10
2 24 40 72 10 -40 72 10
2 24 -40 72 10 -40 72 -10
2 24 -40 72 -10 40 72 -10
2 24 40 72 -10 40 72 10
2 24 -40 64 6 -40 64 -10
2 24 -40 64 -10 40 64 -10
2 24 40 64 -10 40 64 6
2 24 40 4 6 33 4 6
2 24 -40 4 6 -33 4 6
2 24 -40 4 6 -40 4 -10
2 24 40 4 -10 40 4 6
2 24 40 4 6 40 64 6
2 24 -40 4 6 -40 64 6
2 24 40 64 -10 40 72 -10
2 24 -40 64 -10 -40 72 -10
2 24 40 0 10 40 72 10
2 24 -40 0 10 -40 72 10
4 16 -40 72 10 -40 72 -10 -40 64 -10 -40 64 6
4 16 -40 72 -10 40 72 -10 40 64 -10 -40 64 -10
4 16 40 72 -10 40 72 10 40 64 6 40 64 -10
4 16 -40 72 10 -40 64 6 -40 4 6 -40 0 10
4 16 40 64 6 40 72 10 40 0 10 40 4 6
4 16 -40 4 6 -40 4 -10 -40 0 -10 -40 0 10
1 16 0 2 0 40 0 0 0 -2 0 0 0 -10 box2-5.dat

0 // inside
2 24 26 64 6 26 68 6
2 24 -26 64 6 -26 68 6
3 16 35 4 6 35 7 6 40 4 6
3 16 -35 7 6 -35 4 6 -40 4 6
4 16 -35 54 6 -35 7 6 -40 4 6 -40 64 6
3 16 -35 60 6 -35 54 6 -40 64 6
3 16 -29 60 6 -35 60 6 -40 64 6
4 16 -29 60 6 -40 64 6 -26 64 6 -26 60 6
4 16 26 60 6 26 64 6 40 64 6 29 60 6
3 16 35 60 6 29 60 6 40 64 6
3 16 35 54 6 35 60 6 40 64 6
4 16 35 7 6 35 54 6 40 64 6 40 4 6

0 // bottom
2 24 -40 64 6 -24 64 6
2 24 24 64 6 40 64 6
4 16 22 64 0 40 64 -10 40 64 6 24 64 6
3 16 22 64 0 22 64 -2 40 64 -10
3 16 22 64 4 22 64 0 24 64 6
3 16 -24 64 6 -40 64 6 -40 64 -10
3 16 -22 64 0 -22 64 4 -24 64 6
3 16 -40 64 -10 -22 64 -2 -22 64 0
3 16 -22 64 0 -24 64 6 -40 64 -10
3 16 -20 64 -2 -22 64 -2 -40 64 -10
4 16 -40 64 -10 40 64 -10 22 64 -2 -20 64 -2
4 16 40 4 -10 40 4 6 40 0 10 40 0 -10

0 // top
4 16 -33 4 0 -40 4 -10 -40 4 6 -33 4 6
4 16 40 4 -10 33 4 0 33 4 6 40 4 6
3 16 33 4 -3 33 4 0 40 4 -10
3 16 30 4 -3 33 4 -3 40 4 -10
3 16 -33 4 -3 -30 4 -3 -40 4 -10
3 16 -33 4 0 -33 4 -3 -40 4 -10
4 16 -30 4 -3 30 4 -3 40 4 -10 -40 4 -10
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-4x1.dat

4 16 30 4 -3 -30 4 -3 -30 2 -3 30 2 -3
4 16 33 2 0 33 2 6 33 4 6 33 4 0
3 16 33 4 8 33 4 6 33 2 6
3 16 -33 2 6 -33 4 6 -33 4 8
4 16 -33 2 6 -33 2 0 -33 4 0 -33 4 6
4 16 -33 45 8 -33 7 8 -35 7 8 -35 54 8
3 16 -35 54 8 -29 60 8 -33 48 8
3 16 -33 48 8 -33 45 8 -35 54 8
4 16 -26 60 8 -30 48 8 -33 48 8 -29 60 8
4 16 35 7 8 33 7 8 33 45 8 35 54 8
3 16 33 48 8 29 60 8 35 54 8
3 16 35 54 8 33 45 8 33 48 8
4 16 33 48 8 30 48 8 26 60 8 29 60 8
4 16 -33 2 6 -33 4 8 33 4 8 33 2 6
4 16 30 4 10 30 4 8 -30 4 8 -30 4 10
2 24 -33 4 8 33 4 8

4 16 29 60 8 26 60 8 26 60 6 29 60 6
4 16 26 60 8 26 66 8 26 68 6 26 60 6
4 16 35 7 8 35 54 8 35 54 6 35 7 6
4 16 -26 60 6 -26 60 8 -29 60 8 -29 60 6
4 16 -35 54 6 -35 54 8 -35 7 8 -35 7 6
4 16 -26 68 6 -26 66 8 -26 60 8 -26 60 6
4 16 22 64 4 22 68 4 22 68 0 22 64 0
4 16 -22 64 4 -22 64 0 -22 68 0 -22 68 4
4 16 -20 68 -2 -20 64 -2 20 64 -2 20 68 -2
4 16 -26 66 8 -26 68 6 26 68 6 26 66 8
4 16 33 7 10 33 45 10 33 45 8 33 7 8
4 16 30 48 10 -30 48 10 -30 48 8 30 48 8
4 16 -33 45 10 -33 7 10 -33 7 8 -33 45 8
4 16 -26 60 8 -26 66 8 26 66 8 26 60 8
4 16 -26 60 8 26 60 8 30 48 8 -30 48 8
4 16 -36 68 -6 -36 68 6 -24 68 6 -22 68 4
4 16 -26 68 6 -26 64 6 -24 64 6 -24 68 6

3 16 -22 68 4 -22 68 -2 -36 68 -6
4 16 24 68 6 36 68 6 36 68 -6 22 68 4
3 16 22 68 -2 22 68 4 36 68 -6
4 16 -22 68 -2 22 68 -2 36 68 -6 -36 68 -6
4 16 24 68 6 24 64 6 26 64 6 26 68 6

1 16 0 68 0 2 0 0 0 1 0 0 0 2 4-4ring1.dat
1 16 20 68 0 0 0 -2 0 1 0 -2 0 0 3-4ring1.dat
1 16 -20 68 0 0 0 2 0 1 0 -2 0 0 3-4ring1.dat
2 24 26 60 8 29 60 8
2 24 -26 60 6 -26 60 8
2 24 -26 68 6 -26 66 8
2 24 33 7 8 33 45 8
2 24 -35 7 8 -35 54 8
2 24 26 66 8 -26 66 8
2 24 -29 60 8 -26 60 8
2 24 -33 45 8 -33 7 8
2 24 33 2 6 33 2 0
2 24 30 48 8 -30 48 8
2 24 -33 2 0 -33 2 6
2 24 33 4 6 33 4 8
2 24 -33 4 8 -33 4 6
2 24 26 66 8 26 68 6
2 24 26 60 8 26 66 8
2 24 22 68 0 22 68 3.382
2 24 -33 2 6 33 2 6
2 24 -26 66 8 -26 60 8
2 24 26 60 8 26 60 6
2 24 35 54 8 35 7 8
2 24 -22 68 3.382 -22 68 0
2 24 30 2 -3 -30 2 -3

0 // added edge lines
1 16 -30 45 10 0 0 -3 3 0 0 0 -1 0 1-4edge.dat
1 16 -30 7 10 0 0 -3 -3 0 0 0 -1 0 1-4edge.dat
1 16 30 45 10 0 0 3 3 0 0 0 -1 0 1-4edge.dat
1 16 30 7 10 0 0 3 -3 0 0 0 -1 0 1-4edge.dat
2 24 33 7 10 33 45 10
2 24 30 48 10 -30 48 10
2 24 -33 45 10 -33 7 10
2 24 -30 4 10 30 4 10
1 16 33 7 6 0 0 2 -3 0 0 0 1 0 1-4edge.dat
1 16 29 54 6 0 0 6 6 0 0 0 1 0 1-4edge.dat
1 16 -33 7 6 0 0 -2 -3 0 0 0 1 0 1-4edge.dat
1 16 -29 54 6 0 0 -6 6 0 0 0 1 0 1-4edge.dat
2 24 -35 54 6 -35 7 6
2 24 -29 60 6 -26 60 6
2 24 -26 60 6 -26 64 6
2 24 26 64 6 26 60 6
2 24 26 60 6 29 60 6
2 24 35 54 6 35 7 6
1 16 24 64 4 -2 0 0 0 1 0 0 0 2 1-4edge.dat
1 16 20 64 0 0 0 2 0 1 0 -2 0 0 1-4edge.dat
1 16 -24 64 4 2 0 0 0 1 0 0 0 2 1-4edge.dat
1 16 -20 64 0 0 0 -2 0 1 0 -2 0 0 1-4edge.dat
2 24 -22 64 4 -22 64 0
2 24 -20 64 -2 20 64 -2
2 24 22 64 4 22 64 0
1 16 30 4 0 3 0 0 0 -1 0 0 0 -3 1-4edge.dat
1 16 -30 4 0 -3 0 0 0 -1 0 0 0 -3 1-4edge.dat
2 24 33 4 6 33 4 0
2 24 30 4 -3 -30 4 -3
2 24 -33 4 6 -33 4 0
1 16 -24 68 4 2 0 0 0 -1 0 0 0 2 1-4edge.dat
1 16 24 68 4 -2 0 0 0 -1 0 0 0 2 1-4edge.dat
2 24 22 68 4 22 68 3.382
2 24 16.618 68 -2 3.382 68 -2
2 24 -3.382 68 -2 -16.618 68 -2
2 24 -22 68 3.382 -22 68 4
1 16 0 72 0 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 20 72 0 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 -20 72 0 2 0 0 0 1 0 0 0 2 4-4edge.dat
