Official File parts/2636.dat
Part Attributes:
File Header:

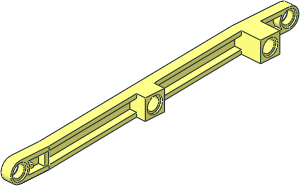

0 Crane Harbour Derrick 16
0 Name: 2636.dat
0 Author: Luis E. Fernandez [lfernand]
0 !LDRAW_ORG Part UPDATE 2016-01
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1998-02-12 [PTadmin] Official Update 1998-02
0 !HISTORY 2007-05-17 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-11-21 [roland] Auto-corrected with libfix version of LDCad 1.4
0 !HISTORY 2016-01-09 [MMR1988] BFC'ed, partly rewritten
0 !HISTORY 2016-12-31 [PTadmin] Official Update 2016-01
Show contents
1 16 -10 -10 -150 0 1 0 -1 0 0 0 0 1 peghole.dat
1 16 -10 -10 -150 0 1 0 -2 0 0 0 0 2 4-4ring4.dat
1 16 -10 -10 -150 0 1 0 10 0 0 0 0 10 2-4ndis.dat
4 16 -10 -10 -140 -10 -10 -120 -10 0 -120 -10 0 -140
4 16 -10 -20 -140 -10 -20 -120 -10 -10 -120 -10 -10 -140
1 16 -30 -10 150 0 1 0 1 0 0 0 0 -1 peghole.dat
1 16 -30 -10 150 0 1 0 2 0 0 0 0 -2 4-4ring4.dat
1 16 -30 -10 150 0 1 0 -10 0 0 0 0 -10 2-4ndis.dat
4 16 -30 0 140 -30 0 120 -30 -10 120 -30 -10 140
4 16 -30 -10 140 -30 -10 120 -30 -20 120 -30 -20 140
0 BFC INVERTNEXT
1 16 -19.27273 -10 -10 0 -0.72727 0 0 0 8 -8 0 0 4-4cylse.dat
1 16 -18 -10 -10 0 1 0 -8 0 0 0 0 8 4-4edge.dat
1 16 -18 -10 -10 0 1 0 -6 0 0 0 0 6 4-4edge.dat
1 16 -18 -10 -10 0 1 0 -2 0 0 0 0 2 4-4ring3.dat
0 BFC INVERTNEXT
1 16 -19.27273 -10 -10 0 1.27273 0 -8 0 0 0 0 8 4-4cyli.dat
1 16 -20 -10 -10 0 1 -0.90909 10 0 0 0 0 10 4-4ndis.dat
1 16 -20 -10 -10 0 1 -0.181818 -2 0 0 0 0 2 4-4ring4.dat
1 16 -18 -10 110 0 1 0 -6 0 0 0 0 6 4-4edge.dat
1 16 -18 -10 110 0 1 0 -2 0 0 0 0 2 4-4ring3.dat
1 16 -30 -10 110 0 1 0 10 0 0 0 0 10 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -30 -10 110 0 12 0 -8 0 0 0 0 -8 4-4cylo.dat
1 16 -30 -10 110 0 1 0 -2 0 0 0 0 2 4-4ring4.dat
1 16 -10 -10 -150 0 10 0 -10 0 0 0 0 -10 2-4cylo.dat
1 16 -30 -10 150 0 10 0 10 0 0 0 0 10 2-4cylo.dat
1 16 -5 -20 -135 0 0 5 0 1 0 15 0 0 rect2p.dat
1 16 -5 0 -135 0 0 5 0 -1 0 15 0 0 rect2p.dat
3 16 0 -20 -120 -9.09091 -20 -20 -10 -20 -120
4 16 -10 -20 -120 -9.09091 -20 -20 -10.90909 -20 0 -30 -20 100
3 16 -20 -20 100 -30 -20 100 -10.90909 -20 0
4 16 0 -20 -20 0 -20 0 -10.90909 -20 0 -9.09091 -20 -20
4 16 -30 -20 150 -30 -20 100 -20 -20 120 -20 -20 150
3 16 -20 -20 100 -20 -20 120 -30 -20 100
1 16 -10 -20 110 10 0 0 0 1 0 0 0 10 rect2p.dat
2 24 0 -20 0 -10.90909 -20 0
2 24 -9.09091 -20 -20 0 -20 -20
3 16 -10 0 -120 -9.09091 0 -20 0 0 -120
4 16 -30 0 100 -10.90909 0 0 -9.09091 0 -20 -10 0 -120
3 16 -10.90909 0 0 -30 0 100 -20 0 100
4 16 -9.09091 0 -20 -10.90909 0 0 0 0 0 0 0 -20
4 16 -20 0 150 -20 0 120 -30 0 100 -30 0 150
3 16 -30 0 100 -20 0 120 -20 0 100
1 16 -10 0 110 10 0 0 0 -1 0 0 0 10 rect2p.dat
2 24 0 0 0 -10.90909 0 0
2 24 -9.09091 0 -20 0 0 -20
1 16 -20 -10 150 0 -1 0 1 0 0 0 0 -1 peghole.dat
0 BFC INVERTNEXT
1 16 -28 -10 150 0 6 0 6 0 0 0 0 -6 4-4cyli.dat
1 16 -20 -10 150 0 -7 0 0 0 10 -10 0 0 1-16cylo.dat
1 16 -20 -10 150 0 -7 0 0 0 -10 -10 0 0 1-16cylo.dat
1 16 -23.5 -14.9135 141.4871 0 0 3.5 -1.0865 0 0 0.7261 1 0 rect2p.dat
1 16 -23.5 -5.0865 141.4871 0 0 3.5 1.0865 0 0 0.7261 1 0 rect2p.dat
5 24 -27 -6.173 140.761 -20 -6.173 140.761 -27 -10 140 -27 -2.929 142.929
5 24 -27 -13.827 140.761 -20 -13.827 140.761 -27 -10 140 -27 -17.071 142.929
0 BFC INVERTNEXT
1 16 -20 -10 131.1066 0 -7 0 6 0 0 0 0 -11.1066 box4-3p.dat
1 16 -20 -10 150 0 -1 0 2 0 0 0 0 2 2-4ring4.dat
1 16 -20 -10 150 0 -1 0 -0.765367 0 1.847759 -1.847759 0 -0.765367 1-8ring4.dat
1 16 -20 -10 150 0 -1 0 8 0 0 0 0 -8 1-8ndis.dat
4 16 -20 0 150 -20 -2 150 -20 -2 142 -20 0 120
4 16 -20 -4 142.2132 -20 -4 120 -20 0 120 -20 -2 142
3 16 -20 -4 142.2132 -20 -2 142 -20 -4.3432 144.3432
4 16 -20 -4 142.2132 -20 -4.3432 144.3432 -20 -6.9384 142.6088 -20 -6.173 140.761
1 16 -20 -10 150 0 -1 0 -8 0 0 0 0 -8 1-8ndis.dat
4 16 -20 -20 120 -20 -18 142 -20 -18 150 -20 -20 150
4 16 -20 -18 142 -20 -20 120 -20 -16 120 -20 -16 142.2132
3 16 -20 -15.6568 144.3432 -20 -18 142 -20 -16 142.2132
4 16 -20 -13.827 140.761 -20 -13.0616 142.6088 -20 -15.6568 144.3432 -20 -16 142.2132
2 24 -20 0 150 -20 0 120
2 24 -20 -20 150 -20 -20 120
2 24 -30 0 150 -30 0 100
2 24 -30 -20 150 -30 -20 100
1 16 0 -10 -150 0 -1 0 -1 0 0 0 0 1 peghole.dat
0 BFC INVERTNEXT
1 16 -8 -10 -150 0 6 0 -6 0 0 0 0 6 4-4cyli.dat
1 16 0 -10 -150 0 -7 0 0 0 -10 10 0 0 1-16cylo.dat
1 16 0 -10 -150 0 -7 0 0 0 10 10 0 0 1-16cylo.dat
1 16 -3.5 -5.0865 -141.4871 0 0 3.5 1.0865 0 0 -0.7261 -1 0 rect2p.dat
1 16 -3.5 -14.9135 -141.4871 0 0 3.5 -1.0865 0 0 -0.7261 -1 0 rect2p.dat
5 24 -7 -13.827 -140.761 0 -13.827 -140.761 -7 -10 -140 -7 -17.071 -142.929
5 24 -7 -6.173 -140.761 0 -6.173 -140.761 -7 -10 -140 -7 -2.929 -142.929
0 BFC INVERTNEXT
1 16 0 -10 -131.1066 0 -7 0 0 0 6 -11.1066 0 0 box3u6.dat
1 16 0 -10 -150 0 -1 0 -2 0 0 0 0 -2 2-4ring4.dat
1 16 0 -10 -150 0 -1 0 0.765367 0 -1.847759 1.847759 0 0.765367 1-8ring4.dat
1 16 0 -10 -150 0 -1 0 -8 0 0 0 0 8 1-8ndis.dat
4 16 0 -20 -150 0 -18 -150 0 -18 -142 0 -20 -120
4 16 0 -16 -142.2132 0 -16 -120 0 -20 -120 0 -18 -142
3 16 0 -16 -142.2132 0 -18 -142 0 -15.6568 -144.3432
4 16 0 -16 -142.2132 0 -15.6568 -144.3432 0 -13.0616 -142.6088 0 -13.827 -140.761
1 16 0 -10 -150 0 -1 0 8 0 0 0 0 8 1-8ndis.dat
4 16 0 0 -120 0 -2 -142 0 -2 -150 0 0 -150
4 16 0 -2 -142 0 0 -120 0 -4 -120 0 -4 -142.2132
3 16 0 -4.3432 -144.3432 0 -2 -142 0 -4 -142.2132
4 16 0 -6.173 -140.761 0 -6.9384 -142.6088 0 -4.3432 -144.3432 0 -4 -142.2132
2 24 0 -20 -150 0 -20 -120
2 24 0 0 -150 0 0 -120
1 16 -7 -10 -140 0 6.76 0 0 0 -1.5 -1.5 0 0 boxjcyl4.dat
1 16 -7 -10 -138 0 6.75 0 -1.5 0 0 0 0 2 box4-4a.dat
1 16 -7 -10 -122 0 6.5 0 -6 0 0 0 0 2 box3u2p.dat
0 BFC INVERTNEXT
1 16 -3.5 -10 -120 0 -9.09091 -3.5 -6 0 0 0 100 0 box4-5a.dat
1 16 -4.545455 -2 -70 4.545455 -1 0 0 0 2 -50 0 0 rect3.dat
1 16 -4.545455 -18 -70 4.545455 -1 0 0 0 -2 -50 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 -15.45455 -10 50 0 -7 -4.545455 -6 0 0 0 0 50 box5-2p.dat
1 16 -15.45455 -2 50 4.545455 -1 0 0 0 2 -50 0 0 rect3.dat
1 16 -15.45455 -18 50 4.545455 -1 0 0 0 -2 -50 0 0 rect3.dat
2 24 -20 -4 120 -20 0 120
2 24 -20 -16 120 -20 -20 120
3 16 0 0 120 -20 0 120 -20 -4 120
3 16 -20 -16 120 -20 -20 120 0 -20 120
4 16 -20 -4 120 -20 -16 120 0 -20 120 0 0 120
3 16 -20 -4 100 -20 0 100 0 0 100
3 16 0 -20 100 -20 -20 100 -20 -16 100
4 16 0 0 100 0 -20 100 -20 -16 100 -20 -4 100
1 16 0 -10 110 0 -1 0 -2 0 0 0 0 2 4-4ring4.dat
1 16 0 -10 110 0 -1 0 10 0 0 0 0 10 4-4ndis.dat
1 16 0 -10 110 0 -1 0 -1 0 0 0 0 1 peghole.dat
0 BFC INVERTNEXT
1 16 -18 -10 110 0 16 0 -6 0 0 0 0 6 4-4cyli.dat
1 16 0 -10 110 0 -1 0 10 0 0 0 0 10 recte4.dat
3 16 -10.90909 -16 0 -10.90909 -20 0 0 -20 0
4 16 0 -20 0 0 0 0 -10.90909 -4 0 -10.90909 -16 0
3 16 0 0 0 -10.90909 0 0 -10.90909 -4 0
3 16 0 -20 -20 -9.09091 -20 -20 -9.09091 -16 -20
4 16 -9.09091 -16 -20 -9.09091 -4 -20 0 0 -20 0 -20 -20
3 16 -9.09091 -4 -20 -9.09091 0 -20 0 0 -20
1 16 0 -10 -10 0 -1 0 -2 0 0 0 0 2 4-4ring4.dat
1 16 0 -10 -10 0 -1 0 10 0 0 0 0 10 4-4ndis.dat
1 16 0 -10 -10 0 -1 0 -1 0 0 0 0 1 peghole.dat
0 BFC INVERTNEXT
1 16 -18 -10 -10 0 16 0 -6 0 0 0 0 6 4-4cyli.dat
1 16 0 -10 -10 0 -1 0 10 0 0 0 0 10 recte4.dat
4 16 -10 -20 -120 -19.09091 -20 -20 -19.09091 -10 -20 -10 -10 -120
4 16 -10 -10 -120 -19.09091 -10 -20 -19.09091 0 -20 -10 0 -120
4 16 -20.90909 -10 0 -20.90909 -20 0 -30 -20 100 -30 -10 100
4 16 -20.90909 0 0 -20.90909 -10 0 -30 -10 100 -30 0 100
1 16 -20 -10 -10 10 1 0 0 0 -10 -110 0 0 recte4.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Luis E. Fernandez
Licensed under CC BY 2.0
Edits:
LDraw.org Parts Tracker,
Roland Melkert,
Max Martin Richter,
3D View
