File Detail parts/s/65129s01.dat

Official File parts/s/65129s01.dat

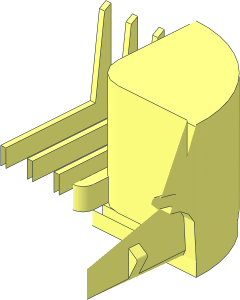

~Container 8 x 8 x 2 with Rounded Corners - Quarter

File Header:

0 ~Container  8 x  8 x  2 with Rounded Corners - Quarter
0 Name: s\65129s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

0 // Corner Cavity
1 16 0 40 0 1 0 0 0 1 0 0 0 1 s\65129s02.dat
1 16 0 40 0 0 0 1 0 1 0 1 0 0 s\65129s02.dat

1 16 20 4 20 1 0 0 0 -11 0 0 0 1 stud4.dat

3 16 0 48 40 4 48 36 0 48 36
4 16 4 48 36 4 48 16 0 48 20 0 48 36
3 16 0 48 16 0 48 20 4 48 16
3 16 -4 48 16 0 48 20 0 48 16
3 16 -4 48 16 0 48 16 0 48 4
3 16 -4 48 16 0 48 4 0 48 0
4 16 36 48 4 40 48 0 0 48 0 0 48 4
2 24 4 48 36 4 48 16
2 24 40 48 0 0 48 0
2 24 36 48 4 0 48 4
1 16 -10 45.5 38 -10 0 0 0 2.5 0 0 0 2 box3-9a.dat

1 16 10 43 10 -6 0 0 0 -1 0 0 0 -6 1-4ndis.dat
0 BFC INVERTNEXT
1 16 2 45.5 10 0 -2 0 2.5 0 0 0 0 6 box2-5.dat
4 16 4 43 11.5 0 43 11.5 0 43 16 4 43 16
4 16 0 43 4 0 43 8.5 4 43 10 4 43 4
1 16 2 43 10 0 0 2 0 4.5 0 -1.5 0 0 box4-2p.dat
2 24 0 43 4 4 43 4
2 24 4 43 4 10 43 4
2 24 4 43 10 4 43 8.5
2 24 4 43 11.5 4 43 16

0 BFC INVERTNEXT
1 16 10 4 10 -6 0 0 0 39 0 0 0 -6 1-4cylo.dat
4 16 0 48 4 0 43 4 10 43 4 36 48 4
4 16 4 4 10 4 43 10 4 43 16 4 4 36
4 16 4 4 36 4 43 16 4 48 16 4 48 36
4 16 10 43 4 10 4 4 36 4 4 36 48 4
1 16 10 4 10 -6 0 0 0 -1 0 0 0 -6 1-4chrd.dat
4 16 10 4 4 4 4 10 4 4 36 36 4 4
4 16 4 4 36 9.3163 4 34.7719 34.7719 4 9.3163 36 4 4
3 16 25.455 4 25.4556 34.7719 4 9.3163 9.3163 4 34.7719
2 24 4 4 10 4 4 36
2 24 36 4 4 10 4 4

4 16 0 0 37.5 0 0 10 10 0 0 36.5 0 0
4 16 0 0 40 0 0 37.5 36.5 0 0 40 0 0
1 16 0 0 0 40 0 0 0 43 0 0 0 40 48\1-4cyli.dat
1 16 10 0 10 -10 0 0 0 1 0 0 0 -10 1-4chrd.dat
1 16 0 0 0 40 0 0 0 1 0 0 0 40 48\1-4chrd.dat
1 16 0 0 0 40 0 0 0 1 0 0 0 40 48\1-4edge.dat

0 // Tiles Storage Area
0 BFC INVERTNEXT
1 16 -10 45.5 28 0 10 0 -2.5 0 0 0 0 8 box2-5.dat
3 16 0 43 36 0 43 20 -20 43 36

4 16 0 0 37.5 0 2 37.5 0 4 36 0 0 10
4 16 0 32 10 0 40 36 0 40 -4.5 0 32 0
3 16 0 32 -4.5 0 32 0 0 40 -4.5
4 16 0 0 10 0 4 36 0 40 36 0 32 10
2 24 0 0 37.5 0 0 10

1 16 0 32 -3.5 4 0 0 0 8 0 0 0 -4 1-4cylo.dat
1 16 0 32 -3.5 4 0 0 0 1 0 0 0 -4 1-4chrd.dat
1 16 10 32 10 -10 0 0 0 1 0 0 0 -10 1-8ndis.dat
1 16 10 32 10 -10 0 0 0 1 0 0 0 -10 1-8edge.dat
1 16 4 36 -.6434 0 -1 0 4 0 0 0 0 2.8566 rect3.dat
4 16 4 32 2.2132 2.929 32 2.929 0 32 0 4 32 -3.5
3 16 0 32 -4.5 0 32 -7.5 4 32 -3.5
3 16 0 32 0 0 32 -4.5 4 32 -3.5
2 24 0 32 0 0 32 -4.5
2 24 0 32 10 0 32 0
2 24 0 32 -4.5 0 40 -4.5
2 24 2.929 32 2.929 4 32 2.2132
1 16 10 0 10 -10 0 0 0 1 0 0 0 -10 1-4edge.dat
1 16 10 0 10 -10 0 0 0 32 0 0 0 -10 1-4cyli.dat
1 16 10 32 10 0 0 -10 0 8 0 -10 0 0 1-8cyli.dat
1 16 10 40 10 0 0 -10 0 1 0 -10 0 0 1-8edge.dat

3 16 0 43 40 -20 43 40 0 0 40

0 // Tiles Seperating Ribs
4 16 -10.25 4.5 36 -10.25 40 36 -10.25 33.5 30 -10.25 6 33.5
4 16 -8.25 4.5 36 -8.25 6 33.5 -8.25 33.5 30 -8.25 40 36
1 16 -9.25 5.25 34.75 0 0 1 .75 1 0 -1.25 0 0 rect2p.dat
4 16 -10.25 33.5 -4.5 -10.25 33.5 30 -10.25 40 36 -10.25 40 -4.5
4 16 -8.25 33.5 -4.5 -8.25 40 -4.5 -8.25 40 36 -8.25 33.5 30
1 16 -9.25 33.5 12.75 0 0 1 0 1 0 -17.25 0 0 rect2p.dat
1 16 -9.25 19.75 31.75 0 0 1 13.75 1 0 -1.75 0 0 rect.dat
1 16 -9.25 22.25 36 -1 0 0 0 0 -17.75 0 -1 0 recte3.dat
1 16 -9.25 36.75 -4.5 1 0 0 0 0 -3.25 0 1 0 recte3.dat
2 24 -8.25 40 -4.5 -8.25 40 36
2 24 -10.25 40 -4.5 -10.25 40 36

4 16 -20.5 4.5 36 -20.5 40 36 -20.5 33.5 30 -20.5 6 33.5
4 16 -18.5 4.5 36 -18.5 6 33.5 -18.5 33.5 30 -18.5 40 36
1 16 -19.5 5.25 34.75 0 0 1 .75 1 0 -1.25 0 0 rect2p.dat
4 16 -20.5 33.5 -4.5 -20.5 33.5 30 -20.5 40 36 -20.5 40 -4.5
4 16 -18.5 33.5 -4.5 -18.5 40 -4.5 -18.5 40 36 -18.5 33.5 30
1 16 -19.5 33.5 12.75 0 0 1 0 1 0 -17.25 0 0 rect2p.dat
1 16 -19.5 19.75 31.75 0 0 1 13.75 1 0 -1.75 0 0 rect.dat
1 16 -19.5 22.25 36 -1 0 0 0 0 -17.75 0 -1 0 recte3.dat
1 16 -19.5 36.75 -4.5 1 0 0 0 0 -3.25 0 1 0 recte3.dat
2 24 -18.5 40 -4.5 -18.5 40 36
2 24 -20.5 40 -4.5 -20.5 40 36

4 16 -30.75 4.5 36 -30.75 40 36 -30.75 33.5 30 -30.75 6 33.5
4 16 -28.75 4.5 36 -28.75 6 33.5 -28.75 33.5 30 -28.75 40 36
1 16 -29.75 5.25 34.75 0 0 1 .75 1 0 -1.25 0 0 rect2p.dat
4 16 -30.75 33.5 -4.5 -30.75 33.5 30 -30.75 40 36 -30.75 40 -4.5
4 16 -28.75 33.5 -4.5 -28.75 40 -4.5 -28.75 40 36 -28.75 33.5 30
1 16 -29.75 33.5 12.75 0 0 1 0 1 0 -17.25 0 0 rect2p.dat
1 16 -29.75 19.75 31.75 0 0 1 13.75 1 0 -1.75 0 0 rect.dat
1 16 -29.75 22.25 36 -1 0 0 0 0 -17.75 0 -1 0 recte3.dat
1 16 -29.75 36.75 -4.5 1 0 0 0 0 -3.25 0 1 0 recte3.dat
2 24 -28.75 40 -4.5 -28.75 40 36
2 24 -30.75 40 -4.5 -30.75 40 36

0 // Indent for Arresting Latches
4 16 40 30.173 -.761 36 30.173 -.761 36 41 -.1187 40 43 0
3 16 40 48 0 40 43 0 35 43 0
3 16 36 41 -.1187 35 43 0 40 43 0
4 16 40 48 0 35 43 0 0 43 0 0 48 0
2 24 40 30.173 -.761 40 43 0
2 24 36 30.173 -.761 36 41 -.1187
2 24 35 43 0 0 43 0
2 24 36 41 -.1187 35 43 0
2 24 40 43 0 40 48 0

3 16 36 41 -18 36 41 -22 35 43 0
3 16 35 43 0 36 41 -22 36 41 -38
3 16 35 43 0 36 41 -.1187 36 41 -18
2 24 36 41 -18 36 41 -.1187

3 16 36 31.5 -22 36 24 -10 36 31.5 -38
4 16 36 41 -.1187 36 30.173 -.761 36 31.5 -18 36 41 -18
4 16 36 31.5 -22 36 31.5 -18 36 30.173 -.761 36 24 -10
1 16 36 36.25 -30 0 -1 0 4.75 0 0 0 0 8 rect1.dat
0 BFC INVERTNEXT
1 16 40 34 -10 0 -4 0 -10 0 0 0 0 10 3-16cylo.dat
1 16 36 34 -10 0 -1 0 -10 0 0 0 0 10 3-16chrd.dat

1 16 40 34 -10 0 -1 0 -10 0 0 0 0 10 3-16ndis.dat
3 16 40 24 0 40 30.173 -.761 40 43 0
3 16 40 24 -10 40 24 0 40 0 0

4 16 10 32 0 36.5 27 0 36.5 0 0 10 0 0
4 16 36.5 27 0 10 32 0 10 40 0 32.75 34 0
3 16 32.5 40 0 32.75 34 0 10 40 0
2 24 32.5 40 0 10 40 0
2 24 32.5 40 0 32.75 34 0
2 24 35.065 25.1958 0 34.9094 25.3794 0
2 24 35.065 25.1958 0 36.5 24.6915 0
2 24 32.9136 29.8579 0 33.035 28.7784 0
2 24 33.035 28.7784 0 33.848 26.631 0
2 24 32.9136 29.8579 0 32.75 34 0
2 24 33.848 26.631 0 34.9094 25.3794 0
2 24 10 0 0 36.5 0 0
2 24 36.5 0 0 36.5 24.6915 0

1 16 36.5 34 -10 0 1 0 -13.75 0 0 0 0 13.75 1-4edge.dat
1 16 36.5 34 -10 0 -10 0 -10 0 0 0 0 10 t04o3750.dat
1 16 32.75 34 -10 0 1 0 -10 0 0 0 0 10 1-4chrd.dat
3 16 36.5 24.6915 0 36.5 20.25 -10 36.5 0 0

0 // Bump
1 16 36 36.25 -20 0 -1 0 0 0 -4.75 2 0 0 recte3.dat
4 16 36 31.5 -18 38.6707 33.4227 -18 39.1178 34.7644 -18 36 41 -18
4 16 39.1178 34.7644 -22 38.6707 33.4227 -22 36 31.5 -22 36 41 -22
1 16 37.33535 32.46135 -20 1.33535 0 0 .96135 1 0 0 0 2 rect2p.dat
1 16 37.5589 37.8822 -20 -1.5589 0 0 3.1178 -1 0 0 0 2 rect2p.dat
1 16 38.2234 34.3171 -18 .89439 0 .44729 .44729 0 -.89439 0 -4 0 1-4cylo.dat
1 16 38.2234 34.3171 -18 .89439 0 .44729 .44729 0 -.89439 0 -1 0 1-4chrd.dat
1 16 38.2234 34.3171 -22 .89439 0 .44729 .44729 0 -.89439 0 1 0 1-4chrd.dat
5 24 38.6707 33.4227 -18 38.6707 33.4227 -22 38.9789 33.662 -18 36 31.5 -18
