Official File parts/s/65803s03.dat

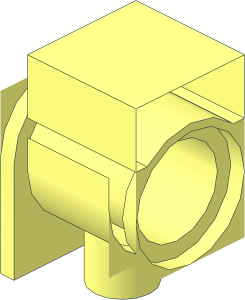

~Technic Brick 16 x 16 x 1.333 - Pinhole
File Header:
0 ~Technic Brick 16 x 16 x 1.333 - Pinhole 0 Name: s\65803s03.dat 0 Author: Magnus Forsberg [MagFors] 0 !LDRAW_ORG Subpart UPDATE 2023-04 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 26 0 0 0 -1 0 -1.5 0 -1 0 0 stud3a.dat 1 16 0 26 0 0 0 -1 0 1 0 -1 0 0 cylj4x8.dat 1 16 -6 18 0 0 12 0 0 0 8 -8 0 0 2-4cylo.dat 0 BFC INVERTNEXT 1 16 -8 18 0 0 16 0 0 0 -6 -6 0 0 4-4cyli.dat 1 16 10 18 0 0 -1 0 0 0 -1 1 0 0 peghole.dat 1 16 -10 18 0 0 1 0 0 0 -1 -1 0 0 peghole2.dat 1 16 -10 18 0 0 1 0 0 0 -8 -8 0 0 2-4ndis.dat 1 16 10 18 0 0 -1 0 0 0 8 -8 0 0 2-4ndis.dat 1 16 6 18 0 0 1 0 0 0 8 8 0 0 2-4ndis.dat 1 16 -6 18 0 0 -1 0 0 0 8 -8 0 0 2-4ndis.dat 1 16 10 18 0 0 -16 0 -6.36396 0 -6.36396 6.36396 0 -6.36396 1-4cylo.dat 1 16 10 18 0 0 -1 0 -0.70711 0 -0.70711 -0.70711 0 0.70711 1-4ring8.dat 1 16 10 18 0 0 -1 0 0 0 -8 8 0 0 1-8tang.dat 3 16 10 16.4088 8 10 11.636 8 10 14.9384 7.3912 3 16 10 14.9384 7.3912 10 11.636 8 10 13.468 6.7824 4 16 10 12.3431 5.6569 10 13.468 6.7824 10 11.636 8 10 11.636 6.364 1 16 2 11.636 7.182 8 0 0 0 1 0 0 0 0.81802 rect.dat 1 16 10 18 0 0 -1 0 0 0 -8 -8 0 0 1-8tang.dat 3 16 10 11.636 -8 10 16.4088 -8 10 14.9384 -7.3912 3 16 10 11.636 -8 10 14.9384 -7.3912 10 13.468 -6.7824 4 16 10 11.636 -8 10 13.468 -6.7824 10 12.3431 -5.6569 10 11.636 -6.364 1 16 2 11.636 -7.182 8 0 0 0 1 0 0 0 -0.81802 rect.dat 0 BFC INVERTNEXT 1 16 10 7.818 0 0 -16 0 0 0 -3.818 8 0 0 box4-4a.dat 1 16 0 16 8 -6 0 0 0 0 -2 0 -1 0 rect3.dat 1 16 0 16 -8 6 0 0 0 0 -2 0 1 0 rect3.dat
Status:
Official Official
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 10 18 0 0 -16 0 -6.36396 0 -6.36396 6.36396 0 -6.36396 1-4cylo.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 10 18 0 0 -1 0 -0.70711 0 -0.70711 -0.70711 0 0.70711 1-4ring8.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 2 11.636 7.182 8 0 0 0 1 0 0 0 0.81802 rect.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 2 11.636 -7.182 8 0 0 0 1 0 0 0 -0.81802 rect.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
