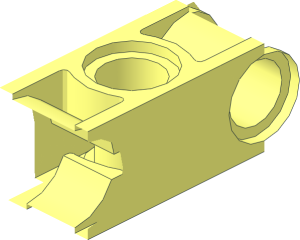

~Technic Beam 15 x 11 with Perforated Centre Plate 13 x 9 Beam Segment
File Header:
0 ~Technic Beam 15 x 11 with Perforated Centre Plate 13 x 9 Beam Segment 0 Name: s\65817s01.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Subpart UPDATE 2024-08 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2022-07-14 [SwampKryakwa] Use of npeghol primitives, fixed tjuncs 0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
1 16 0 0 10 -1 0 0 0 1 0 0 0 -1 npeghol9.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 connhole.dat 1 16 10 0 20 0 -1 0 -1 0 0 0 0 1 peghole.dat 1 16 -10 0 20 0 1 0 0 0 -1 1 0 0 peghole5.dat 0 BFC INVERTNEXT 1 16 8 0 20 0 -16 0 -6 0 0 0 0 6 4-4cyli.dat 1 16 0 0 -10 -1 0 0 0 1 0 0 0 1 npeghol9.dat 1 16 10 0 20 0 -1 0 8 0 0 0 0 -8 2-4ndis.dat 1 16 10 0 -20 0 -1 0 8 0 0 0 0 8 2-4ndis.dat 1 16 -10 0 -20 0 1 0 -5.65685 0 5.65685 5.65685 0 5.65685 1-8ndis.dat 2 24 -10 10 12 -10 10 -12 1 16 -10 0 20 0 1 0 -5.65685 0 5.65685 -5.65685 0 -5.65685 1-8ndis.dat 4 16 -10 0 -8.6863 -10 -5.6569 -14.3431 -10 -5.6569 14.3431 -10 0 8.6863 3 16 -10 0 8.6863 -10 0 12 -10 10 12 4 16 -10 -8 24 -10 -8 16 -10 -5.5 14.2384 -10 -5.5 25.7616 2 24 -12 -5.5 14.2384 -12 -5.5 25.7616 2 24 -10 -5.5 25.7616 -12 -5.5 25.7616 5 24 -10 -3.5 23.7 -12 -3.5 23.7 -12 -5.5 25.7616 -12 -3.5 16.3 2 24 -10 -3.5 23.7 -10 -5.5 25.7616 2 24 -12 -3.5 23.7 -12 -5.5 25.7616 4 16 -10 -5.5 25.7616 -10 -3.5 23.7 -12 -3.5 23.7 -12 -5.5 25.7616 5 24 -10 -3.5 16.3 -12 -3.5 16.3 -12 -3.5 23.7 -12 -5.5 14.2384 2 24 -10 -3.5 16.3 -10 -5.5 14.2384 2 24 -12 -3.5 16.3 -12 -5.5 14.2384 4 16 -12 -3.5 16.3 -10 -3.5 16.3 -10 -5.5 14.2384 -12 -5.5 14.2384 4 16 -10 -3.5 23.7 -10 -5.5 25.7616 -10 -5.5 14.2384 -10 -3.5 16.3 2 24 -10 -3.5 16.3 -10 -3.5 23.7 4 16 -12 -5.5 14.2384 -12 -5.5 25.7616 -12 -3.5 23.7 -12 -3.5 16.3 2 24 -12 -3.5 16.3 -12 -3.5 23.7 4 16 -10 -3.5 16.3 -12 -3.5 16.3 -12 -3.5 23.7 -10 -3.5 23.7 1 16 -11 -5.5 0 0 0 1 0 -1 0 14.2384 0 0 rect2a.dat 4 16 10 -8 12 10 -8 -12 10 0 -12 10 0 12 4 16 10 8 12 10 0 12 10 0 -12 10 8 -12 4 16 10 -10 -20 10 -8 -20 10 -8 -12 10 -10 -10 4 16 10 -10 0 10 -10 -10 10 -8 -12 10 -8 12 4 16 10 -8 12 10 -8 20 10 -10 20 10 -10 10 3 16 10 -8 12 10 -10 10 10 -10 0 4 16 10 8 -12 10 8 -20 10 10 -20 10 10 -10 4 16 10 8 -12 10 10 -10 10 10 0 10 8 12 4 16 10 10 20 10 8 20 10 8 12 10 10 10 3 16 10 10 10 10 8 12 10 10 0 4 16 -10 0 -8.6863 -10 0 8.6863 -10 10 12 -10 10 10 3 16 -10 10 -10 -10 0 -8.6863 -10 10 0 3 16 -10 10 0 -10 0 -8.6863 -10 10 10 2 24 10 -10 -20 10 -10 -10 2 24 10 -10 -10 10 -10 0 2 24 10 -10 0 10 -10 10 2 24 10 -10 10 10 -10 20 2 24 10 10 20 10 10 10 2 24 10 10 10 10 10 0 2 24 10 10 0 10 10 -10 2 24 10 10 -10 10 10 -20 4 16 -10 0 -12.00008273 -10 0 -8.6863 -10 10 -10 -10 10 -12
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line text: 4 16 -10 0 -12.00008273 -10 0 -8.6863 -10 10 -10 -10 10 -12
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 -10 0 -20 0 1 0 -5.65685 0 5.65685 5.65685 0 5.65685 1-8ndis.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 -10 0 20 0 1 0 -5.65685 0 5.65685 -5.65685 0 -5.65685 1-8ndis.dat
