Official File parts/s/67491s01.dat

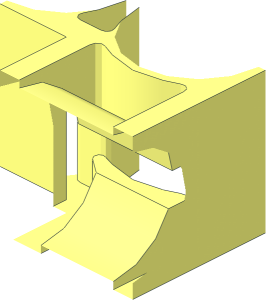

~Technic Beam with Alternate Holes T-Joint -Half
File Header:
0 ~Technic Beam with Alternate Holes T-Joint -Half 0 Name: s\67491s01.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Subpart UPDATE 2024-04 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2022-07-15 [SwampKryakwa] Use of npeghole primitives 0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 -10 0 1 0 0 0 1 0 0 0 -1 3-8ring9.dat 1 16 10 0 -20 0 -1 0 8 0 0 0 0 8 2-4ndis.dat 4 16 10 -8 -12 10 -10 -10 10 -10 -20 10 -8 -20 4 16 10 10 -10 10 8 -12 10 8 -20 10 10 -20 2 24 10 -10 0 10 -10 -20 1 16 -10 0 -20 0 1 0 -8 0 0 0 0 8 1-4ndis.dat 2 24 -10 10 -12 -10 10 -10 2 24 -10 -10 -20 -10 -10 -10 4 16 -10 -10 -20 -10 -10 -10 -10 -8 -12 -10 -8 -20 4 16 10 -10 -10 10 10 -10 10 10 0 10 -10 0 1 16 0 -10 0 0 0 -1 0 8 0 -1 0 0 npeghol6d.dat 1 16 -20 -10 0 0 0 1 0 8 0 -1 0 0 npeghol6d.dat 1 16 0 10 0 0 0 -1 0 -8 0 -1 0 0 npeghol6d.dat 1 16 -20 10 0 0 0 1 0 -8 0 -1 0 0 npeghol6d.dat 1 16 0 0 -10 -1 0 0 0 1 0 0 0 1 npeghol20.dat 1 16 -20 10 0 0 0 9 0 -1 0 -9 0 0 1-8tndis.dat 4 16 -20 10 -10 -20 10 -9 -13.6361 10 -9 -10 10 -10 4 16 -13.6361 -10 -9 -20 -10 -9 -20 -10 -10 -10 -10 -10 1 16 -20 -10 0 0 0 9 0 1 0 -9 0 0 1-8tndis.dat 1 16 -15 0 -10 0 0 5 10 0 0 0 1 0 rect3.dat 1 16 0 10 0 10 0 0 0 -1 0 0 0 -10 1-8ndis.dat 1 16 0 -10 0 10 0 0 0 1 0 0 0 -10 1-8ndis.dat 4 16 10 -10 -10 7.071 -10 -7.071 7.071 -10 -20 10 -10 -20 4 16 7.071 10 -7.071 10 10 -10 10 10 -20 7.071 10 -20 4 16 -3.827 10 -20 -8 10 -20 -8 10 -12 -3.827 10 -11.685 4 16 -7.071 -10 -20 -7.07107 -10 -9.41034 -10 -10 -10 -10 -10 -20 4 16 -10 -10 -10 -11.53212 -10 -6.3639 -13.6361 -10 -6.3639 -13.636 -10 -9 4 16 -11.53212 -10 -6.3639 -10 -10 -10 -7.07107 -10 -9.41034 -8.46788 -10 -6.3639 3 16 -8.46788 -10 -6.3639 -7.07107 -10 -9.41034 -7.071 -10 -7.071 3 16 -7.071 -10 -7.071 -6.3639 -10 -6.3639 -8.46788 -10 -6.3639 1 16 0 10 0 1 0 0 0 -1 0 0 0 -1 3-8ring9.dat 4 16 -13.6361 10 -6.3639 -11.53212 10 -6.3639 -10 10 -10 -13.636 10 -9 3 16 -6.3639 10 -6.3639 -7.07153 10 -7.07132 -8.46788 10 -6.3639 2 24 10 10 -20 10 10 -10 2 24 10 10 -10 10 10 0 3 16 -6.17401 10 -9.891 -3.827 10 -11.68503 -8 10 -12 4 16 -10 10 -10 -10 0 -12 -10 -8 -12 -10 -10 -10 3 16 -10 10 -10 -10 10 -12 -10 0 -12 4 16 10 -10 -10 10 -8 -12 10 0 -12 10 10 -10 3 16 10 0 -12 10 8 -12 10 10 -10 4 16 -11.53212 10 -6.3639 -8.46788 10 -6.3639 -7.07153 10 -7.07132 -10 10 -10 4 16 -6.45566 10 -9.40725 -6.17401 10 -9.891 -8 10 -12 -10 10 -12 4 16 -7.07153 10 -7.07132 -6.45566 10 -9.40725 -10 10 -12 -10 10 -10
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 39: 4 16 -7.071 -10 -20 -7.07107 -10 -9.41034 -10 -10 -10 -10 -10 -20
    Line 40: 4 16 -10 -10 -10 -11.53212 -10 -6.3639 -13.6361 -10 -6.3639 -13.636 -10 -9
    Line 41: 4 16 -11.53212 -10 -6.3639 -10 -10 -10 -7.07107 -10 -9.41034 -8.46788 -10 -6.3639
    Line 42: 3 16 -8.46788 -10 -6.3639 -7.07107 -10 -9.41034 -7.071 -10 -7.071
    Line 43: 3 16 -7.071 -10 -7.071 -6.3639 -10 -6.3639 -8.46788 -10 -6.3639
    Line 45: 4 16 -13.6361 10 -6.3639 -11.53212 10 -6.3639 -10 10 -10 -13.636 10 -9
    Line 46: 3 16 -6.3639 10 -6.3639 -7.07153 10 -7.07132 -8.46788 10 -6.3639
    Line 49: 3 16 -6.17401 10 -9.891 -3.827 10 -11.68503 -8 10 -12
    Line 54: 4 16 -11.53212 10 -6.3639 -8.46788 10 -6.3639 -7.07153 10 -7.07132 -10 10 -10
    Line 55: 4 16 -6.45566 10 -9.40725 -6.17401 10 -9.891 -8 10 -12 -10 10 -12
    Line 56: 4 16 -7.07153 10 -7.07132 -6.45566 10 -9.40725 -10 10 -12 -10 10 -10
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
