Official File parts/s/67737s01.dat
File Header:

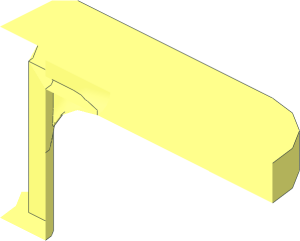

0 ~Propeller 4 Blade 5 Diameter with Closed Hub 1/8 Blade
0 Name: s\67737s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 24 0 9.2388 0 -3.82683 0 -19 0 3.82683 0 9.2388 1-16cylo.dat
1 16 40 0 0 10 0 0 0 5 0 0 0 10 1-4cylo.dat
1 16 25 2.5 10 15 0 0 0 0 2.5 0 -1 0 rect2p.dat
1 16 40 0 0 10 0 0 0 1 0 0 0 10 1-4chrd.dat
1 16 40 5 0 10 0 0 0 -1 0 0 0 10 1-4chrd.dat
4 16 10 0 10 8 0 8 8 0 0 40 0 10
3 16 40 0 10 8 0 0 50 0 0
1 16 12 24 0 3 0 0 0 -19 0 0 0 3 1-4cylo.dat
2 24 9.239 5 3.827 9.4034 5 3
2 24 9.239 24 3.827 9.4034 24 3
4 16 9.2388 24 3.8268 9.2388 5 3.8268 9.4034 5 3 9.4034 24 3
5 24 9.2388 24 3.8268 9.2388 5 3.8268 9.4034 5 3 7.0712 5 7.0713
1 16 10.7017 14.5 3 0 0 -1.2983 9.5 0 0 0 -1 0 rect3.dat
4 16 40 5 10 50 5 0 15 5 0 10 5 10
4 16 10 5 10 15 5 0 9.4034 5 3 7.0712 5 7.0713
1 16 12 24 0 3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 0 24 0 1.84776 0 -0.76537 0 -1 0 0.76537 0 1.84776 1-16ring4.dat
1 16 0 24 0 8 0 0 0 -1 0 0 0 8 1-16tang.dat
4 16 8 24 1.5912 7.391 24 3.0615 9.2388 24 3.8268 9.4034 24 3
4 16 9.4034 24 3 12 24 3 15 24 0 8 24 1.5912
3 16 8 24 0 8 24 1.5912 15 24 0
1 16 23 13 0 0 0 -10 -10 0 0 0 10 0 t04i2000.dat
1 16 23 13 2 0 0 -10 -10 0 0 0 -1 0 1-4ndis.dat
2 24 17.3191 5 2 14 5 2
2 24 14.2024 8.5126 2 14.2024 5 2
2 24 22.2351 5 0.765 23 5 0
2 24 22.2351 5 0.765 20.0557 5 1.414
2 24 20.0557 5 1.414 19.6859 5 1.4632
2 24 17.3191 5 2 18.6699 5 1.848
2 24 15 5 0 14.7717 5 1.1481
2 24 18.6699 5 1.848 19.6859 5 1.4632
2 24 14.1213 5 2.1213 14.7717 5 1.1481
2 24 14.7717 12.0948 1.1481 14.8478 13 0.7653
2 24 14.2764 9.3866 1.8892 14.2024 8.5126 2
2 24 14.2764 9.3866 1.8892 14.3039 10.2907 1.848
2 24 14.7717 12.0948 1.1481 14.594 12.0956 1.414
2 24 14.3039 10.2907 1.848 14.594 12.0956 1.414
2 24 14.8478 13 0.7653 15 13 0
Status:
Official
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 12: 1 16 0 24 0 9.2388 0 -3.82683 0 -19 0 3.82683 0 9.2388 1-16cylo.datLine 28: 1 16 0 24 0 1.84776 0 -0.76537 0 -1 0 0.76537 0 1.84776 1-16ring4.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
