File Detail parts/s/6809s01.dat

Official File parts/s/6809s01.dat

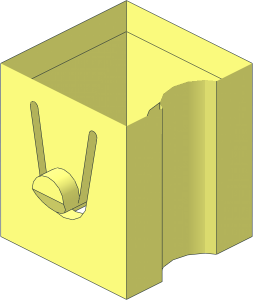

~Scala Support Connector with Hole - Common Geometry

File Header:

0 ~Scala Support Connector with Hole - Common Geometry
0 Name: s\6809s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

0 // Bottom
4 16 13 36 13 -13 36 13 -16 36 16 16 36 16
4 16 -16 36 -16 -16 36 16 -13 36 13 -13 36 -13
4 16 13 36 -8.129 12.3235 36 -7.6765 14.2426 36 -5.7574 16 36 -6.932
4 16 13 36 -13 13 36 -8.129 16 36 -6.932 16 36 -16
4 16 14.2426 36 5.7574 12.3235 36 7.6765 13 36 8.129 16 36 6.932
4 16 16 36 6.932 13 36 8.129 13 36 13 16 36 16
4 16 -16 36 -16 -13 36 -13 13 36 -13 16 36 -16
1 16 20 36 0 -1.91909 0 -1.91909 0 -1 0 1.91909 0 -1.91909 1-4ring3.dat
2 24 -16 36 -16 16 36 -16
2 24 -13 36 -13 13 36 -13

1 16 13 20 -10.5645 0 1 0 16 0 0 0 0 -2.4355 rect3.dat
1 16 12.662 20 -7.9025 0 1 .338 16 0 0 0 0 -.2265 rect3.dat
1 16 20 4 0 -7.67648 0 -7.67648 0 32 0 7.67648 0 -7.67648 1-4cylo.dat
1 16 12.662 20 7.9025 0 1 .338 16 0 0 0 0 .2265 rect3.dat
1 16 13 20 10.5645 0 1 0 0 0 -16 -2.4355 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 0 20 0 0 -13 0 16 0 0 0 0 13 box2-5.dat
5 24 12.3235 4 -7.6765 12.3235 36 -7.6765 13 36 -8.129 9.9699 36 -4.1545
5 24 12.3235 4 7.6765 12.3235 36 7.6765 13 36 8.129 9.9699 36 4.1545

0 // Clip Inside
1 16 7.5 5.5 -13 -.98404 0 .17794 -.17794 0 -.98404 0 -1 0 2-4ndis.dat
1 16 -7.5 5.5 -13 .98404 0 -.17794 -.17794 0 -.98404 0 -1 0 2-4ndis.dat
1 16 0 19.5 -13 0 0 -4 4 0 0 0 -1 0 3-16chrd.dat
1 16 0 19.5 -13 0 0 4 4 0 0 0 -1 0 3-16chrd.dat
4 16 -6 25.5 -13 0 25.5 -13 13 36 -13 -13 36 -13
4 16 13 4 -13 6.6939 4.338 -13 -6.6939 4.338 -13 -13 4 -13
4 16 -6.516 5.3221 -13 -6.6939 4.338 -13 6.6939 4.338 -13 6.516 5.3221 -13
3 16 -8.662 4.6939 -13 -13 4 -13 -7.6779 4.516 -13
3 16 -13 4 -13 -8.662 4.6939 -13 -8.484 5.6779 -13
4 16 -13 4 -13 -8.484 5.6779 -13 -5.5434 21.7962 -13 -13 36 -13
3 16 -5.5434 21.7962 -13 -6 25.5 -13 -13 36 -13
3 16 13 4 -13 8.662 4.6939 -13 7.6779 4.516 -13
3 16 8.662 4.6939 -13 13 4 -13 8.484 5.6779 -13
4 16 5.5434 21.7962 -13 8.484 5.6779 -13 13 4 -13 13 36 -13
3 16 6 25.5 -13 5.5434 21.7962 -13 13 36 -13
3 16 6 25.5 -13 13 36 -13 0 25.5 -13
3 16 7.6779 4.516 -13 6.6939 4.338 -13 13 4 -13
3 16 3.6956 21.0308 -13 0 23.5 -13 -3.6956 21.0308 -13
4 16 3.6956 21.0308 -13 -3.6956 21.0308 -13 -4.1 19.5 -13 4.1 19.5 -13
4 16 -4.1 19.5 -13 -6.516 5.3221 -13 6.516 5.3221 -13 4.1 19.5 -13
3 16 -6.6939 4.338 -13 -7.6779 4.516 -13 -13 4 -13
1 16 0 19.5 -13 0 0 -6 6 0 0 0 -1 0 3-16ndis.dat
1 16 0 19.5 -13 0 0 6 6 0 0 0 -1 0 3-16ndis.dat

0 // Clip
1 16 7.5 5.5 -16 -.98404 0 .17794 -.17794 0 -.98404 0 1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 7.5 5.5 -16 -.98404 0 .17794 -.17794 0 -.98404 0 3 0 2-4cylo.dat
1 16 -7.5 5.5 -16 .98404 0 -.17794 -.17794 0 -.98404 0 1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -7.5 5.5 -16 .98404 0 -.17794 -.17794 0 -.98404 0 3 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 0 19.5 -16 0 0 -6 6 0 0 0 3 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 0 19.5 -16 0 0 6 6 0 0 0 3 0 3-16cylo.dat
1 16 -7.01372 13.73707 -14.5 -1.47032 0 0 -8.05913 1 0 0 0 -1.5 rect2p.dat
1 16 7.01372 13.73707 -14.5 -1.47032 0 0 8.05913 1 0 0 0 -1.5 rect2p.dat
1 16 3.8978 20.2654 -14.5 -.2022 0 0 .7654 -1 0 0 0 1.5 rect2p.dat
1 16 5.30798 12.41103 -14.5 -1.20798 0 0 7.08897 -1 0 0 0 1.5 rect2p.dat
5 24 4.1 19.5 -16 4.1 19.5 -13 3.6956 21.0308 -16 6.51596 5.32206 -16
1 16 -3.8978 20.2654 -14.5 .2022 0 0 .7654 -1 0 0 0 1.5 rect2p.dat
1 16 -5.30798 12.41103 -14.5 1.20798 0 0 7.08897 -1 0 0 0 1.5 rect2p.dat
5 24 -4.1 19.5 -16 -4.1 19.5 -13 -3.6956 21.0308 -16 -6.51596 5.32206 -16
1 16 0 19.5 -16 0 0 4 4 0 0 0 3 0 3-16cyli.dat
1 16 0 19.5 -13 0 0 4 4 0 0 0 1 0 3-16edge.dat
1 16 0 19.5 -16 0 0 -4 4 0 0 0 3 0 3-16cyli.dat
1 16 0 19.5 -13 0 0 -4 4 0 0 0 1 0 3-16edge.dat
5 24 3.6956 21.0308 -16 3.6956 21.0308 -13 4.1 19.5 -13 2.8284 22.3284 -13
5 24 -3.6956 21.0308 -19.2346 -3.6956 21.0308 -16 -4 19.5 -20 -2.8284 22.3284 -18
5 24 -3.6956 21.0308 -16 -3.6956 21.0308 -13 -2.8284 22.3284 -13 -4.1 19.5 -13

1 16 0 19.5 -16 0 0 -4 4 0 0 0 -2 0 4-4cyli.dat
1 16 0 19.5 -18 -4 0 0 0 0 -4 0 -2 0 2-4cyli.dat
1 16 0 19.5 -18 0 0 -4 4 0 0 0 -2 0 1-4cyls.dat
1 16 0 19.5 -18 0 0 4 4 0 0 0 -2 0 1-4cyls.dat
1 16 0 19.5 -16 0 0 4 -4 0 0 0 1 0 5-16edge.dat
1 16 0 19.5 -16 0 0 -4 -4 0 0 0 1 0 5-16edge.dat
1 16 0 19.5 -20 -4 0 0 0 0 -4 0 1 0 2-4edge.dat
1 16 0 19.5 -20 -4 0 0 0 0 -4 0 1 0 2-4chrd.dat
1 16 0 19.5 -20 -4 0 0 0 0 4 0 1 2 2-4chrd.dat
1 16 0 19.5 -20 -4 0 0 0 0 4 0 1 2 2-4edge.dat
2 24 4 19.5 -20 -4 19.5 -20

0 // Clip Outside
1 16 0 19.5 -16 0 0 -6 6 0 0 0 1 0 3-16ndis.dat
1 16 0 19.5 -16 0 0 6 6 0 0 0 1 0 3-16ndis.dat
4 16 -6 25.5 -16 -16 36 -16 16 36 -16 0 25.5 -16
4 16 -8.48404 5.67794 -16 -8.66198 4.6939 -16 -16 0 -16 -16 36 -16
4 16 -5.5434 21.7962 -16 -8.48404 5.67794 -16 -16 36 -16 -6 25.5 -16
4 16 16 0 -16 8.66198 4.6939 -16 8.48404 5.67794 -16 16 36 -16
4 16 16 36 -16 8.48404 5.67794 -16 5.5434 21.7962 -16 6 25.5 -16
3 16 6 25.5 -16 0 25.5 -16 16 36 -16
4 16 -14 0 -16 -16 0 -16 -7.67794 4.51596 -16 -6.6939 4.33802 -16
3 16 -7.67794 4.51596 -16 -16 0 -16 -8.66198 4.6939 -16
4 16 14 0 -16 6.6939 4.33802 -16 7.67794 4.51596 -16 16 0 -16
3 16 16 0 -16 7.67794 4.51596 -16 8.66198 4.6939 -16
4 16 6.51596 5.32206 -16 6.6939 4.33802 -16 -6.6939 4.33802 -16 -6.51596 5.32206 -16
3 16 -14 0 -16 -6.6939 4.33802 -16 -6.932 0 -16
3 16 6.932 0 -16 6.6939 4.33802 -16 14 0 -16
4 16 6.6939 4.33802 -16 6.932 0 -16 -6.932 0 -16 -6.6939 4.33802 -16
4 16 6.51596 5.32206 -16 -6.51596 5.32206 -16 -4.1 19.5 -16 4.1 19.5 -16
4 16 3.6956 21.0308 -16 4.1 19.5 -16 -4.1 19.5 -16 -3.6956 21.0308 -16

0 // Other sides
4 16 16 36 -6.932 16 0 -6.932 16 0 -14 16 36 -16
3 16 16 0 -14 16 0 -16 16 36 -16
2 24 16 36 -6.932 16 36 -16
2 24 16 36 -16 16 0 -16
1 16 15.1215 18 -6.3445 .8785 -1 0 0 0 18 -.5875 0 0 rect2a.dat
0 BFC INVERTNEXT
1 16 20 0 0 -5.75736 0 -5.75736 0 36 0 5.75736 0 -5.75736 1-4cyli.dat
1 16 15.1215 18 6.3445 0 -1 .8785 18 0 0 0 0 .5875 rect2a.dat
1 16 20 36 0 -5.75736 0 -5.75736 0 1 0 5.75736 0 -5.75736 1-4edge.dat
4 16 16 0 6.932 16 36 6.932 16 36 16 16 0 14
3 16 16 0 16 16 0 14 16 36 16
2 24 16 36 6.932 16 36 16

1 16 0 18 0 0 -16 0 18 0 0 0 0 16 box2-5.dat
5 24 14.2426 0 5.7574 14.2426 36 5.7574 16 36 6.932 12.4774 36 3.1159
5 24 14.2426 36 -5.7574 14.2426 0 -5.7574 12.4774 0 -3.1159 16 0 -6.932

0 // Top
2 24 -13 4 -13 13 4 -13

Status:

Official

This part has the following warnings

Decimal precision exceeds library recommendation

Line 19: 1 16 20 36 0 -1.91909 0 -1.91909 0 -1 0 1.91909 0 -1.91909 1-4ring3.dat

Line 25: 1 16 20 4 0 -7.67648 0 -7.67648 0 32 0 7.67648 0 -7.67648 1-4cylo.dat

Line 34: 1 16 7.5 5.5 -13 -.98404 0 .17794 -.17794 0 -.98404 0 -1 0 2-4ndis.dat

Line 35: 1 16 -7.5 5.5 -13 .98404 0 -.17794 -.17794 0 -.98404 0 -1 0 2-4ndis.dat

Line 59: 1 16 7.5 5.5 -16 -.98404 0 .17794 -.17794 0 -.98404 0 1 0 2-4ndis.dat

Line 61: 1 16 7.5 5.5 -16 -.98404 0 .17794 -.17794 0 -.98404 0 3 0 2-4cylo.dat

Line 62: 1 16 -7.5 5.5 -16 .98404 0 -.17794 -.17794 0 -.98404 0 1 0 2-4ndis.dat

Line 64: 1 16 -7.5 5.5 -16 .98404 0 -.17794 -.17794 0 -.98404 0 3 0 2-4cylo.dat

Line 69: 1 16 -7.01372 13.73707 -14.5 -1.47032 0 0 -8.05913 1 0 0 0 -1.5 rect2p.dat

Line 70: 1 16 7.01372 13.73707 -14.5 -1.47032 0 0 8.05913 1 0 0 0 -1.5 rect2p.dat

Line 72: 1 16 5.30798 12.41103 -14.5 -1.20798 0 0 7.08897 -1 0 0 0 1.5 rect2p.dat

Line 73: 5 24 4.1 19.5 -16 4.1 19.5 -13 3.6956 21.0308 -16 6.51596 5.32206 -16

Line 75: 1 16 -5.30798 12.41103 -14.5 1.20798 0 0 7.08897 -1 0 0 0 1.5 rect2p.dat

Line 76: 5 24 -4.1 19.5 -16 -4.1 19.5 -13 -3.6956 21.0308 -16 -6.51596 5.32206 -16

Line 101: 4 16 -8.48404 5.67794 -16 -8.66198 4.6939 -16 -16 0 -16 -16 36 -16

Line 102: 4 16 -5.5434 21.7962 -16 -8.48404 5.67794 -16 -16 36 -16 -6 25.5 -16

Line 103: 4 16 16 0 -16 8.66198 4.6939 -16 8.48404 5.67794 -16 16 36 -16

Line 104: 4 16 16 36 -16 8.48404 5.67794 -16 5.5434 21.7962 -16 6 25.5 -16

Line 106: 4 16 -14 0 -16 -16 0 -16 -7.67794 4.51596 -16 -6.6939 4.33802 -16

Line 107: 3 16 -7.67794 4.51596 -16 -16 0 -16 -8.66198 4.6939 -16

Line 108: 4 16 14 0 -16 6.6939 4.33802 -16 7.67794 4.51596 -16 16 0 -16

Line 109: 3 16 16 0 -16 7.67794 4.51596 -16 8.66198 4.6939 -16

Line 110: 4 16 6.51596 5.32206 -16 6.6939 4.33802 -16 -6.6939 4.33802 -16 -6.51596 5.32206 -16

Line 111: 3 16 -14 0 -16 -6.6939 4.33802 -16 -6.932 0 -16

Line 112: 3 16 6.932 0 -16 6.6939 4.33802 -16 14 0 -16

Line 113: 4 16 6.6939 4.33802 -16 6.932 0 -16 -6.932 0 -16 -6.6939 4.33802 -16

Line 114: 4 16 6.51596 5.32206 -16 -6.51596 5.32206 -16 -4.1 19.5 -16 4.1 19.5 -16

Line 124: 1 16 20 0 0 -5.75736 0 -5.75736 0 36 0 5.75736 0 -5.75736 1-4cyli.dat

Line 126: 1 16 20 36 0 -5.75736 0 -5.75736 0 1 0 5.75736 0 -5.75736 1-4edge.dat
