File Detail parts/s/6821s03.dat

Download

Official File parts/s/6821s03.dat

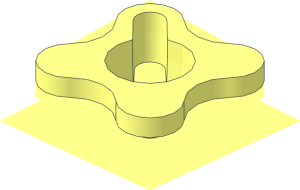

~Scala Base - Scala Stud with Troughhole

0 ~Scala Base - Scala Stud with Troughhole
0 Name: s\6821s03.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-11
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11

Show file code:

1 16 -10 0 -10 -4.24264 0 -4.24264 0 1 0 4.24264 0 -4.24264 2-4ndis.dat
1 16 -10 0 10 4.24264 0 -4.24264 0 1 0 4.24264 0 4.24264 2-4ndis.dat
1 16 -20 0 0 5.75736 0 5.75736 0 1 0 -5.75736 0 5.75736 1-4chrd.dat

1 16 0 9.5 0 7.5 0 0 0 1 0 0 0 7.5 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 0 .5 0 0 0 9.5 0 0 0 .5 1-4con15.dat
0 BFC INVERTNEXT
1 16 0 0 0 .5 0 0 0 9.5 0 0 0 -.5 2-4con15.dat
1 16 0 6 0 -10 0 0 0 3.5 0 0 0 -10 3-4cylo.dat
1 16 0 9.5 0 -2.5 0 0 0 -1 0 0 0 -2.5 3-4ring3.dat

1 16 0 6 0 -10 0 0 0 -1 0 0 0 -10 3-4ndis.dat
3 16 -16 6 -21.5 -10 6 -10 20 6 -20
3 16 20 6 -20 -10 6 -10 0 6 -10
3 16 20 6 -20 0 6 -10 10 6 -10
3 16 20 6 -20 10 6 -10 10 6 0
3 16 20 6 -20 10 6 0 10 6 10
3 16 20 6 -20 10 6 10 21.5 6 16
3 16 21.5 6 16 10 6 10 0 6 10
3 16 -10 6 -10 -16 6 -21.5 -10 6 0
3 16 -10 6 0 -16 6 -21.5 -16 6 10.588

0 BFC INVERTNEXT
1 16 -10 0 10 .17678 0 -.17678 0 6 0 .17678 0 .17678 2-4con11.dat
1 16 -10 6 10 1.94454 0 -1.94454 0 1 0 1.94454 0 1.94454 2-4chrd.dat
1 16 -10 6 10 1.94454 0 -1.94454 0 1 0 1.94454 0 1.94454 2-4edge.dat
3 16 -7.099 6 2.941 -11.945 6 8.055 -12.121 0 7.879
3 16 -12.121 0 7.879 -7.391 0 3.062 -7.099 6 2.941
3 16 -2.941 6 7.099 -3.062 0 7.391 -7.879 0 12.121
3 16 -7.879 0 12.121 -8.055 6 11.945 -2.941 6 7.099
4 16 0 0 8 -3.062 0 7.391 -2.941 6 7.099 0 9.5 7.5
4 16 -7.391 0 3.062 -8 0 0 -7.5 9.5 0 -7.099 6 2.941
2 24 -11.9446 6 8.0554 -7.0994 6 2.9407
2 24 -8.0554 6 11.9446 -2.9407 6 7.0994
2 24 -9.239 6 3.827 -9.239 9.5 3.827
2 24 -3.827 6 9.239 -3.827 9.5 9.239
5 24 -7.0994 6 2.9407 -12.1214 0 7.8786 -7.391 0 3.062 -11.945 6 8.055
5 24 -2.9412 6 7.0992 -7.879 0 12.121 -3.062 0 7.391 -8.055 6 11.945
3 16 0 9.5 7.5 -2.941 6 7.099 -2.8703 9.5 6.9293
3 16 -7.0994 6 2.9407 -7.5 9.5 0 -6.9293 9.5 2.8703
4 16 -3.827 6 9.239 0 6 10 0 9.5 10 -3.827 9.5 9.239
4 16 -10 9.5 0 -10 6 0 -9.239 6 3.827 -9.239 9.5 3.827
4 16 -7.5 9.5 0 -10 9.5 0 -9.239 9.5 3.827 -6.9293 9.5 2.8703
4 16 0 9.5 10 0 9.5 7.5 -2.8703 9.5 6.9293 -3.827 9.5 9.239
3 16 -3.827 9.5 9.239 -2.8703 9.5 6.9293 -5.3033 9.5 5.3033
4 16 -6.9293 9.5 2.8703 -9.239 9.5 3.827 -16 9.5 10.588 -5.3033 9.5 5.3033
4 16 -9.239 6 3.827 -16 6 10.588 -16 9.5 10.588 -9.239 9.5 3.827
4 16 -10.588 9.5 16 -10.588 6 16 -3.827 6 9.239 -3.827 9.5 9.239
2 24 -9.239 6 3.827 -16 6 10.588
2 24 -10.588 6 16 -10.588 9.5 16
4 16 -16 9.5 10.588 -10.588 9.5 16 -3.827 9.5 9.239 -5.3033 9.5 5.3033
3 16 -16 9.5 10.588 -16 9.5 16 -10.588 9.5 16
2 24 -16 9.5 16 -10.588 9.5 16
2 24 -10.588 9.5 16 -3.827 9.5 9.239
2 24 -3.827 9.5 9.239 0 9.5 10
2 24 -10 9.5 0 -9.239 9.5 3.827
2 24 -10 6 0 -9.239 6 3.827
2 24 -9.239 9.5 3.827 -16 9.5 10.588
2 24 -3.827 6 9.239 0 6 10
2 24 -3.827 6 9.239 -10.588 6 16
3 16 -16 6 10.588 -9.239 6 3.827 -10 6 0
3 16 -3.827 6 9.239 -10.588 6 16 0 6 10
3 16 0 6 10 -10.588 6 16 21.5 6 16
2 24 -3.062 0 7.391 -2.941 6 7.099
2 24 -7.3912 0 3.0616 -7.0994 6 2.9407
2 24 -5.4335 6 5.4335 -7.0994 6 2.9407
2 24 -2.9412 6 7.0992 -5.4335 6 5.4335
4 16 -7.0994 6 2.9407 -6.9293 9.5 2.8703 -5.3033 9.5 5.3033 -5.4335 6 5.4335
4 16 -5.4335 6 5.4335 -5.3033 9.5 5.3033 -2.8703 9.5 6.9293 -2.9412 6 7.0992
3 16 -7.0994 6 2.9407 -5.4335 6 5.4335 -11.945 6 8.055
3 16 -11.945 6 8.055 -5.4335 6 5.4335 -8.0554 6 11.9446
3 16 -8.0554 6 11.9446 -5.4335 6 5.4335 -2.9412 6 7.0992
3 16 -10 0 18.4853 -20 0 20 -14.2426 0 14.2426
3 16 -14.2426 0 14.2426 -20 0 20 -18.4853 0 10
4 16 -14.2427 0 -5.7573 -14.2427 0 5.7573 -18.4853 0 10 -18.4853 0 -10
1 16 0 0 20 -5.75736 0 5.75736 0 1 0 -5.75736 0 -5.75736 1-4chrd.dat
1 16 20 0 0 -5.75736 0 -5.75736 0 1 0 5.75736 0 -5.75736 1-4chrd.dat
1 16 0 0 -20 5.75736 0 -5.75736 0 1 0 5.75736 0 5.75736 1-4chrd.dat
1 16 10 0 10 4.24264 0 4.24264 0 1 0 -4.24264 0 4.24264 2-4ndis.dat
1 16 10 0 -10 -4.24264 0 4.24264 0 1 0 -4.24264 0 -4.24264 2-4ndis.dat
4 16 -10 0 18.4853 -5.7574 0 14.2426 5.7574 0 14.2426 10 0 18.4853
4 16 18.4853 0 10 14.2426 0 5.7574 14.2426 0 -5.7574 18.4853 0 -10
4 16 10 0 -18.4853 5.7574 0 -14.2426 -5.7574 0 -14.2426 -10 0 -18.4853
3 16 -20 0 20 -10 0 18.4853 10 0 18.4853
3 16 -18.4853 0 10 -20 0 20 -18.4853 0 -10

0 // Top Stud
1 16 10 -4 10 4.24264 0 4.24264 0 4 0 -4.24264 0 4.24264 2-4cylc.dat
1 16 -10 -4 10 4.24264 0 -4.24264 0 4 0 4.24264 0 4.24264 2-4cylo.dat
1 16 10 -4 -10 -4.24264 0 4.24264 0 4 0 -4.24264 0 -4.24264 2-4cylc.dat
1 16 -10 -4 -10 -4.24264 0 -4.24264 0 4 0 4.24264 0 -4.24264 2-4cylc.dat
1 16 20 -4 0 -5.757362 0 -5.757362 0 1 0 5.757362 0 -5.757362 1-4ndis.dat
0 BFC INVERTNEXT
1 16 20 -4 0 -5.757362 0 -5.757362 0 4 0 5.757362 0 -5.757362 1-4cylo.dat
1 16 0 -4 20 -5.757362 0 5.757362 0 1 0 -5.757362 0 -5.757362 1-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -4 20 -5.757362 0 5.757362 0 4 0 -5.757362 0 -5.757362 1-4cylo.dat
1 16 0 -4 -20 5.757362 0 -5.757362 0 1 0 5.757362 0 5.757362 1-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -4 -20 5.757362 0 -5.757362 0 4 0 5.757362 0 5.757362 1-4cylo.dat
1 16 -20 -4 0 5.757362 0 5.757362 0 1 0 -5.757362 0 5.757362 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -20 -4 0 5.757362 0 5.757362 0 4 0 -5.757362 0 5.757362 1-4cyli.dat
1 16 -20 -4 0 5.757362 0 5.757362 0 1 0 -5.757362 0 5.757362 1-4edge.dat
3 16 10 -4 10 8 -4 8 14.24264 -4 5.75736
3 16 8 -4 8 10 -4 10 5.75736 -4 14.24264
4 16 8 -4 8 8 -4 0 8.485276 -4 0 14.24264 -4 5.75736
4 16 0 -4 8.48528 0 -4 8 8 -4 8 5.75736 -4 14.24264
3 16 10 -4 -10 8 -4 -8 5.75736 -4 -14.24264
3 16 8 -4 -8 10 -4 -10 14.24264 -4 -5.75736
4 16 8 -4 -8 0 -4 -8 0 -4 -8.485276 5.75736 -4 -14.24264
4 16 8.485276 -4 0 8 -4 0 8 -4 -8 14.24264 -4 -5.75736
3 16 -10 -4 -10 -8 -4 -8 -14.24264 -4 -5.75736
3 16 -8 -4 -8 -10 -4 -10 -5.75736 -4 -14.24264
4 16 -8 -4 -8 -8 -4 0 -8.485276 -4 0 -14.24264 -4 -5.75736
4 16 0 -4 -8.485276 0 -4 -8 -8 -4 -8 -5.75736 -4 -14.24264

1 16 -20 0 0 5.757362 0 5.757362 0 1 0 -5.757362 0 5.757362 1-4edge.dat

0 BFC INVERTNEXT
1 16 0 0 0 -8 0 0 0 -4 0 0 0 -8 3-4cyli.dat
1 16 0 -4 0 -8 0 0 0 1 0 0 0 -8 3-4edge.dat
1 16 0 -4 0 -8 0 0 0 1 0 0 0 -8 3-4ndis.dat

1 16 -10 -4 10 -2.12132 0 -2.12132 0 1 0 -2.12132 0 2.12132 2-4ring1.dat
0 BFC INVERTNEXT
1 16 -10 -4 10 -2.12132 0 -2.12132 0 4 0 -2.12132 0 2.12132 2-4cyli.dat
1 16 -10 -4 10 -2.12132 0 -2.12132 0 1 0 -2.12132 0 2.12132 2-4edge.dat

3 16 -8.485276 -4 0 -8 -4 0 -7.3912 -4 3.0616
3 16 -8.485276 -4 0 -7.3912 -4 3.0616 -14.24264 -4 5.75736
3 16 -14.24264 -4 5.75736 -7.3912 -4 3.0616 -12.12132 -4 7.87868
3 16 0 -4 8 0 -4 8.48528 -3.0616 -4 7.3912
3 16 -3.0616 -4 7.3912 0 -4 8.48528 -7.87868 -4 12.12132
3 16 -7.87868 -4 12.12132 0 -4 8.48528 -5.75731 -4 14.24269

1 16 -5.47014 -2 9.75626 0 1 -2.40854 -2 0 0 0 0 2.36506 rect1.dat
1 16 -1.5308 -2 7.6956 0 -1 -1.5308 -2 0 0 0 0 -.3044 rect2a.dat
1 16 -9.75626 -2 5.47014 0 0 -2.36506 -2 0 0 0 -1 2.40854 rect1.dat
1 16 -7.6956 -2 1.5308 0 0 .3044 -2 0 0 0 1 1.5308 rect2a.dat
5 24 -8 0 0 -8 -4 0 -7.3912 -4 3.0616 -7.3912 -4 -3.0616
5 24 0 0 8 0 -4 8 -3.0616 -4 7.3912 3.0616 -4 7.3912

0 // Condlines Stud/Hole
5 24 -3.062 0 7.391 -7.879 0 12.121 -3.0616 -4 7.3912 -2.941 6 7.099
5 24 -5.6568 0 -5.6568 -7.3912 0 -3.0616 -7.3912 -4 -3.0616 -5.3033 9.5 -5.3033
5 24 -12.7718 0 11.1481 -12.1214 0 12.1214 -12.1213 -4 12.1213 -11.9446 6 11.9446
5 24 3.0616 0 -7.3912 0 0 -8 0 -4 -8 2.8703 9.5 -6.9293
5 24 -3.0616 0 -7.3912 -5.6568 0 -5.6568 -5.6568 -4 -5.6568 -2.8703 9.5 -6.9293
5 24 -6.9293 9.5 2.8703 -7.0994 6 2.9407 -5.3033 9.5 5.3033 -7.5 9.5 0
5 24 -12.1214 0 12.1214 -11.1481 0 12.7718 -11.1481 -4 12.7717 -11.0524 6 12.5408
5 24 8 0 0 7.3912 0 -3.0616 7.5 9.5 0 7.3912 -4 -3.0616
5 24 -7.3912 0 -3.0616 -8 0 0 -8 -4 0 -6.9293 9.5 -2.8703
5 24 -12.7718 0 8.8519 -13 0 10 -12.750025036 6 10 -13 -4 10
5 24 3.0616 0 7.3912 5.6568 0 5.6568 5.3033 9.5 5.3033 5.6568 -4 5.6568
5 24 5.6568 0 -5.6568 3.0616 0 -7.3912 5.3033 9.5 -5.3033 3.0616 -4 -7.3912
5 24 -13 0 10 -12.7718 0 11.1481 -12.5408 6 11.0524 -12.7717 -4 11.1481
5 24 5.6568 0 5.6568 7.3912 0 3.0616 6.9293 9.5 2.8703 7.3912 -4 3.0616
5 24 -12.1214 0 7.8786 -7.3912 0 3.0616 -7.099 6 2.941 -7.3912 -4 3.0616
5 24 0 0 8 3.0616 0 7.3912 2.8703 9.5 6.9293 3.0616 -4 7.3912
5 24 -2.9412 6 7.0992 -2.8703 9.5 6.9293 -5.4335 6 5.4335 0 9.5 7.5
5 24 -12.1214 0 7.8786 -12.7718 0 8.8519 -12.7717 -4 8.8519 -12.5408 6 8.9476
5 24 0 0 -8 -3.0616 0 -7.3912 -3.0616 -4 -7.3912 0 9.5 -7.5
5 24 -8.8519 0 12.7717 -7.879 0 12.121 -7.8787 -4 12.1213 -8.0554 6 11.9446
5 24 -10 0 13 -8.8519 0 12.7717 -8.8519 -4 12.7717 -8.9476 6 12.5408
5 24 -5.3033 9.5 5.3033 -5.4335 6 5.4335 -7.0994 6 2.9407 -2.8703 9.5 6.9293
5 24 0 0 8 -3.062 0 7.391 -2.941 6 7.099 0 -4 8
5 24 -11.1481 0 12.7718 -10 0 13 -10 -4 13 -10 6 12.750025036
5 24 7.3912 0 -3.0616 5.6568 0 -5.6568 6.9293 9.5 -2.8703 5.6568 -4 -5.6568
5 24 7.3912 0 3.0616 8 0 0 8 -4 0 7.5 9.5 0
5 24 -7.3912 0 3.0616 -8 0 0 -8 -4 0 -7.5 9.5 0

Status

Official

This part has the following errors

Decimal precision exceeds 5 significant places

Line 103: 1 16 20 -4 0 -5.757362 0 -5.757362 0 1 0 5.757362 0 -5.757362 1-4ndis.dat

Line 105: 1 16 20 -4 0 -5.757362 0 -5.757362 0 4 0 5.757362 0 -5.757362 1-4cylo.dat

Line 106: 1 16 0 -4 20 -5.757362 0 5.757362 0 1 0 -5.757362 0 -5.757362 1-4ndis.dat

Line 108: 1 16 0 -4 20 -5.757362 0 5.757362 0 4 0 -5.757362 0 -5.757362 1-4cylo.dat

Line 109: 1 16 0 -4 -20 5.757362 0 -5.757362 0 1 0 5.757362 0 5.757362 1-4ndis.dat

Line 111: 1 16 0 -4 -20 5.757362 0 -5.757362 0 4 0 5.757362 0 5.757362 1-4cylo.dat

Line 112: 1 16 -20 -4 0 5.757362 0 5.757362 0 1 0 -5.757362 0 5.757362 1-4ndis.dat

Line 114: 1 16 -20 -4 0 5.757362 0 5.757362 0 4 0 -5.757362 0 5.757362 1-4cyli.dat

Line 115: 1 16 -20 -4 0 5.757362 0 5.757362 0 1 0 -5.757362 0 5.757362 1-4edge.dat

Line 118: 4 16 8 -4 8 8 -4 0 8.485276 -4 0 14.24264 -4 5.75736

Line 122: 4 16 8 -4 -8 0 -4 -8 0 -4 -8.485276 5.75736 -4 -14.24264

Line 123: 4 16 8.485276 -4 0 8 -4 0 8 -4 -8 14.24264 -4 -5.75736

Line 126: 4 16 -8 -4 -8 -8 -4 0 -8.485276 -4 0 -14.24264 -4 -5.75736

Line 127: 4 16 0 -4 -8.485276 0 -4 -8 -8 -4 -8 -5.75736 -4 -14.24264

Line 129: 1 16 -20 0 0 5.757362 0 5.757362 0 1 0 -5.757362 0 5.757362 1-4edge.dat

Line 141: 3 16 -8.485276 -4 0 -8 -4 0 -7.3912 -4 3.0616

Line 142: 3 16 -8.485276 -4 0 -7.3912 -4 3.0616 -14.24264 -4 5.75736

Line 165: 5 24 -12.7718 0 8.8519 -13 0 10 -12.750025036 6 10 -13 -4 10

Line 179: 5 24 -11.1481 0 12.7718 -10 0 13 -10 -4 13 -10 6 12.750025036
