Official File parts/s/67902s01.dat
File Header:

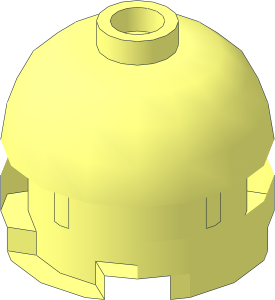

0 ~Minifig Head Minion 2 x 2 x 1.333 - without Goggles and Patternable Surface
0 Name: s\67902s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
Show contents
0 // Centre
1 16 0 4 0 -1 0 0 0 -7 0 0 0 1 stud4.dat
1 16 0 26 0 -1 0 0 0 -22 0 0 0 1 axl3hol6.dat
1 16 0 26 0 -1 0 0 0 1 0 0 0 1 axl3hol3.dat
1 16 0 12 0 -1 0 0 0 1 0 0 0 1 axl3hol2.dat
0 BFC INVERTNEXT
1 16 0 4 0 4.5 0 0 0 8 0 0 0 4.5 4-4cylc.dat
1 16 0 12 0 1.5 0 0 0 -1 0 0 0 1.5 4-4ring3.dat
2 24 -3.5616 12 -2.6139 -3.5616 4 -2.6139
2 24 -2.6139 12 -3.5616 -2.6139 4 -3.5616
2 24 2.0121 4 -3.9638 2.0121 12 -3.9638
2 24 3.9638 12 -2.0121 3.9638 4 -2.0121
2 24 -3.5616 12 -2.6139 -5.2127 12 -2.791
2 24 -2.791 12 -5.2127 -2.6139 12 -3.5616
2 24 2 12 -4 2 12 -5.602
2 24 2 12 -4 2.0121 12 -3.9638
2 24 5.602 12 -2 4 12 -2
2 24 3.9638 12 -2.0121 4 12 -2
2 24 3.5616 12 2.6139 3.5616 4 2.6139
2 24 2.6139 12 3.5616 2.6139 4 3.5616
2 24 -2.0121 4 3.9638 -2.0121 12 3.9638
2 24 -3.9638 12 2.0121 -3.9638 4 2.0121
2 24 3.5616 12 2.6139 5.2127 12 2.791
2 24 2.791 12 5.2127 2.6139 12 3.5616
2 24 -2 12 4 -2 12 5.602
2 24 -2 12 4 -2.0121 12 3.9638
2 24 -5.602 12 2 -4 12 2
2 24 -3.9638 12 2.0121 -4 12 2
1 16 0 24 0 0 0 1 0 1 0 -1 0 0 s\67902s06.dat
1 16 0 24 0 -1 0 0 0 1 0 0 0 -1 s\67902s05.dat
1 16 0 24 0 0 0 -1 0 1 0 1 0 0 s\67902s05.dat
1 16 0 24 0 1 0 0 0 1 0 0 0 1 s\67902s05.dat
0 // Ribs
1 16 -.75 20 11.8509 0 -.75 0 0 0 4 -4 -.1491 0 box2-7.dat
1 16 .75 20 11.8509 0 .75 0 0 0 4 -4 -.1491 0 box2-7.dat
1 16 11.8509 20 .75 -4 -.1491 0 0 0 4 0 .75 0 box2-7.dat
1 16 11.8509 20 -.75 -4 -.1491 0 0 0 4 0 -.75 0 box2-7.dat
1 16 .75 20 -11.8509 0 .75 0 0 0 4 4 .1491 0 box2-7.dat
1 16 -.75 20 -11.8509 0 -.75 0 0 0 4 4 .1491 0 box2-7.dat
1 16 -11.8509 20 -.75 4 .1491 0 0 0 4 0 -.75 0 box2-7.dat
1 16 -11.8509 20 .75 4 .1491 0 0 0 4 0 .75 0 box2-7.dat
0 // Inner Sides
0 BFC INVERTNEXT
1 16 0 16 0 16 0 0 0 12 0 0 0 16 4-4cyli.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\67902s07.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\67902s07.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\67902s07.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\67902s07.dat
0 // Outer Surface
1 16 0 22 0 0 0 20 0 6 0 20 0 0 3-8cyli.dat
1 16 0 22 0 0 0 -20 0 6 0 20 0 0 3-8cyli.dat
5 24 14.142 28 -14.142 14.142 22 -14.142 18.478 22 -7.654 7.6544 22.6274071 -18.4784
5 24 -14.142 28 -14.142 -14.142 22 -14.142 -7.6544 22.6274071 -18.4784 -18.478 22 -7.654
1 16 0 16 0 8 0 0 0 -10.667 0 0 0 -8 r04o1500.dat
1 16 0 16 0 0 0 -8 0 -10.667 0 -8 0 0 r04o1500.dat
1 16 0 16 0 -8 0 0 0 -10.667 0 0 0 8 r04o1500.dat
1 16 0 16 0 0 0 8 0 -10.667 0 8 0 0 r04o1500.dat
1 16 0 0 0 8 0 0 0 1 0 0 0 8 4-4disc.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stud2.dat
Status:
Official
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 68: 5 24 14.142 28 -14.142 14.142 22 -14.142 18.478 22 -7.654 7.6544 22.6274071 -18.4784Line 69: 5 24 -14.142 28 -14.142 -14.142 22 -14.142 -7.6544 22.6274071 -18.4784 -18.478 22 -7.654
