File Detail parts/s/69182s02.dat

Official File parts/s/69182s02.dat

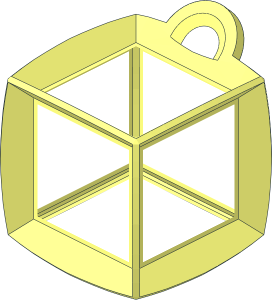

~Die 6 Sides 3 x 3 x 3 with Loop on One Edge - Rubber Part

File Header:

0 ~Die  6 Sides  3 x  3 x  3 with Loop on One Edge - Rubber Part
0 Name: s\69182s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\69182s03.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\69182s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\69182s03.dat

1 16 0 31.75 -31.75 1 0 0 0 0 -1 0 1 0 s\69182s03.dat
1 16 -31.75 31.75 0 0 1 0 0 0 -1 -1 0 0 s\69182s03.dat
1 16 0 31.75 31.75 -1 0 0 0 0 -1 0 -1 0 s\69182s03.dat
1 16 31.75 31.75 0 0 -1 0 0 0 -1 1 0 0 s\69182s03.dat

1 16 0 63.5 0 1 0 0 0 -1 0 0 0 1 s\69182s03.dat
1 16 0 63.5 0 0 0 1 0 -1 0 -1 0 0 s\69182s03.dat
1 16 0 63.5 0 -1 0 0 0 -1 0 0 0 -1 s\69182s03.dat
1 16 0 63.5 0 0 0 -1 0 -1 0 1 0 0 s\69182s03.dat

2 24 29.75 0 29.75 37.4134 -7.6634 37.4134
2 24 29.75 0 -29.75 37.4134 -7.6634 -37.4134
2 24 -37.4134 -7.6634 -37.4134 -29.75 0 -29.75
2 24 -29.75 0 29.75 -37.4134 -7.6634 37.4134
2 24 -31.75 2 29.75 -39.4134 -5.6634 37.4134
2 24 -39.4134 69.1634 37.4134 -31.75 61.5 29.75
2 24 -39.4134 69.1634 -37.4134 -31.75 61.5 -29.75
2 24 -39.4134 -5.6634 -37.4134 -31.75 2 -29.75
2 24 -29.75 2 -31.75 -37.4134 -5.6634 -39.4134
2 24 -29.75 61.5 -31.75 -37.4134 69.1634 -39.4134
2 24 29.75 61.5 -31.75 37.4134 69.1634 -39.4134
2 24 29.75 2 -31.75 37.4134 -5.6634 -39.4134
2 24 31.75 2 -29.75 39.4134 -5.6634 -37.4134
2 24 31.75 61.5 -29.75 39.4134 69.1634 -37.4134
2 24 39.4134 69.1634 37.4134 31.75 61.5 29.75
2 24 31.75 2 29.75 39.4134 -5.6634 37.4134
2 24 29.75 2 31.75 37.4134 -5.6634 39.4134
2 24 29.75 61.5 31.75 37.4134 69.1634 39.4134
2 24 -29.75 61.5 31.75 -37.4134 69.1634 39.4134
2 24 -29.75 2 31.75 -37.4134 -5.6634 39.4134
2 24 29.75 63.5 -29.75 37.4134 71.1634 -37.4134
2 24 -29.75 63.5 -29.75 -37.4134 71.1634 -37.4134
2 24 -29.75 63.5 29.75 -37.4134 71.1634 37.4134
2 24 37.4134 71.1634 37.4134 29.75 63.5 29.75

0 // Corners
3 16 -37.4134 -7.6634 -37.4134 -39.4134 -5.6634 -37.4134 -37.4134 -5.6634 -39.4134
3 16 37.4134 -7.6634 -37.4134 37.4134 -5.6634 -39.4134 39.4134 -5.6634 -37.4134
3 16 37.4134 -5.6634 39.4134 37.4134 -7.6634 37.4134 39.4134 -5.6634 37.4134
3 16 -39.4134 -5.6634 37.4134 -37.4134 -7.6634 37.4134 -37.4134 -5.6634 39.4134
3 16 -39.4134 69.1634 37.4134 -37.4134 69.1634 39.4134 -37.4134 71.1634 37.4134
3 16 -37.4134 69.1634 -39.4134 -39.4134 69.1634 -37.4134 -37.4134 71.1634 -37.4134
3 16 37.4134 69.1634 -39.4134 37.4134 71.1634 -37.4134 39.4134 69.1634 -37.4134
3 16 37.4134 71.1634 37.4134 37.4134 69.1634 39.4134 39.4134 69.1634 37.4134

0 // Loop
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\69182s04.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\69182s04.dat
1 16 0 31.75 31.75 -1 0 0 0 0 -1 0 -1 0 s\69182s04.dat
1 16 0 31.75 31.75 1 0 0 0 0 -1 0 -1 0 s\69182s04.dat
1 16 0 -6.5251 38.2751 9.50005 0 0 0 1 -6.71752 0 0 6.71751 48\2-4edge.dat
2 24 -9.5 -4.5669 36.3169 -9.50005 -6.5251 38.2751
2 24 9.5 -6.5251 38.2751 9.5 -4.5669 36.3169
1 16 0 -4.4644 40.3358 0 0 -20 -14.1422 -4.1214 0 14.1422 -4.1214 0 48\11-48cylo.dat
2 24 -19.828 -10.4314 38.06 -19.828 -6.31 42.1814
1 16 0 -4.4644 40.3358 0 0 20 -14.1422 -4.1214 0 14.1422 -4.1214 0 48\11-48cylo.dat
2 24 19.828 -6.31 42.1814 19.828 -10.4314 38.06

4 16 -29.75 0 29.75 -27.5 0 27.5 27.5 0 27.5 29.75 0 29.75
4 16 29.75 2 31.75 27.5 4.25 31.75 -27.5 4.25 31.75 -29.75 2 31.75
3 16 29.75 2 31.75 -29.75 2 31.75 0 -2.2386 37.5835
4 16 -37.4134 -7.6634 37.4134 -29.75 -9.5607 37.1893 -29.75 -5.4393 41.3107 -37.4134 -5.6634 39.4134
4 16 -29.75 -5.4393 41.3107 -29.75 -9.5607 37.1893 -19.828 -10.4314 38.06 -19.828 -6.31 42.1814
4 16 29.75 -5.4393 41.3107 29.75 -9.5607 37.1893 37.4134 -7.6634 37.4134 37.4134 -5.6634 39.4134
4 16 29.75 -5.4393 41.3107 19.828 -6.31 42.1814 19.828 -10.4314 38.06 29.75 -9.5607 37.1893
3 16 -29.75 0 29.75 29.75 0 29.75 0 -5.8335 33.9886
3 16 5.475 -6.0867 34.2163 9.5 -4.5669 36.3169 5.475 -2.4663 37.8367
3 16 -9.5 -4.5669 36.3169 -5.475 -6.0867 34.2163 -5.475 -2.4663 37.8367
4 16 -5.475 -2.4663 37.8367 -5.475 -6.0867 34.2163 0 -5.8335 33.9886 0 -2.2386 37.5835
4 16 0 -2.2386 37.5835 0 -5.8335 33.9886 5.475 -6.0867 34.2163 5.475 -2.4663 37.8367
2 24 29.75 0 29.75 -29.75 0 29.75
2 24 -29.75 2 31.75 29.75 2 31.75
5 24 -29.75 -9.5607 37.1893 -29.75 -5.4393 41.3107 -37.4134 -5.6634 39.4134 -19.828 -10.4314 38.06
5 24 5.475 -2.4663 37.8367 5.475 -6.0867 34.2163 9.5 -4.5669 36.3169 0 -2.2386 37.5835
5 24 0 -5.8335 33.9886 0 -2.2386 37.5835 -5.475 -2.4663 37.8367 5.475 -6.0867 34.2163
5 24 -5.475 -6.0867 34.2163 -5.475 -2.4663 37.8367 -9.5 -4.5669 36.3169 0 -5.8335 33.9886
5 24 29.75 -5.4393 41.3107 29.75 -9.5607 37.1893 37.4134 -7.6634 37.4134 19.828 -6.31 42.1814
5 24 37.4134 -5.6634 39.4134 37.4134 -7.6634 37.4134 29.75 -5.4393 41.3107 39.4134 -5.6634 37.4134
5 24 -37.4134 -7.6634 37.4134 -37.4134 -5.6634 39.4134 -29.75 -9.5607 37.1893 -39.4134 -5.6634 37.4134
