File Detail parts/s/69702s01.dat

Unofficial File parts/s/69702s01.dat

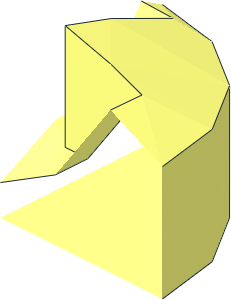

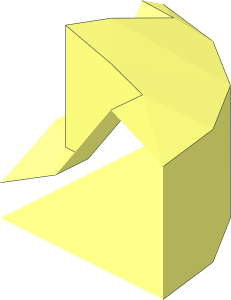

~Screw 22 x 4.5 Dome Flat/Cruciform Head Quarter

File Header:

0 ~Screw 22 x  4.5 Dome Flat/Cruciform Head Quarter
0 Name: s\69702s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 4.5 0 0 0 -3 0 0 0 4.5 1-4cylc.dat
2 24 0.9 -3.9993 2.1727 0.9 -4.3584 0.9
2 24 0.9 -3.9993 2.1727 0.9 -3.3 3.9
2 24 3.03 -3.6545 0.9 2.1727 -3.9993 0.9
2 24 2.1727 -3.9993 0.9 0.9 -4.3584 0.9
2 24 .9 -3.3 3.9 0 -3.3209 3.9138
2 24 3.03 -3.6545 .9 3.0567 -3.6911 0
3 16 2.1727 -3.9993 0.9 3.182 -3 3.182 0.9 -3.9993 2.1727
3 16 2.1727 -3.9993 0.9 4.1576 -3 1.7222 3.182 -3 3.182
5 24 2.1727 -3.9993 0.9 3.182 -3 3.182 4.1576 -3 1.7222 0.9 -3.9993 2.1727
3 16 0.9 -3.9993 2.1727 0.9 -4.3584 0.9 2.1727 -3.9993 0.9
3 16 3.182 -3 3.182 1.7222 -3 4.1576 0.9 -3.9993 2.1727
5 24 0.9 -3.9993 2.1727 3.182 -3 3.182 1.7222 -3 4.1576 2.1727 -3.9993 0.9
3 16 0.9 -3.3 3.9 0.9 -3.9993 2.1727 1.7222 -3 4.1576
3 16 0.9 -3.3 3.9 1.7222 -3 4.1576 0 -3 4.5
3 16 .9 -3.3 3.9 0 -3 4.5 0 -3.3209 3.9138
3 16 3.03 -3.6545 .9 3.0567 -3.6911 0 4.5 -3 0
3 16 3.03 -3.6545 0.9 4.5 -3 0 4.1576 -3 1.7222
3 16 3.03 -3.6545 0.9 4.1576 -3 1.7222 2.1727 -3.9993 0.9
2 24 0.9 -1.6 2.78 0 -1.6 2.78
2 24 1.53 -1.6 0.9 1.53 -1.6 0
4 16 0 -1.6 2.78 .9 -1.6 2.78 .9 -3.3 3.9 0 -3.3209 3.9138
4 16 1.53 -1.6 0 3.0567 -3.6911 0 3.03 -3.6545 .9 1.53 -1.6 .9
2 24 1.53 -1.6 0.9 3.03 -3.6545 0.9
2 24 0.9 -1.6 2.78 0.9 -3.3 3.9
2 24 0.9 -1.6 2.78 0.9 -1.6 0.9
2 24 1.53 -1.6 0.9 0.9 -1.6 0.9
4 16 0.9 -4.3584 0.9 0.9 -1.6 0.9 1.53 -1.6 0.9 2.1727 -3.9993 0.9
4 16 0.9 -1.6 0.9 0.9 -4.3584 0.9 0.9 -3.9993 2.1727 0.9 -1.6 2.78
3 16 0.9 -3.9993 2.1727 0.9 -3.3 3.9 0.9 -1.6 2.78
3 16 3.03 -3.6545 0.9 2.1727 -3.9993 0.9 1.53 -1.6 0.9
2 24 0.9 -4.3584 0.9 0.9 -1.6 0.9
4 16 0.9 -1.6 0.9 0.9 -1.6 2.78 0 -1.6 2.78 0 -1.6 1.53
3 16 0.9 -1.6 0.9 0 -0.8 0 1.53 -1.6 0
3 16 1.53 -1.6 0 1.53 -1.6 0.9 0.9 -1.6 0.9
3 16 0 -1.6 1.53 0 -0.8 0 0.9 -1.6 0.9
5 24 0 -0.8 0 0.9 -1.6 0.9 0 -1.6 1.53 1.53 -1.6 0.9
5 24 0.9 -1.6 0.9 0 -1.6 1.53 0.9 -1.6 2.78 0 -0.8 0
5 24 4.1576 -3 1.7222 3.03 -3.6545 0.9 2.1727 -3.9993 0.9 4.5 -3 0
5 24 0.9 -3.9993 2.1727 2.1727 -3.9993 0.9 0.9 -4.3584 0.9 3.182 -3 3.182
5 24 4.1576 -3 1.7222 2.1727 -3.9993 0.9 3.182 -3 3.182 3.03 -3.6545 0.9
5 24 0.9 -3.9993 2.1727 1.7222 -3 4.1576 0.9 -3.3 3.9 3.182 -3 3.182
5 24 1.7222 -3 4.1576 0.9 -3.3 3.9 0.9 -3.9993 2.1727 0 -3 4.5
5 24 0 -3 4.5 .9 -3.3 3.9 1.7222 -3 4.1576 0 -3.3209 3.9138
5 24 4.5 -3 0 3.03 -3.6545 .9 4.1576 -3 1.7222 3.0567 -3.6911 0
5 24 0 -1.6 1.53 0 -0.8 0 -0.9 -1.6 0.9 0.9 -1.6 0.9
5 24 1.53 -1.6 0 0.9 -1.6 0.9 1.53 -1.6 0.9 0 -0.8 0
5 24 0 -0.8 0 1.53 -1.6 0 0.9 -1.6 -0.9 0.9 -1.6 0.9
5 24 0 -3 4.5 0 -3.3209 3.9138 .9 -3.3 3.9 -.9 -3.3 3.9
5 24 3.0567 -3.6911 0 4.5 -3 0 3.03 -3.6545 .9 3.03 -3.6545 -.9
