Official File parts/s/69767s02.dat
File Header:

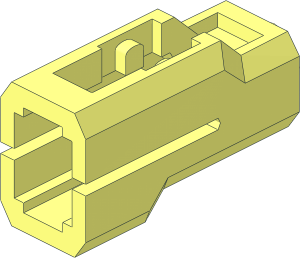

0 ~Projectile Launcher with Bar Barrel
0 Name: s\69767s02.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\69767s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\69767s01.dat
1 16 0 -20 12 0 0 -1 1 0 0 0 -1 0 stud2.dat
4 16 2.459 -13.1 -11.246 -2.459 -13.1 -11.246 -6.8 -13.1 -20.17 6.8 -13.1 -20.17
4 16 -4.6 -11.86 -21.4379 4.6 -11.86 -21.4379 6.8 -13.1 -20.17 -6.8 -13.1 -20.17
1 16 0 -10.9 -22.41945 0 0 4.6 0.96 1 0 -0.98155 0 0 rect1.dat
2 24 -6.8 -13.1 -20.17 6.8 -13.1 -20.17
4 16 4.6 -9.94 -38.2 -4.6 -9.94 -38.2 -7.4 -6.3 -38.2 7.4 -6.3 -38.2
1 16 0 -9.94 -30.8005 0 0 4.6 0 1 0 -7.3995 0 0 rect1.dat
4 16 2.459 -13.1 -11.246 2.695 -13.1552 8.2813 -2.695 -13.1552 8.2813 -2.459 -13.1 -11.246
1 16 0 -15.03915 8.28405 0 0 2.695 1.88395 0 0 -0.00275 1 0 rect1.dat
4 16 -2.695 -16.9231 8.2868 2.695 -16.9231 8.2868 6.8 -24.1 8.306 -6.8 -24.1 8.306
4 16 3.5 -24.1 1.477 -3.5 -24.1 1.477 -6.8 -24.1 8.306 6.8 -24.1 8.306
2 24 6.8 -24.1 8.306 -6.8 -24.1 8.306
1 16 0 -25.1805 1.434 -3.5 0 0 0 0 1.0805 0 1 0.043 rect2p.dat
4 16 -3.5 -26.261 3.655 -3.5 -26.261 1.391 3.5 -26.261 1.391 3.5 -26.261 3.655
4 16 5.403 -26.261 8.185 -5.403 -26.261 8.185 -3.5 -26.261 3.655 3.5 -26.261 3.655
1 16 0 -27.6805 8.185 -5.403 0 0 0 0 1.4195 0 1 0 rect2p.dat
4 16 5.403 -29.1 8.185 7.227 -29.1 12 -7.227 -29.1 12 -5.403 -29.1 8.185
2 24 -7.227 -29.1 12 7.227 -29.1 12
4 16 -7.4 -10.9 12 -7.227 -29.1 12 7.227 -29.1 12 7.4 -10.9 12
1 16 0 -6.3 -29.924 7.4 0 0 0 -1 0 0 0 -8.276 rect2p.dat
1 16 0 -8.6 -19.498 0 0 7.4 -2.3 0 0 2.15 -1 0 rect1.dat
1 16 0 -10.9 -2.674 0 0 7.4 0 -1 0 14.674 0 0 rect1.dat
1 16 0 -28.3 -34.765 -4.6 0 0 0 -1 0 0 0 1.147 rect2p.dat
1 16 0 -29.1905 -37.056 0 0 -4.6 -0.8905 -1 0 -1.144 0 0 rect1.dat
4 16 4.6 -30.081 -38.2 7.4 -33.9 -38.2 -7.4 -33.9 -38.2 -4.6 -30.081 -38.2
2 24 7.4 -33.9 -38.2 -7.4 -33.9 -38.2
4 16 -7.4 -33.9 -38.2 7.4 -33.9 -38.2 4.6 -33.9 -31.334 -4.6 -33.9 -31.334
1 16 0 -31.9215 -30.9685 4.6 0 0 0 0 1.9785 0 -1 0.3655 rect2p.dat
4 16 -4.6 -29.943 -30.603 4.6 -29.943 -30.603 4.6 -28.3 -33.618 -4.6 -28.3 -33.618
1 16 1.5308 -13.0049 -2.6 0 -3.0616 0 5.5 0 0 0 0 -4 3-16cylo.dat
4 16 -1.5308 -7.5049 0.3 1.5308 -7.5049 0.3 1.5308 -7.5049 -2.6 -1.5308 -7.5049 -2.6
2 24 -1.5308 -10.9 -6.2956 1.5308 -10.9 -6.2956
Status:
Official
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 16: 1 16 0 -10.9 -22.41945 0 0 4.6 0.96 1 0 -0.98155 0 0 rect1.datLine 21: 1 16 0 -15.03915 8.28405 0 0 2.695 1.88395 0 0 -0.00275 1 0 rect1.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
