File Detail parts/s/69910s01.dat

Official File parts/s/69910s01.dat

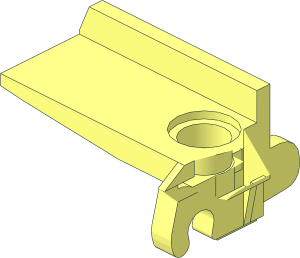

~Technic Chain Tread 7 Wide with Cleat - Half

File Header:

0 ~Technic Chain Tread 7 Wide with Cleat - Half
0 Name: s\69910s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05

Show contents
