Official File parts/s/72024s01.dat

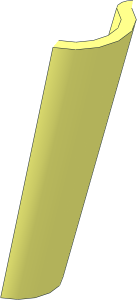

~Container 8 x 8 x 3 Cupcake - Section 1 / 20
File Header:
0 ~Container 8 x 8 x 3 Cupcake - Section 1 / 20 0 Name: s\72024s01.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Subpart UPDATE 2024-02 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05 0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives 0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
2 24 51.4976 64 10.0042 52.2464 64 10.9541 2 24 51.4976 64 10.0042 51.1692 64 8.8401 2 24 51.1692 64 8.8401 51.3966 64 7.4047 2 24 51.3966 64 7.4047 52.0686 64 6.3991 2 24 52.0686 64 6.3991 53.07274 64 5.72818 1 16 50.7 68 0 9.3 0 0 0 1 0 0 0 9.3 3-16edge.dat 1 16 50.7 68 0 9.3 0 0 0 1 0 0 0 -9.3 3-16edge.dat 1 16 50.7 68 0 9.3 0 0 0 -1 0 0 0 9.3 3-16chrd.dat 1 16 50.7 68 0 9.3 0 0 0 -1 0 0 0 -9.3 3-16chrd.dat 1 16 67.6 0 0 3.1 -16.9 0 0 68 0 0 0 3.1 3-16con3.dat 1 16 67.6 0 0 3.1 -16.9 0 0 68 0 0 0 -3.1 3-16con3.dat 1 16 67.6 0 0 3.1 0 0 0 1 0 0 0 -3.1 3-16ring3.dat 1 16 67.6 0 0 3.1 0 0 0 1 0 0 0 3.1 3-16ring3.dat 1 16 67.6 0 0 12.4 0 0 0 1 0 0 0 12.4 3-16edge.dat 1 16 67.6 0 0 12.4 0 0 0 1 0 0 0 -12.4 3-16edge.dat 1 16 67.6 0 0 9.3 0 0 0 1 0 0 0 9.3 3-16edge.dat 1 16 67.6 0 0 9.3 0 0 0 1 0 0 0 -9.3 3-16edge.dat 0 BFC INVERTNEXT 1 16 67.6 0 0 3.1 -16.9 0 0 64 0 0 0 3.1 3-16con2.dat 0 BFC INVERTNEXT 1 16 67.6 0 0 3.1 -16.9 0 0 64 0 0 0 -3.1 3-16con2.dat 1 16 50.7 64 0 6.2 0 0 0 1 0 0 0 6.2 3-16edge.dat 1 16 50.7 64 0 6.2 0 0 0 1 0 0 0 -6.2 3-16edge.dat 1 16 50.7 64 0 6.2 0 0 0 1 0 0 0 6.2 3-16chrd.dat 1 16 50.7 64 0 6.2 0 0 0 1 0 0 0 -6.2 3-16chrd.dat 3 16 56.9 64 0 53.07411 64 5.72727 53.07274 64 -5.72818 3 16 60 68 0 54.25911 68 -8.59227 54.25911 68 8.59227 4 16 69.5829 0 12.8681 69.2544 0 11.704 72.34548 0 11.45636 70.3316 0 13.818 4 16 72.34548 0 11.45636 69.2544 0 11.704 69.48139 0 10.26999 70.15347 0 9.26435 3 16 70.15347 0 9.26435 71.15911 0 8.59227 72.34548 0 11.45636 4 16 69.5829 0 12.8681 51.4976 64 10.0042 51.1692 64 8.8401 69.2544 0 11.704 4 16 70.3316 0 13.818 52.2464 64 10.9541 51.4976 64 10.0042 69.5829 0 12.8681 4 16 51.3966 64 7.4047 52.0686 64 6.3991 70.1537 0 9.264 69.4816 0 10.2697 4 16 52.0686 64 6.3991 53.0743 64 5.727 71.1593 0 8.5919 70.1537 0 9.264 4 16 51.3966 64 7.4047 69.4816 0 10.2697 69.2544 0 11.704 51.1692 64 8.8401 2 24 70.15347 0 9.26435 71.15911 0 8.59227 2 24 69.48139 0 10.26999 70.15347 0 9.26435 2 24 69.2544 0 11.704 69.48139 0 10.26999 2 24 69.2544 0 11.704 69.5829 0 12.8681 2 24 69.5829 0 12.8681 70.3316 0 13.818 5 24 52.0686 64 6.3991 70.15347 0 9.26435 71.15911 0 8.59227 69.48139 0 10.26999 5 24 51.3966 64 7.4047 69.48139 0 10.26999 51.1692 64 8.8401 52.0686 64 6.3991 5 24 51.1692 64 8.8401 69.2544 0 11.704 51.3966 64 7.4047 51.4976 64 10.0042 5 24 51.4976 64 10.0042 69.5829 0 12.8681 69.2544 0 11.704 70.3316 0 13.818 2 24 72.34548 0 -11.45636 54.25911 68 -8.59227
Status:
Official Official
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 52.0686 64 6.3991 53.07274 64 5.72818
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 56.9 64 0 53.07411 64 5.72727 53.07274 64 -5.72818
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 60 68 0 54.25911 68 -8.59227 54.25911 68 8.59227
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 69.5829 0 12.8681 69.2544 0 11.704 72.34548 0 11.45636 70.3316 0 13.818
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 72.34548 0 11.45636 69.2544 0 11.704 69.48139 0 10.26999 70.15347 0 9.26435
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 70.15347 0 9.26435 71.15911 0 8.59227 72.34548 0 11.45636
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 70.15347 0 9.26435 71.15911 0 8.59227
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 69.48139 0 10.26999 70.15347 0 9.26435
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 69.2544 0 11.704 69.48139 0 10.26999
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 5 24 52.0686 64 6.3991 70.15347 0 9.26435 71.15911 0 8.59227 69.48139 0 10.26999
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 5 24 51.3966 64 7.4047 69.48139 0 10.26999 51.1692 64 8.8401 52.0686 64 6.3991
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 72.34548 0 -11.45636 54.25911 68 -8.59227
  • Number in description may need a leading space
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
