File Detail parts/s/73110s01.dat

Official File parts/s/73110s01.dat

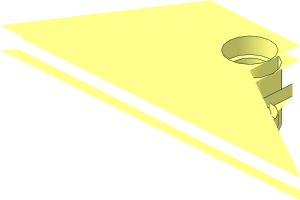

~Plate 6 x 6 with Five Pin Holes - Quarter

File Header:

0 ~Plate  6 x  6 with Five Pin Holes - Quarter
0 Name: s\73110s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
