File Detail parts/s/74166s02.dat

Official File parts/s/74166s02.dat

File Header:

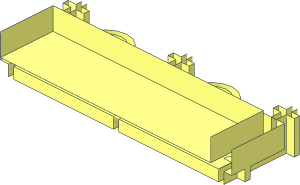

0 ~Cutout  1 x  4 with Fillets
0 Name: s\74166s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05

Show contents

1 16 0 8 -6 39 0 0 0 4 0 0 0 10 box2-7.dat
1 16 0 4 -6 44 0 0 0 1 0 0 0 10 recte3.dat
1 16 -20 14 -16 19 0 0 0 0 2 0 -1 0 rect2p.dat
1 16 20 14 -16 19 0 0 0 0 2 0 -1 0 rect2p.dat

1 16 42.5 8 -2.5 1.5 0 0 0 4 0 0 0 6.5 box2-7.dat
1 16 42.5 12 -13.5 1.5 0 0 0 -1 0 0 0 -2.5 rect2a.dat
4 16 44 4 -16 44 12 -11 44 12 -9 44 4 4
3 16 44 12 -16 44 12 -11 44 4 -16
3 16 44 12 -9 44 12 4 44 4 4
2 24 44 4 -16 44 12 -16

1 16 40 4 10.875 0 0 -1 0 12 0 -1.125 0 0 box3u8p.dat
1 16 39 10 8.75 0 -3 0 0 0 6 1 0 0 box4-2p.dat
1 16 41 10 8.75 0 3 0 0 0 6 -1 0 0 box4-2p.dat
4 16 39 16 9.75 41 16 9.75 41 16 7.75 39 16 7.75
2 24 39 4 4 39 4 7.75
2 24 41 4 4 41 4 7.75
4 16 41 12 4 41 16 7.75 41 4 7.75 41 4 4
4 16 41 16 7.75 41 12 4 41 12 -9 41 16 -9
4 16 39 16 -9 39 12 -9 39 12 4 39 16 7.75
4 16 39 4 7.75 39 16 7.75 39 12 4 39 4 4
1 16 40 16 -.625 0 0 1 0 -1 0 8.375 0 0 rect2p.dat
4 16 41 16 -11 39 16 -11 39 16 -9 41 16 -9
1 16 39 14 -10 0 -3 0 0 0 2 1 0 0 box4-2p.dat
1 16 41 14 -10 0 3 0 0 0 2 -1 0 0 box4-3p.dat
1 16 40 12 -13.5 0 0 1 0 4 0 -2.5 0 0 box3u6.dat

1 16 0 4 10.875 0 0 1 0 12 0 -1.125 0 0 box3u8p.dat
1 16 1 10 8.75 0 3 0 0 0 6 1 0 0 box4-2p.dat
1 16 -1 10 8.75 0 -3 0 0 0 6 -1 0 0 box4-2p.dat
4 16 -1 16 7.75 -1 16 9.75 1 16 9.75 1 16 7.75
2 24 1 4 4 1 4 7.75
2 24 -1 4 4 -1 4 7.75
4 16 -1 4 7.75 -1 16 7.75 -1 12 4 -1 4 4
4 16 -1 12 -9 -1 12 4 -1 16 7.75 -1 16 -9
4 16 1 12 4 1 12 -9 1 16 -9 1 16 7.75
4 16 1 12 4 1 16 7.75 1 4 7.75 1 4 4
1 16 0 16 -.625 0 0 -1 0 -1 0 8.375 0 0 rect2p.dat
4 16 1 16 -9 1 16 -11 -1 16 -11 -1 16 -9
1 16 1 14 -10 0 3 0 0 0 2 1 0 0 box4-2p.dat
1 16 -1 14 -10 0 -3 0 0 0 2 -1 0 0 box4-2p.dat
1 16 0 12 -13.5 0 0 -1 0 4 0 -2.5 0 0 box3u6.dat
2 24 1 4 4 1 12 4
2 24 1 12 4 1 12 -9
2 24 -1 12 -9 -1 12 4
2 24 -1 12 4 -1 4 4

1 16 -40 4 10.875 0 0 1 0 12 0 -1.125 0 0 box3u8p.dat
1 16 -39 10 8.75 0 3 0 0 0 6 1 0 0 box4-2p.dat
1 16 -41 10 8.75 0 -3 0 0 0 6 -1 0 0 box4-2p.dat
4 16 -41 16 7.75 -41 16 9.75 -39 16 9.75 -39 16 7.75
2 24 -39 4 4 -39 4 7.75
2 24 -41 4 4 -41 4 7.75
4 16 -41 4 7.75 -41 16 7.75 -41 12 4 -41 4 4
4 16 -41 12 -9 -41 12 4 -41 16 7.75 -41 16 -9
4 16 -39 12 4 -39 12 -9 -39 16 -9 -39 16 7.75
4 16 -39 12 4 -39 16 7.75 -39 4 7.75 -39 4 4
1 16 -40 16 -.625 0 0 -1 0 -1 0 8.375 0 0 rect2p.dat
4 16 -39 16 -9 -39 16 -11 -41 16 -11 -41 16 -9
1 16 -39 14 -10 0 3 0 0 0 2 1 0 0 box4-2p.dat
1 16 -41 14 -10 0 -3 0 0 0 2 -1 0 0 box4-3p.dat
1 16 -40 12 -13.5 0 0 -1 0 4 0 -2.5 0 0 box3u6.dat

1 16 -42.5 8 -2.5 -1.5 0 0 0 4 0 0 0 6.5 box2-7.dat
1 16 -42.5 12 -13.5 -1.5 0 0 0 -1 0 0 0 -2.5 rect2a.dat
4 16 -44 12 -9 -44 12 -11 -44 4 -16 -44 4 4
3 16 -44 12 -11 -44 12 -16 -44 4 -16
3 16 -44 12 4 -44 12 -9 -44 4 4
2 24 -44 12 -16 -44 4 -16

0 // Centre Studs
1 16 20 12 0 -7.391 0 3.062 0 -8 0 3.062 0 7.391 3-8cyli.dat
1 16 20 4 0 -7.391 0 3.062 0 -1 0 3.062 0 7.391 3-8edge.dat
1 16 20 12 0 7.391 0 3.062 0 -1 0 3.062 0 -7.391 5-8edge.dat
0 BFC INVERTNEXT
1 16 20 12 0 -5.543 0 2.296 0 -8 0 2.296 0 5.543 3-8cyli.dat
1 16 20 4 0 -5.543 0 2.296 0 -1 0 2.296 0 5.543 3-8edge.dat
1 16 20 12 0 5.543 0 2.296 0 -1 0 2.296 0 -5.543 5-8edge.dat
1 16 20 12 0 1 0 0 0 -1 0 0 0 1 stud4a.dat

2 24 13.24 12 4 12.61 12 3.06
2 24 26.76 12 4 27.39 12 3.06
2 24 15.6 12 4 14.46 12 2.3
2 24 24.4 12 4 25.54 12 2.3
2 24 24.4 12 4 24.4 4 4
2 24 15.6 4 4 15.6 12 4
2 24 26.76 4 4 26.76 12 4
2 24 13.24 12 4 13.24 4 4

1 16 -20 12 0 -7.391 0 3.062 0 -8 0 3.062 0 7.391 3-8cyli.dat
1 16 -20 4 0 -7.391 0 3.062 0 -1 0 3.062 0 7.391 3-8edge.dat
1 16 -20 12 0 7.391 0 3.062 0 -1 0 3.062 0 -7.391 5-8edge.dat
0 BFC INVERTNEXT
1 16 -20 12 0 -5.543 0 2.296 0 -8 0 2.296 0 5.543 3-8cyli.dat
1 16 -20 4 0 -5.543 0 2.296 0 -1 0 2.296 0 5.543 3-8edge.dat
1 16 -20 12 0 5.543 0 2.296 0 -1 0 2.296 0 -5.543 5-8edge.dat
1 16 -20 12 0 1 0 0 0 -1 0 0 0 1 stud4a.dat

2 24 -26.76 12 4 -27.39 12 3.06
2 24 -13.24 12 4 -12.61 12 3.06
2 24 -24.4 12 4 -25.54 12 2.3
2 24 -15.6 12 4 -14.46 12 2.3
2 24 -15.6 12 4 -15.6 4 4
2 24 -24.4 4 4 -24.4 12 4
2 24 -26.76 12 4 -26.76 4 4
2 24 -13.24 4 4 -13.24 12 4

0 BFC INVERTNEXT
1 16 0 0 -10 -40 0 0 0 8 0 0 0 10 box4-1.dat

Status:

Official
