Official File parts/s/74169s01.dat
File Header:

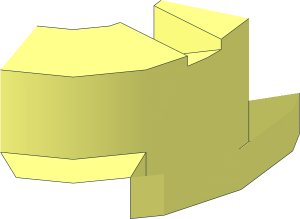

0 ~Tile 2 x 2 x 0.667 with Two Offset Round Extensions, Bottom - Quarter
0 Name: s\74169s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 16 0 18.4776 0 7.65367 0 1 0 -7.65367 0 18.4776 1-8edge.dat
1 16 0 12 0 18.4776 0 7.65367 0 4 0 -7.65367 0 18.4776 1-8cyli.dat
2 24 16.87 16 -10.07 18.4778 16 -7.6539
2 24 16.87 12 -10.07 14.142 12 -14.142
2 24 14.142 12 -14.142 10.07 12 -16.87
2 24 18.477 16 7.654 16.87 16 10.07
2 24 6.123 12 -14.782 10.07 12 -16.87
1 16 0 16 0 14.7821 0 6.12293 0 1 0 -6.12293 0 14.7821 1-8edge.dat
1 16 0 16 0 3.69552 0 1.53073 0 -1 0 -1.53073 0 3.69552 1-8ring4.dat
4 16 16.87 16 10.07 16.87 12 10.07 18.4777 12 7.6538 18.477 16 7.654
3 16 14.7819 16 6.1229 16.87 16 10.07 18.477 16 7.654
1 16 15.826 14 8.096475 1.04395 1 -.0001 0 0 2 1.9735 0 -.00005 rect3.dat
4 16 18.4778 16 -7.6539 18.4778 12 -7.6539 16.87 12 -10.07 16.87 16 -10.07
3 16 18.4778 16 -7.6539 16.87 16 -10.07 14.7821 16 -6.1229
1 16 15.82607 14 -8.096475 0 1 -1.04395 -2 0 0 0 0 1.97355 rect.dat
4 16 10.07 12 -16.87 6.123 12 -14.782 11.3139 12 -11.3139 14.142 12 -14.142
4 16 14.142 12 -14.142 11.3139 12 -11.3139 14.7822 12 -6.123 16.87 12 -10.07
4 16 8 8.8011 0 8 10 0 7.3912 10 3.0616 7.6023 9 2
4 16 7.3912 10 3.0616 7.3912 4 3.0616 7.6023 4 2 7.6023 9 2
4 16 7.6023 4 -2 7.3912 4 -3.0615 7.3913 10 -3.0616 7.6023 9 -2
4 16 8 8.8011 0 7.6023 9 -2 7.3913 10 -3.0616 8 10 0
4 16 7.3912 4 -3.0615 7.6023 4 -2 15.6023 4 -2 14.7823 4 -6.123
4 16 14.7824 4 6.1232 15.6023 4 2 7.6023 4 2 7.3912 4 3.0616
3 16 16 4.8 0 15.6023 5 2 14.7821 12 6.123
4 16 15.6023 4 2 14.7824 4 6.1232 14.7821 12 6.123 15.6023 5 2
4 16 14.7822 12 -6.123 14.7823 4 -6.123 15.6023 4 -2 15.6023 5 -2
4 16 14.7821 16 -6.1229 14.7822 12 -6.123 16 4.8 0 16 16 0
3 16 14.7822 12 -6.123 15.6023 5 -2 16 4.8 0
4 16 16 4.8 0 14.7821 12 6.123 14.7819 16 6.1229 16 16 0
1 16 0 4 0 3.06147 0 7.39104 0 1 0 -7.39104 0 3.06147 1-8edge.dat
1 16 0 4 0 3.06147 0 7.39104 0 6 0 -7.39104 0 3.06147 1-8cyli.dat
1 16 0 4 0 3.06147 0 7.39104 0 -1 0 -7.39104 0 3.06147 1-8ring1.dat
0 BFC INVERTNEXT
1 16 0 4 0 6.12293 0 14.78207 0 8 0 -14.78207 0 6.12293 1-8cylo.dat
2 24 7.6023 4 -2 15.6023 4 -2
2 24 15.6023 4 2 7.6023 4 2
2 24 7.6023 4 2 7.6023 9 2
2 24 7.6023 4 -2 7.6023 9 -2
2 24 15.6023 4 2 15.6023 5 2
2 24 15.6023 4 -2 15.6023 5 -2
1 16 11.80115 6.90028 1 -4 0 -.19885 2.00055 -1 .1 0 0 1 rect3.dat
1 16 11.80115 6.90028 -1 4 0 -.19885 -2.00055 -1 .09945 0 0 -1 rect3.dat
4 16 15.6023 5 -2 15.6023 4 -2 7.6023 4 -2 7.6023 9 -2
4 16 7.6023 9 2 7.6023 4 2 15.6023 4 2 15.6023 5 2
2 24 14.7824 4 6.1232 15.6023 4 2
2 24 15.6023 4 -2 14.7823 4 -6.123
2 24 7.3912 4 -3.0615 7.6023 4 -2
2 24 7.3912 4 3.0616 7.6023 4 2
5 24 16 4.8 0 16 16 0 14.7822 12 -6.123 14.7821 12 6.123
5 24 8 8.8011 0 8 10 0 7.6023 9 -2 7.6023 9 2
5 24 14.7821 12 6.123 14.7824 4 6.1232 16 16 0 11.3136 12 11.3136
5 24 14.7822 12 -6.123 14.7823 4 -6.123 11.3139 12 -11.3139 16 16 0
5 24 7.3913 10 -3.0616 7.3912 4 -3.0615 5.6569 10 -5.6569 8 10 0
5 24 7.3912 10 3.0616 7.3912 4 3.0616 8 10 0 5.6568 10 5.6568
5 24 18.4778 12 -7.6539 18.4778 16 -7.6539 16.87 16 -10.07 20.0005 16 .0002
5 24 18.4777 12 7.6538 18.477 16 7.654 16.87 16 10.07 20.0005 16 .0002
Status:
Official
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine text: 1 16 15.826 14 8.096475 1.04395 1 -.0001 0 0 2 1.9735 0 -.00005 rect3.dat
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 16 0 18.4776 0 7.65367 0 1 0 -7.65367 0 18.4776 1-8edge.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 12 0 18.4776 0 7.65367 0 4 0 -7.65367 0 18.4776 1-8cyli.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 16 0 14.7821 0 6.12293 0 1 0 -6.12293 0 14.7821 1-8edge.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 16 0 3.69552 0 1.53073 0 -1 0 -1.53073 0 3.69552 1-8ring4.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 15.82607 14 -8.096475 0 1 -1.04395 -2 0 0 0 0 1.97355 rect.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 4 0 3.06147 0 7.39104 0 1 0 -7.39104 0 3.06147 1-8edge.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 4 0 3.06147 0 7.39104 0 6 0 -7.39104 0 3.06147 1-8cyli.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 4 0 3.06147 0 7.39104 0 -1 0 -7.39104 0 3.06147 1-8ring1.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 4 0 6.12293 0 14.78207 0 8 0 -14.78207 0 6.12293 1-8cylo.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 11.80115 6.90028 1 -4 0 -.19885 2.00055 -1 .1 0 0 1 rect3.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 11.80115 6.90028 -1 4 0 -.19885 -2.00055 -1 .09945 0 0 -1 rect3.dat
