File Detail parts/s/77598s01.dat

Official File parts/s/77598s01.dat

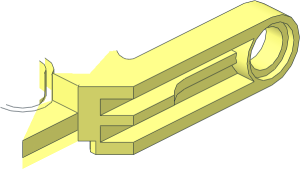

~Plate 2 x 2 x 0.667 with Wheel Fork Half

File Header:

0 ~Plate  2 x  2 x  0.667 with Wheel Fork Half
0 Name: s\77598s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 30 10 60 0 -1 0 1 0 0 0 0 1 peghole.dat
1 16 30 10 60 0 -1 0 10 0 0 0 0 10 2-4edge.dat
1 16 20 10 60 0 -1 0 -10 0 0 0 0 10 5-16edge.dat
1 16 20 10 60 0 1 0 0 0 10 10 0 0 1-16chrd.dat
1 16 22 10 60 0 -1 0 10 0 0 0 0 10 3-16edge.dat
1 16 30 10 60 0 -8 0 10 0 0 0 0 10 2-4cyli.dat
1 16 20 10 60 0 2 0 -10 0 0 0 0 10 5-16cyli.dat
1 16 30 10 60 0 -1 0 2 0 0 0 0 2 2-4ring4.dat
0 BFC INVERTNEXT
1 16 28 10 60 0 -6 0 6 0 0 0 0 6 4-4cyli.dat
1 16 22 10 60 0 -1 0 6 0 0 0 0 6 4-4edge.dat
0 BFC INVERTNEXT
1 16 20 10 60 0 2 0 0 0 -8 -8 0 0 2-4cylo.dat
1 16 20 10 60 0 1 0 -2 0 0 0 0 2 1-4ring4.dat
2 24 20 13.8 68 22 13.8 68
2 24 20 13.8 68 20 10 68
2 24 22 13.8 68 22 10 68
4 16 22 13.8 68 22 10 68 20 10 68 20 13.8 68
1 16 22 10 60 0 1 0 0 0 6 -6 0 0 2-4ndis.dat
1 16 22 10 60 0 1 0 0 0 -2 -2 0 0 2-4ring3.dat
1 16 22 10 60 0 1 0 10 0 0 0 0 10 3-16ering.dat
4 16 22 16 66 22 10 66 22 10 68 22 13.8 68
4 16 22 16 66 22 13.8 68 22 13.827 69.239 22 17.071 67.071
4 16 22 16 66 22 17.071 67.071 22 19.239 63.827 22 16 60
3 16 22 19.239 63.827 22 20 60 22 16 60
1 16 30 10 60 0 -6 0 0 0 -9 -9 0 0 1-8cylo.dat
2 24 30 0 60 30 0 10
2 24 30 3.6361 10 30 3.6361 53.6361
1 16 30 10 60 0 -1 0 -8 0 0 0 0 -8 1-8tndis.dat
1 16 30 10 60 0 -1 0 0 0 -1 -1 0 0 1-8ring8.dat
3 16 30 2 54.3432 30 3.6361 53.6361 30 4.3432 54.3432
4 16 30 2 54.3432 30 0 10 30 3.6361 10 30 3.6361 53.6361
4 16 30 2 54.3432 30 2 60 30 0 60 30 0 10
2 24 24 3.6361 4 30 3.6361 10
2 24 24 3.6361 53.6361 30 3.6361 53.6361
4 16 24 3.6361 53.6361 30 3.6361 53.6361 30 3.6361 10 24 3.6361 4
2 24 24 3.6361 4 24 3.6361 53.6361
1 16 30 10 60 0 -6 0 0 0 9 -9 0 0 1-8cylo.dat
2 24 30 20 60 30 20 10
2 24 30 16.3639 10 30 16.3639 53.6361
1 16 30 10 60 0 -1 0 8 0 0 0 0 -8 1-8tndis.dat
1 16 30 10 60 0 -1 0 0 0 1 -1 0 0 1-8ring8.dat
3 16 30 16.3639 53.6361 30 18 54.3432 30 15.6568 54.3432
4 16 30 16.3639 10 30 20 10 30 18 54.3432 30 16.3639 53.6361
4 16 30 20 60 30 18 60 30 18 54.3432 30 20 10
2 24 24 16.3639 4 30 16.3639 10
2 24 24 16.3639 53.6361 30 16.3639 53.6361
4 16 30 16.3639 10 30 16.3639 53.6361 24 16.3639 53.6361 24 16.3639 4
2 24 24 16.3639 4 24 16.3639 53.6361
0 BFC INVERTNEXT
1 16 35 8.5 32.5 -9 0 0 0 3 0 0 0 -9 1-8cylo.dat
1 16 29.31805 10 25.44305 0 -1 .68195 -1.5 0 0 0 0 -.69305 rect3.dat
1 16 30 10 17.375 0 -1 0 -1.5 0 0 0 0 -7.375 rect3.dat
1 16 26 10 41.89915 0 -1 0 0 0 1.5 -9.39915 0 0 rect2p.dat
2 24 26 8.5 51.2983 26 10 51
2 24 26 11.5 51.2983 26 10 51
2 24 24 8.5 51.2983 24 8.5 4
2 24 24 11.5 4 24 11.5 51.2983
2 24 24 8.5 51.2983 26 8.5 51.2983
2 24 24 11.5 51.2983 26 11.5 51.2983
1 16 35 8.5 32.5 -9 0 0 0 1 0 0 0 -9 1-8ndis.dat
1 16 35 11.5 32.5 -9 0 0 0 -1 0 0 0 -9 1-8ndis.dat
4 16 30 8.5 24.75 28.6361 8.5 26.1361 26 8.5 23.5 30 8.5 10
4 16 26 8.5 23.5 26 8.5 51.2983 24 8.5 51.2983 24 8.5 4
3 16 26 8.5 23.5 24 8.5 4 30 8.5 10
4 16 26 11.5 23.5 28.6361 11.5 26.1361 30 11.5 24.75 30 11.5 10
4 16 24 11.5 51.2983 26 11.5 51.2983 26 11.5 23.5 24 11.5 4
3 16 24 11.5 4 26 11.5 23.5 30 11.5 10
4 16 24 11.5 51.2983 24 11.5 4 24 16.3639 4 24 16.3639 53.6361
4 16 24 8.5 51.2983 24 3.6361 53.6361 24 3.6361 4 24 8.5 4
2 24 20 16 0 20 0 0
2 24 20 0 0 30 0 10
4 16 30 0 10 20 0 0 24 3.6361 4 30 3.6361 10
4 16 24 11.5 4 24 8.5 4 20 0 0 20 16 0
1 16 27 10 7 3 -1 0 0 0 -1.5 3 0 0 rect2p.dat
3 16 30 20 10 30 16.3639 10 24 16.3639 4
2 24 30 0 10 30 3.6361 10
2 24 30 16.3639 10 30 20 10
2 24 24 11.5 4 24 16.3639 4
2 24 24 3.6361 4 24 8.5 4
3 16 24 3.6361 4 20 0 0 24 8.5 4
0 BFC INVERTNEXT
1 16 18 16 20.5 2 0 0 0 -16 0 0 0 -2 1-4cylo.dat
0 BFC INVERTNEXT
1 16 18 16 22.5 0 0 -5 0 -16 0 -4 0 0 1-8cylo.dat
1 16 14.23225 8 19.8358 0 0 -0.23225 8 0 0 0 -1 0.1642 rect3.dat
2 24 20 0 60 20 0 20.5
3 16 22 0 60 20 0 60 20 0 20.5
4 16 30 0 60 22 0 60 20 0 20.5 30 0 10
1 16 20 10 60 0 1 0 0 0 -8 -8 0 0 1-4ndis.dat
1 16 22.2345 18 3.219 0 0 -0.9845 -2 0 0 0 1 0 rect.dat
4 16 30 20 10 24 16.3639 4 23.219 16 3.219 23.219 20 3.219
2 24 30 20 10 23.219 20 3.219
2 24 23.219 16 3.219 20 16 0
3 16 23.219 16 3.219 24 16.3639 4 24 11.5 4
3 16 24 11.5 4 20 16 0 23.219 16 3.219
1 16 20.625 18 3.7615 0 0 -0.625 -2 0 0 0 1 0.5425 rect3.dat
0 BFC INVERTNEXT
1 16 26 20 47 1.2 0 0 0 -1 0 0 0 5.5 box5.dat
4 16 23.219 20 3.219 21.25 20 3.219 20 20 4.304 30 20 10
4 16 27.2 20 41.5 30 20 10 20 20 4.304 24.8 20 41.5
2 24 22 20 52 20 20 52
2 24 22 20 52 22 10 52
2 24 20 20 52 20 10 52
4 16 20 20 52 20 10 52 22 10 52 22 20 52
4 16 22 10 52 22 10 54 22 16 54 22 20 52
4 16 22 20 52 22 16 54 22 16 60 22 20 60
2 24 22 20 60 22 20 52
4 16 30 20 60 27.2 20 52.5 24.8 20 52.5 22 20 60
4 16 22 20 52 22 20 60 24.8 20 52.5 24.8 20 41.5
4 16 22 20 52 24.8 20 41.5 20 20 4.304 20 20 52
2 24 20 20 52 20 20 4.304
4 16 30 20 10 27.2 20 41.5 27.2 20 52.5 30 20 60
4 16 20 20 52 20 16 20.5 20 0 20.5 20 2 52
4 16 20 0 60 20 2 60 20 2 52 20 0 20.5
1 16 18 16 20.5 2 0 0 0 -1 0 0 0 -2 1-4ndis.dat
1 16 18 16 22.5 0 0 -5 0 -1 0 -4 0 0 1-8ndis.dat
1 16 18 0 20.5 2 0 0 0 1 0 0 0 -2 1-4ndis.dat
1 16 18 0 22.5 0 0 -5 0 1 0 -4 0 0 1-8ndis.dat
3 16 14 0 20 13 0 18.5 14.4645 0 19.6716
3 16 13 16 18.5 14 16 20 14.4645 16 19.6716
4 16 20 0 0 30 0 10 20 0 18.5 13 0 18.5
3 16 20 0 18.5 30 0 10 20 0 20.5
2 24 20 16 20.5 20 16 16
4 16 20 20 4.304 20 16 4.304 20 16 16 20 20 52
3 16 20 16 16 20 16 20.5 20 20 52
3 16 13 16 18.5 20 16 18.5 20 16 16
1 16 20 9.5 10 0 -4 0 0 0 6.5 1.2 0 0 box4-1.dat
1 16 20 9.5 13.6 0 1 0 -6.5 0 0 0 0 2.4 rect2a.dat
1 16 17.5 16 4.5 -1.5 0 0 0 -13 0 0 0 1.5 8\1-4cylo.dat
2 24 16 16 -16 16 16 4.5
2 24 16 11 -16 16 11 3.937
1 16 18.75 9.5 6 0 0 1.25 -6.5 0 0 0 -1 0 rect3.dat
1 16 20 9.5 7.4 0 1 0 -6.5 0 0 0 0 1.4 rect1.dat
2 24 16 3 3.937 16 3 4.5
2 24 16 11 -16 16 16 -16
4 16 16 11 3.937 16 3 3.937 16 3 4.5 16 16 4.5
4 16 16 11 -16 16 11 3.937 16 16 4.5 16 16 -16
1 16 17.5 16 4.5 -1.5 0 0 0 -1 0 0 0 1.5 8\1-4chrd.dat
2 24 20 16 4.304 20 16 6
4 16 20 16 4.304 16 16 4.5 17.5 16 6 20 16 6
4 16 20 16 4.304 23.219 16 3.219 20 16 0 16 16 4.5
4 16 16 16 -16 16 16 4.5 20 16 0 20 16 -20
1 16 0 11 0 0 0 8 0 -8 0 8 0 0 3-16cyli.dat
1 16 0 3 0 0 0 8 0 -1 0 8 0 0 3-16edge.dat
1 16 11.4031 7 3.937 0 0 4.5969 -4 0 0 0 -1 0 rect.dat
4 16 20 3 16 20 3 6 16 3 3.937 6.8062 3 3.937
1 16 0 11 0 0 0 8 0 -1 0 -8 0 0 5-16edge.dat
2 24 6.8062 11 3.937 7.3912 11 3.0616
4 16 6 11 0 6.8062 11 3.937 16 11 3.937 16 11 -16
0 BFC INVERTNEXT
1 16 0 11 0 0 0 6 0 -8 0 6 0 0 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 11 0 6 0 0 0 -1.3 0 0 0 6 1-16cyli.dat
1 16 0 3 0 0 0 6 0 -1 0 6 0 0 3-16edge.dat
2 24 5.073 8 3 5.2256 9.1481 2.7717
2 24 5.2256 9.1481 2.7717 5.5434 9.8596 2.2962
2 24 5.5782 10.1213 2.1213 5.5434 9.8596 2.2962
2 24 5.7717 10.7717 1.1481 5.5782 10.1213 2.1213
2 24 5.7717 10.7717 1.1481 6 11 0
2 24 5.073 3 3 5.073 8 3
1 16 0 11 0 0 0 6 0 -1 0 -6 0 0 1-4edge.dat
2 24 20 13.8 68 20 13.827 69.239
2 24 22 13.8 68 22 13.827 69.239
2 24 22 13.827 69.239 20 13.827 69.239
4 16 22 13.8 68 20 13.8 68 20 13.827 69.239 22 13.827 69.239
4 16 20 13.827 69.239 20 13.8 68 20 10 68 20 10 70

Status:

Official
