Official File parts/s/80324s01.dat
File Header:

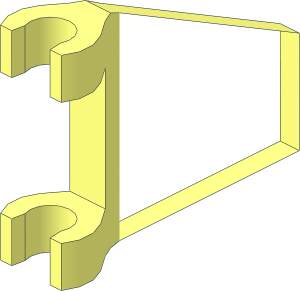

0 ~Flag 2 x 2 Trapezoid with Flared Edge without Faces
0 Name: s\80324s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-07-22 [Cheenzo] Subfiled common part with 80326
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\80324s02.dat
4 16 2 40 12.5 2 1.25 12.5 2.6 0 10 2.6 40 10
4 16 2.6 0 10 2 1.25 12.5 -2 1.25 12.5 -2.6 0 10
4 16 -2.6 0 10 -2 1.25 12.5 -2 40 12.5 -2.6 40 10
1 16 0 10.625 31.25 2 0 0 0 1 9.375 0 0 18.75 rect3.dat
1 16 0 30 50 2 0 0 0 0 10 0 -1 0 rect3.dat
2 24 2.6 0 10 -2.6 0 10
2 24 2.6 0 10 2 1.25 12.5
2 24 -2.6 0 10 -2 1.25 12.5
5 24 -2 40 12.5 -2 1.25 12.5 -2.6 40 10 -2 20 50
5 24 2 1.25 12.5 2 40 12.5 2.6 0 10 2 40 50
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
