File Detail parts/s/80336s01.dat

Official File parts/s/80336s01.dat

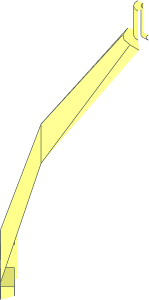

~Figure Friends Skirt Long Full Octagonal Corner

File Header:

0 ~Figure Friends Skirt Long Full Octagonal Corner
0 Name: s\80336s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 -4 -81 0 0 0 -2 0 1 0 -2 0 0 1-4ring1.dat
0 BFC INVERTNEXT
1 16 -4 -72 0 0 0 -2 0 -9 0 -2 0 0 1-4cylc.dat
1 16 -4 -72 0 0 0 -4 0 -9 0 -4 0 0 1-4cylo.dat
2 24 0 -72 -7.57 -3.749 -72 -7.255
3 16 0 -72 -7.57 -3.749 -72 -7.255 -14.887 -40 -29.775
2 24 -14.887 -40 -29.775 -29.775 -40 -14.888
2 24 -32.3755 0 -22.3915 -36 0 -18.767
2 24 -18.767 0 -36 -22.398 0 -32.369
2 24 -34.992 0 -25.008 -40 0 -20
2 24 -20 0 -40 -25.0145 0 -34.9855
2 24 -34.3085 -5.25 -25.6915 -40 -5.25 -20
2 24 -20 -5.25 -40 -25.69 -5.25 -34.31
2 24 -23.0735 -5.25 -31.6935 -18.767 -5.25 -36
2 24 -36 -5.25 -18.767 -31.692 -5.25 -23.075
3 16 -31.692 -5.25 -23.075 -36 -5.25 -18.767 -35.562 -5.25 -18.048
4 16 -23.0735 -5.25 -31.6935 -31.692 -5.25 -23.075 -35.562 -5.25 -18.048 -18.048 -5.25 -35.553
3 16 -18.048 -5.25 -35.553 -18.767 -5.25 -36 -23.0735 -5.25 -31.6935
2 24 -36 -5.25 -18.767 -36 0 -18.767
2 24 -18.767 -5.25 -36 -18.767 0 -36
4 16 -25.69 -5.25 -34.31 -20 -5.25 -40 -14.887 -40 -29.775 -29.775 -40 -14.888
3 16 -29.775 -40 -14.888 -34.3085 -5.25 -25.6915 -25.69 -5.25 -34.31
3 16 -29.775 -40 -14.888 -40 -5.25 -20 -34.3085 -5.25 -25.6915
2 24 -3.749 -72 -7.255 -6.862 -72 -6.4
2 24 -6.862 -72 -6.4 -8.973 -72 -4.594
2 24 -10.522 -72 -1.3 -8.973 -72 -4.594
2 24 -40 -5.25 -20 -29.775 -40 -14.888
2 24 -20 -5.25 -40 -14.887 -40 -29.775
2 24 -3.749 -72 -7.255 -14.887 -40 -29.775
2 24 -29.775 -40 -14.888 -8.973 -72 -4.594
3 16 -8.973 -72 -4.594 -10.522 -72 -1.3 -29.775 -40 -14.888
3 16 -8.973 -72 -4.594 -29.775 -40 -14.888 -14.887 -40 -29.775
3 16 -14.887 -40 -29.775 -6.862 -72 -6.4 -8.973 -72 -4.594
3 16 -6.862 -72 -6.4 -14.887 -40 -29.775 -3.749 -72 -7.255
2 24 -20 -5.25 -40 -20 0 -40
2 24 -40 -5.25 -20 -40 0 -20
1 16 -2 -72 0 0 0 -2 0 1 0 -2 0 0 1-4ndis.dat
1 16 -2 -72 0 0 0 -2 0 1 0 -2 0 0 1-4edge.dat
2 24 -4 -72 -2 -2 -72 -2
1 16 -4 -72 0 0 0 -4 0 1 0 -4 0 0 1-4ndis.dat
4 16 -4 -72 -4 -6.862 -72 -6.4 -3.749 -72 -7.255 0 -72 -7.57
4 16 -4 -72 -4 -8 -72 -4 -8.973 -72 -4.594 -6.862 -72 -6.4
4 16 -8 -72 -4 -8 -72 0 -10.522 -72 -1.3 -8.973 -72 -4.594
1 16 -28.691 -5.25 -28.6925 4.30925 0 -1.30825 0 -1 0 -4.30925 0 -1.30825 rect3.dat
4 16 -36 0 -18.767 -36 -5.25 -18.767 -31.692 -5.25 -23.075 -32.3755 0 -22.3915
4 16 -18.767 0 -36 -22.398 0 -32.369 -23.0735 -5.25 -31.6935 -18.767 -5.25 -36
4 16 -20 0 -40 -25.0145 0 -34.9855 -22.398 0 -32.369 -18.767 0 -36
4 16 -34.992 0 -25.008 -40 0 -20 -36 0 -18.767 -32.3755 0 -22.3915
1 16 -24.044 -2.625 -33.3395 1.30825 1 0.33775 0 0 2.625 1.30825 0 -0.33775 rect3.dat
1 16 -33.342 -2.625 -24.0415 -1.30825 -1 -0.34175 0 0 2.625 -1.30825 0 0.34175 rect3.dat
4 16 -20 0 -40 -20 -5.25 -40 -25.69 -5.25 -34.31 -25.0145 0 -34.9855
4 16 -34.992 0 -25.008 -34.3085 -5.25 -25.6915 -40 -5.25 -20 -40 0 -20
5 24 -14.887 -40 -29.775 -6.862 -72 -6.4 -8.973 -72 -4.594 -3.749 -72 -7.255
5 24 -8.973 -72 -4.594 -14.887 -40 -29.775 -29.775 -40 -14.888 -6.862 -72 -6.4
5 24 0 -72 -7.57 -14.887 -40 -29.775 14.888 -40 -29.775 -3.749 -72 -7.255
5 24 -10.522 -72 -1.3 -29.775 -40 -14.888 -8.973 -72 -4.594 -10.522 -72 1.3

Status:

Official
