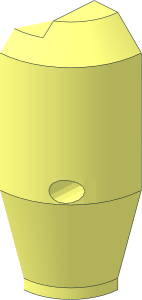

~Cylinder 6 x 3 x 8 Half with Taper, 2 Pin Holes and 4 Studs Half

File Header:

0 ~Cylinder  6 x  3 x  8 Half with Taper,  2 Pin Holes and  4 Studs Half
0 Name: s\80514s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
