File Detail parts/s/81346s01.dat

Official File parts/s/81346s01.dat

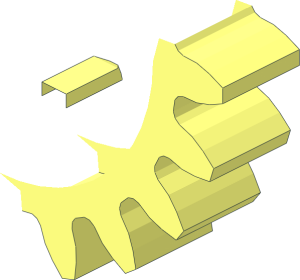

~Technic Gear 20 Tooth with Clutch on Both Sides, 5 Teeth

File Header:

0 ~Technic Gear 20 Tooth with Clutch on Both Sides,  5 Teeth
0 Name: s\81346s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05

Show contents

1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\69779s01.dat
1 16 0 0 0 -0.30902 -0.95106 0 0.95106 -0.30902 0 0 0 1 s\69779s01.dat
1 16 0 0 0 -0.58779 -0.80902 0 0.80902 -0.58779 0 0 0 1 s\69779s01.dat
1 16 0 0 0 -0.80902 -0.58779 0 0.58779 -0.80902 0 0 0 1 s\69779s01.dat
1 16 0 0 0 -0.95106 -0.30902 0 0.30902 -0.95106 0 0 0 1 s\69779s01.dat
1 16 0 0 -4.75 0 0 19 19 0 0 0 1 0 48\1-4tang.dat
4 16 19 0 -4.75 19 3.7791 -4.75 19.5882 3.6261 -4.75 19.75 -2.6045 -4.75
4 16 19.5882 3.6261 -4.75 19 3.7791 -4.75 17.5541 7.2713 -4.75 17.509 9.5018 -4.75
4 16 17.509 9.5018 -4.75 16.1082 10.7635 -4.75 13.4349 13.4349 -4.75 13.7159 14.4473 -4.75
3 16 2.6045 19.7501 -4.75 3.7791 19 -4.75 0 19 -4.75
4 16 3.7791 19 -4.75 2.6045 19.7501 -4.75 8.5802 17.9786 -4.75 10.7635 16.1082 -4.75
3 16 13.7159 14.4473 -4.75 13.4349 13.4349 -4.75 10.7635 16.1082 -4.75
3 16 13.7159 14.4473 -4.75 10.7635 16.1082 -4.75 8.5802 17.9786 -4.75
3 16 16.1082 10.7635 -4.75 17.509 9.5018 -4.75 17.5541 7.2713 -4.75
1 16 0 0 4.75 0 0 19 19 0 0 0 -1 0 48\1-4tang.dat
4 16 19.5882 3.6261 4.75 19 3.7791 4.75 19 0 4.75 19.75 -2.6045 4.75
4 16 17.5541 7.2713 4.75 19 3.7791 4.75 19.5882 3.6261 4.75 17.509 9.5018 4.75
4 16 13.4349 13.4349 4.75 16.1082 10.7635 4.75 17.509 9.5018 4.75 13.7159 14.4473 4.75
3 16 3.7791 19 4.75 2.6045 19.7501 4.75 0 19 4.75
4 16 8.5802 17.9786 4.75 2.6045 19.7501 4.75 3.7791 19 4.75 10.7635 16.1082 4.75
3 16 13.4349 13.4349 4.75 13.7159 14.4473 4.75 10.7635 16.1082 4.75
3 16 10.7635 16.1082 4.75 13.7159 14.4473 4.75 8.5802 17.9786 4.75
3 16 17.509 9.5018 4.75 16.1082 10.7635 4.75 17.5541 7.2713 4.75
4 16 1.5 14.6183 8.9601 1.5 13.218 8.4 1.5 13.218 2 1.5 14.6183 2
4 16 0.5 14.6842 9.7865 0.5 13.718 9.4 1.5 13.218 8.4 1.5 14.6183 8.9601
4 16 -0.5 14.6842 9.7865 -0.5 13.718 9.4 0.5 13.718 9.4 0.5 14.6842 9.7865
4 16 -1.5 13.218 8.4 -0.5 13.718 9.4 -0.5 14.6842 9.7865 -1.5 14.6183 8.9601
4 16 -1.5 13.218 2 -1.5 13.218 8.4 -1.5 14.6183 8.9601 -1.5 14.6183 2
5 24 1.5 13.218 8.4 1.5 14.6183 8.9601 1.5 14.6183 2 0.5 13.718 9.4
5 24 0.5 13.718 9.4 0.5 14.6842 9.7865 1.5 14.6183 8.9601 -0.5 13.718 9.4
5 24 -0.5 13.718 9.4 -0.5 14.6842 9.7865 0.5 14.6842 9.7865 -1.5 14.6183 8.9601
5 24 -1.5 14.6183 8.9601 -1.5 13.218 8.4 -0.5 13.718 9.4 -1.5 14.6183 2
4 16 1.5 13.218 2 1.5 13.218 8.4 -1.5 13.218 8.4 -1.5 13.218 2
4 16 1.5 13.218 8.4 0.5 13.718 9.4 -0.5 13.718 9.4 -1.5 13.218 8.4
5 24 -1.5 13.218 8.4 1.5 13.218 8.4 -0.5 13.718 9.4 -1.5 13.218 2
2 24 1.5 14.6183 2 1.5 13.218 2
2 24 -1.5 13.218 2 -1.5 14.6183 2
2 24 1.5 13.218 2 -1.5 13.218 2
2 24 1.5 13.218 2 1.5 13.218 8.4
2 24 1.5 13.218 8.4 0.5 13.718 9.4
2 24 -0.5 13.718 9.4 -1.5 13.218 8.4
2 24 -1.5 13.218 8.4 -1.5 13.218 2
2 24 0.5 13.718 9.4 -0.5 13.718 9.4

2 24 1.5 14.6183 8.9601 1.5 14.6183 2
2 24 1.5 14.6183 8.9601 0.5 14.6842 9.7865
2 24 0.5 14.6842 9.7865 0 14.7171 9.7996
2 24 0 14.7171 9.7996 -0.5 14.6842 9.7865
2 24 -0.5 14.6842 9.7865 -1.5 14.6183 8.9601
2 24 -1.5 14.6183 8.9601 -1.5 14.6183 2
3 16 0 14.7171 9.7996 -0.5 14.6842 9.7865 0.5 14.6842 9.7865
