Official File parts/s/84772s01.dat
File Header:

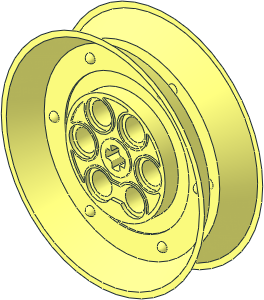

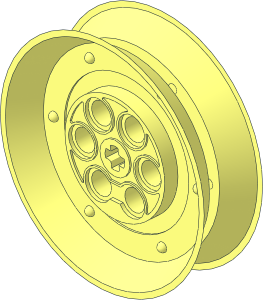

0 ~Wheel 20 x 62 Motorcycle Solid Centre
0 Name: s\84772s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\71711s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\71711s02.dat
1 16 0 0 -10 1 0 0 0 0 -1 0 20 0 axl3hole.dat
1 16 0 0 -10 3 0 0 0 0 3 0 1 0 4-4ring2.dat
1 16 0 0 10 -3 0 0 0 0 3 0 -1 0 4-4ring2.dat
1 16 -8.40555 -6.99135 1.75 0 1 -1.47515 0 0 -1.47515 -7.75 0 0 rect.dat
1 16 -6.4831 -7.8973 1.75 -0.9669 -1 0 -0.9669 0 0 0 0 -7.75 rect.dat
4 16 -9.8807 -8.4665 9.5 -7.45 -8.8642 9.5 -5.5162 -6.9304 9.5 -6.9304 -5.5162 9.5
2 24 -8.8253 -8.3973 9.5 -9.8807 -8.4665 9.5
2 24 -7.45 -8.8642 9.5 -8.8253 -8.3973 9.5
2 24 -6.3639 -6.3639 9.5 -5.5162 -6.9304 9.5
2 24 -6.3639 -6.3639 9.5 -6.9304 -5.5162 9.5
1 16 8.40555 6.99135 1.75 0 -1 1.47515 0 0 1.47515 -7.75 0 0 rect.dat
1 16 6.4831 7.8973 1.75 0.9669 1 0 0.9669 0 0 0 0 -7.75 rect.dat
4 16 9.8807 8.4665 9.5 7.45 8.8642 9.5 5.5162 6.9304 9.5 6.9304 5.5162 9.5
2 24 8.8253 8.3973 9.5 9.8807 8.4665 9.5
2 24 7.45 8.8642 9.5 8.8253 8.3973 9.5
2 24 6.3639 6.3639 9.5 5.5162 6.9304 9.5
2 24 6.3639 6.3639 9.5 6.9304 5.5162 9.5
3 16 2.2055 21.8206 -10 -2.2055 21.8206 -10 0 30 -10
4 16 2.2055 21.8206 -10 3.0716 21.3206 -10 -3.0716 21.3206 -10 -2.2055 21.8206 -10
1 16 0 21.3206 -9 0 0 3.0716 0 1 0 -1 0 0 rect.dat
4 16 3.0716 21.3206 -8 4.8037 20.3205 -8 -4.8037 20.3205 -8 -3.0716 21.3206 -8
4 16 -1.5873 18.4281 -8 -4.8037 20.3205 -8 4.8037 20.3205 -8 1.5873 18.4281 -8
1 16 0 11.8417 -9.5 0 0 -2.8598 0 1 0 0.5 0 0 rect.dat
3 16 -2.8598 11.8417 -9 2.8598 11.8417 -9 0 9 -9
1 16 0 12.8417 -9 -3.4 0 0 0 -1 0 0 0 1 rect2p.dat
4 16 3.4 12.8417 -10 3.6532 12.4504 -10 -3.6532 12.4504 -10 -3.4 12.8417 -10
4 16 3.6532 12.4504 -10 2.8598 11.8417 -10 -2.8598 11.8417 -10 -3.6532 12.4504 -10
4 16 -1.5873 18.4281 -8 1.5873 18.4281 -8 3.4 12.8417 -8 -3.4 12.8417 -8
1 16 0 0 -10 30 0 0 0 0 30 0 8 0 48\4-4cylo.dat
1 16 0 0 -2 7.5 0 0 0 0 7.5 0 1 0 48\4-4ring4.dat
0 BFC INVERTNEXT
1 16 0 0 -2 37.5 0 0 0 0 37.5 0 -1 0 48\4-4cylo.dat
1 16 0 0 -3 12.5 0 0 0 0 12.5 0 1 0 48\4-4ring3.dat
1 16 0 0 -3 50 0 0 0 0 50 0 -1 0 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 -17.5916 8.33333 0 0 0 0 8.33333 0 14.5916 0 48\4-4con6.dat
1 16 0 0 -17.5916 58.33333 0 0 0 0 58.33333 0 -1 0 48\4-4edge.dat
1 16 0 0 -17.5916 3.07018 0 0 0 0 3.07018 0 1 0 48\4-4ring19.dat
1 16 0 0 -17.5916 61.3704 0 0 0 0 61.3704 0 -1 0 48\4-4edge.dat
1 16 43.5 0 -3 2.5 0 0 0 0 2.5 0 -2.5 0 4-8sphe.dat
1 16 43.5 0 -3 2.5 0 0 0 0 2.5 0 -1 0 4-4edge.dat
1 16 21.75 37.6721 -3 1.25 0 -2.16506 2.16506 0 1.25 0 -2.5 0 4-8sphe.dat
1 16 21.75 37.6721 -3 1.25 0 -2.16506 2.16506 0 1.25 0 -1 0 4-4edge.dat
1 16 -21.75 37.6721 -3 -1.25 0 -2.16506 2.16506 0 -1.25 0 -2.5 0 4-8sphe.dat
1 16 -21.75 37.6721 -3 -1.25 0 -2.16506 2.16506 0 -1.25 0 -1 0 4-4edge.dat
1 16 -43.5 0 -3 -2.5 0 0 0 0 -2.5 0 -2.5 0 4-8sphe.dat
1 16 -43.5 0 -3 -2.5 0 0 0 0 -2.5 0 -1 0 4-4edge.dat
1 16 -21.75 -37.6721 -3 -1.25 0 2.16506 -2.16506 0 -1.25 0 -2.5 0 4-8sphe.dat
1 16 -21.75 -37.6721 -3 -1.25 0 2.16506 -2.16506 0 -1.25 0 -1 0 4-4edge.dat
1 16 21.75 -37.6721 -3 1.25 0 2.16506 -2.16506 0 1.25 0 -2.5 0 4-8sphe.dat
1 16 21.75 -37.6721 -3 1.25 0 2.16506 -2.16506 0 1.25 0 -1 0 4-4edge.dat
1 16 0 0 10 30 0 0 0 0 30 0 -8 0 48\4-4cylo.dat
1 16 0 0 2 7.5 0 0 0 0 7.5 0 -1 0 48\4-4ring4.dat
0 BFC INVERTNEXT
1 16 0 0 2 37.5 0 0 0 0 37.5 0 1 0 48\4-4cylo.dat
1 16 0 0 3 12.5 0 0 0 0 12.5 0 -1 0 48\4-4ring3.dat
1 16 0 0 3 50 0 0 0 0 50 0 1 0 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 17.5916 8.33333 0 0 0 0 8.33333 0 -14.5916 0 48\4-4con6.dat
1 16 0 0 17.5916 58.33333 0 0 0 0 58.33333 0 1 0 48\4-4edge.dat
1 16 0 0 17.5916 3.07018 0 0 0 0 3.07018 0 -1 0 48\4-4ring19.dat
1 16 0 0 17.5916 61.3704 0 0 0 0 61.3704 0 1 0 48\4-4edge.dat
1 16 43.5 0 3 2.5 0 0 0 0 2.5 0 2.5 0 4-8sphe.dat
1 16 43.5 0 3 2.5 0 0 0 0 2.5 0 1 0 4-4edge.dat
1 16 21.75 37.6721 3 1.25 0 -2.16506 2.16506 0 1.25 0 2.5 0 4-8sphe.dat
1 16 21.75 37.6721 3 1.25 0 -2.16506 2.16506 0 1.25 0 1 0 4-4edge.dat
1 16 -21.75 37.6721 3 -1.25 0 -2.16506 2.16506 0 -1.25 0 2.5 0 4-8sphe.dat
1 16 -21.75 37.6721 3 -1.25 0 -2.16506 2.16506 0 -1.25 0 1 0 4-4edge.dat
1 16 -43.5 0 3 -2.5 0 0 0 0 -2.5 0 2.5 0 4-8sphe.dat
1 16 -43.5 0 3 -2.5 0 0 0 0 -2.5 0 1 0 4-4edge.dat
1 16 -21.75 -37.6721 3 -1.25 0 2.16506 -2.16506 0 -1.25 0 2.5 0 4-8sphe.dat
1 16 -21.75 -37.6721 3 -1.25 0 2.16506 -2.16506 0 -1.25 0 1 0 4-4edge.dat
1 16 21.75 -37.6721 3 1.25 0 2.16506 -2.16506 0 1.25 0 2.5 0 4-8sphe.dat
1 16 21.75 -37.6721 3 1.25 0 2.16506 -2.16506 0 1.25 0 1 0 4-4edge.dat
