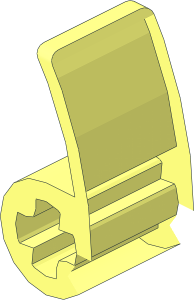

~Technic Panel Curved 1 x 2 x 1 without Side

File Header:

0 ~Technic Panel Curved  1 x  2 x  1 without Side
0 Name: s\89679s01.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-07-19 [jb70] Subparted from 89679
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
