Official File parts/s/98224s01.dat
File Header:

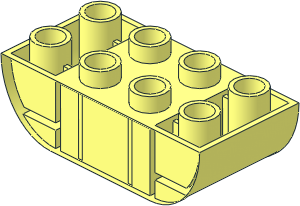

0 ~Duplo Brick 2 x 4 with Curved Bottom without Front Surface
0 Name: s\98224s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
