Unofficial File parts/s/u9006s01.dat
File Header:

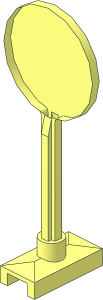

0 ~Roadsign Round Large without Front Face
0 Name: s\u9006s01.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2012-11-27 [tchang] Change type underside feet (3350as02 -> 3350bs02)
0 !HISTORY 2020-09-25 [UR] Geometry simplified with primitives
0 !HISTORY 2020-09-25 [UR] missing edge lines added, surface bleeding eliminated
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3350bs02.dat
1 16 0 -94 2 0 0 26 -26 0 0 0 -1 0 7-16disc.dat
1 16 0 -94 2 0 0 26 -26 0 0 0 -4 0 7-16cylo.dat
1 16 0 -94 2 0 0 -26 -26 0 0 0 -1 0 7-16disc.dat
1 16 0 -94 2 0 0 -26 -26 0 0 0 -4 0 7-16cylo.dat
3 16 0 -94 2 -5.235 -69.048 2 -9.9502 -69.9786 2
4 16 5.2346 -69.0478 2 0 -68 2 -5.235 -69.048 2 0 -94 2
3 16 5.2346 -69.0478 2 0 -94 2 9.9502 -69.9786 2
4 16 5.2346 -69.0478 2 9.9502 -69.9786 2 9.9502 -69.9786 -2 5.2346 -69.0478 -2
4 16 -9.9502 -69.9786 2 -5.235 -69.048 2 -5.235 -69.048 -2 -9.9502 -69.9786 -2
2 24 9.9502 -69.9786 2 5.235 -69.048 2
2 24 -9.9502 -69.9786 2 -5.235 -69.048 2
2 24 9.9502 -69.9786 -2 5.235 -69.048 -2
2 24 -9.9502 -69.9786 -2 -5.235 -69.048 -2
2 24 -5.235 -69.048 -2 0 -68 -2
2 24 0 -68 -2 5.2346 -69.0478 -2
5 24 5.2346 -69.0478 2 5.2346 -69.0478 -2 4.5858 -68.6142 2 9.9502 -69.9786 2
5 24 -5.235 -69.048 2 -5.235 -69.048 -2 -4.586 -68.614 2 -9.9502 -69.9786 2
Status:
Needs 2 More Votes (F)
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
2013-01-06 17:30:07
May I suggest a 7-8cyli instead? To avoid surface bleeding in the pole.
2019-06-15 15:05:01
The official sub-part s \ 3350bs02.dat should be revised.
There are 3-16 cyli.dat files connected on both sides with simple polygon structures.
Existing certification-votes were deleted.
There are 3-16 cyli.dat files connected on both sides with simple polygon structures.
Existing certification-votes were deleted.
BCF errors.
The rect prims add surface and edges that are no wanted. Please remove them.
The remaining could be made of rect prims, if you correct the unmatching vertices.
Missing complementary condlines.
What's wrong in the 3350bs02 file?
The rect prims add surface and edges that are no wanted. Please remove them.
The remaining could be made of rect prims, if you correct the unmatching vertices.
Missing complementary condlines.
What's wrong in the 3350bs02 file?
