Unofficial File parts/s/u9336s02.dat
File Header:

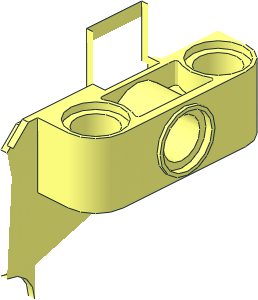

0 ~Electric Powered Up 2 Port Battery Box Bottom Quarter
0 Name: s\u9336s02.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 80 0 80 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 80 0 40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 80 0 60 0 -1 0 1 0 0 0 0 1 connhol3.dat
1 16 80 -10 80 9 0 0 0 20 0 0 0 9 1-4cylo.dat
0 BFC INVERTNEXT
1 16 72 0 60 0 -4 0 0 0 9 -9 0 0 2-4cylo.dat
1 16 68 0 60 0 1 0 0 0 9 -9 0 0 2-4ndis.dat
1 16 72 0 60 0 1 0 0 0 -6 6 0 0 2-4ndis.dat
1 16 72 0 60 0 1 0 0 0 3 3 0 0 2-4ring2.dat
1 16 80 -10 40 9 0 0 0 20 0 0 0 -9 1-4cylo.dat
0 BFC INVERTNEXT
1 16 70 38 21 0 -2 0 0 0 -9 9 0 0 1-4cylo.dat
1 16 70 38 21 0 -1 0 0 0 -9 9 0 0 1-4ndis.dat
1 16 68 38 21 0 1 0 0 0 -9 9 0 0 1-4ndis.dat
1 16 67 -5.5 25.5 0 0 1 -2.5 -1 0 2.5 0 0 rect.dat
1 16 67 -8 39.5 -1 0 0 0 -1 0 0 0 11.5 rect3.dat
1 16 66 -22 60 0 -1 0 -2 0 0 0 0 -9 rect1.dat
4 16 68 -3 23 68 -8 28 68 -8 51 68 29 30
1 16 70 -5 51 0 0 2 -5 0 0 0 -1 0 rect2a.dat
1 16 70 -5 69 2 0 0 0 0 -5 0 1 0 rect2a.dat
1 16 67 -16 51 -1 0 0 0 0 -8 0 -1 0 rect2a.dat
1 16 67 -16 69 0 0 -1 -8 0 0 0 1 0 rect2a.dat
1 16 69 -7.5 25.5 -1 0 0 0 1 2.5 0 0 -2.5 rect.dat
1 16 86.364 0 60 0 -12.7279 0 -9 0 0 0 0 9 3-16cylo.dat
1 16 80.00002 -3.4443 69.15755 -6.3639 0 .00005 0 1 0 0 0 -0.84245 rect3.dat
1 16 86.364 0 60 0 -12.7279 0 -9 0 0 0 0 -9 3-16cylo.dat
1 16 80.00002 -3.4443 50.84245 6.3639 0 0 0 1 0 0 0 0.84245 rect3.dat
1 16 80.00002 3.4443 69.15755 6.3639 0 0 0 -1 0 0 0 -0.84245 rect3.dat
1 16 80.00002 3.4443 50.84245 -6.3639 0 .00005 0 -1 0 0 0 0.84245 rect3.dat
1 16 80 10 80 -9 0 0 0 -1 0 0 0 -9 1-8ndis.dat
1 16 86.364 0 60 0 -12.7279 0 9 0 0 0 0 -9 3-16cylo.dat
1 16 80 10 40 -9 0 0 0 -1 0 0 0 9 1-8ndis.dat
1 16 80 10 80 -9 0 0 0 -1 0 0 0 9 1-4ndis.dat
1 16 80 10 40 -9 0 0 0 -1 0 0 0 -9 1-4ndis.dat
1 16 90 0 60 0 -1 0 9 0 0 0 0 9 4-4cylo.dat
1 16 75 0 31 0 0 -5 -10 0 0 0 1 0 rect3.dat
1 16 80 -10 80 -9 0 0 0 1 0 0 0 9 1-4ndis.dat
1 16 80 -10 80 -9 0 0 0 1 0 0 0 -9 1-8ndis.dat
1 16 80 -10 80 9 0 0 0 1 0 0 0 -9 1-8ndis.dat
1 16 80 -10 40 -9 0 0 0 1 0 0 0 9 1-8ndis.dat
1 16 80 -10 40 9 0 0 0 1 0 0 0 9 1-8ndis.dat
1 16 86.364 0 60 0 -12.7279 0 9 0 0 0 0 9 3-16cylo.dat
1 16 80 10 80 9 0 0 0 -1 0 0 0 -9 1-8ndis.dat
1 16 80 10 40 9 0 0 0 -1 0 0 0 9 1-8ndis.dat
1 16 80 -10 40 -9 0 0 0 1 0 0 0 -9 1-4ndis.dat
3 16 86.3639 -10 70 86.364 -9 60 86.3639 -10 50
2 24 86.3639 -10 70 86.3639 -10 50
2 24 89 -10 80 89 -10 40
3 16 86.364 9 60 86.3639 10 70 86.3639 10 50
2 24 86.3639 10 70 86.3639 10 50
2 24 89 10 80 89 10 40
4 16 89 -10 49 89 -10 71 86.3639 -10 70 86.3639 -10 50
4 16 89 10 49 86.3639 10 50 86.3639 10 70 89 10 71
4 16 89 -10 80 89 -10 71 89 10 71 89 10 80
3 16 89 -10 71 89 0 69 89 10 71
3 16 89 0 69 89 -10 71 89 -6.3639 66.3639
3 16 89 -6.3639 66.3639 89 -10 71 89 -9 60
3 16 89 10 71 89 0 69 89 6.3639 66.3639
3 16 89 10 71 89 6.3639 66.3639 89 9 60
4 16 89 10 49 89 -10 49 89 -10 40 89 10 40
3 16 89 0 51 89 -10 49 89 10 49
3 16 89 -10 49 89 0 51 89 -6.3639 53.6361
3 16 89 -10 49 89 -6.3639 53.6361 89 -9 60
3 16 89 0 51 89 10 49 89 6.3639 53.6361
3 16 89 6.3639 53.6361 89 10 49 89 9 60
3 16 89 -10 49 89 -9 60 89 -10 71
3 16 89 9 60 89 10 49 89 10 71
2 24 68 -8 51 68 0 51
2 24 68 -8 69 68 0 69
2 24 72 -10 69 72 -10 51
4 16 72 -6 54 72 0 54 72 0 51 72 -10 51
4 16 72 -6 54 72 -10 51 72 -10 69 72 -6 66
4 16 72 0 66 72 -6 66 72 -10 69 72 0 69
4 16 71 10 49 71 10 71 73.6361 10 70 73.6361 10 50
1 16 70.5 10 60 -0.5 0 0 0 -1 0 0 0 29 rect1.dat
4 16 68 -10 28 70 -10 28 70 -10 31 68 -10 51
4 16 68 -10 51 70 -10 31 71 -10 31 71 -10 49
4 16 72 -10 69 72 -10 51 73.6361 -10 50 73.6361 -10 70
4 16 71 -10 49 73.6361 -10 50 72 -10 51 68 -10 51
4 16 72 -10 69 73.6361 -10 70 71 -10 71 68 -10 69
3 16 73.6361 -9 60 73.6361 -10 70 73.6361 -10 50
2 24 73.6361 -10 70 73.6361 -10 50
3 16 73.6361 10 70 73.6361 9 60 73.6361 10 50
2 24 73.6361 10 70 73.6361 10 50
2 24 68 -10 28 68 -10 51
2 24 70 -10 28 70 -10 31
4 16 70 -10 31 70 -10 28 70 -5 23 70 10 31
4 16 70 29 30 70 10 89 70 10 31 70 29 21
3 16 70 10 31 70 -5 23 70 29 21
3 16 71 -10 71 73.6361 -10 70 73.6361 -10 71.5321
3 16 71 -10 71 73.6361 -10 71.5321 73.636 -10 73.636
3 16 86.3639 -10 71.5321 86.3639 -10 70 89 -10 71
3 16 86.3639 -10 71.5321 89 -10 71 86.3639 -10 73.6361
1 16 80 -10 70 1 0 0 0 6.5557 0 0 0 1 npeghol7.dat
1 16 80 -10 50 1 0 0 0 6.5557 0 0 0 -1 npeghol7.dat
1 16 80 10 70 1 0 0 0 -6.5557 0 0 0 1 npeghol7.dat
1 16 80 10 50 1 0 0 0 -6.5557 0 0 0 -1 npeghol7.dat
3 16 73.6361 -10 48.4679 73.6361 -10 50 71 -10 49
3 16 73.6361 -10 48.4679 71 -10 49 73.636 -10 46.364
3 16 86.3639 -10 50 86.3639 -10 48.4679 89 -10 49
3 16 89 -10 49 86.3639 -10 48.4679 86.3639 -10 46.3639
3 16 86.3639 10 48.4679 86.3639 10 50 89 10 49
3 16 86.3639 10 48.4679 89 10 49 86.3639 10 46.3639
3 16 73.6361 10 48.4679 71 10 49 73.6361 10 50
3 16 71 10 49 73.6361 10 48.4679 73.636 10 46.364
3 16 86.3639 10 70 86.3639 10 71.5321 89 10 71
3 16 89 10 71 86.3639 10 71.5321 86.3639 10 73.6361
3 16 73.6361 10 70 71 10 71 73.6361 10 71.5321
3 16 73.6361 10 71.5321 71 10 71 73.636 10 73.636
4 16 73.6361 3.4443 51.6849 73.6361 3.4443 50 73.6361 10 50 73.6361 9 60
4 16 73.6361 10 70 73.6361 3.4443 70 73.6361 3.4443 68.3151 73.6361 9 60
4 16 73.6361 -10 50 73.6361 -3.4443 50 73.6361 -3.4443 51.6849 73.6361 -9 60
4 16 73.6361 -3.4443 68.3151 73.6361 -3.4443 70 73.6361 -10 70 73.6361 -9 60
4 16 86.3639 10 50 86.3639 3.4443 50 86.3639 3.4443 51.6849 86.3639 9 60
4 16 86.3639 3.4443 68.3151 86.3639 3.4443 70 86.3639 10 70 86.3639 9 60
4 16 86.3639 -3.4443 51.6849 86.3639 -3.4443 50 86.3639 -10 50 86.3639 -9 60
4 16 86.3639 -10 70 86.3639 -3.4443 70 86.3639 -3.4443 68.3151 86.3639 -9 60
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Used subpart using npeghol7. 24851s01 on its way...
Has scientific notation
Fixed
overlaps on the inside npegholes of the central pinhole
2025-03-23 10:23:56
*inside of the outer side of the npeghol
2025-03-23 11:34:55
should this use npeghol10.dat?
and a 4-4ndis around the outer connhole?
and a 4-4ndis around the outer connhole?
Fixed overlap. npeghol10 doesn't work (different wall thicknesses). ndis needs more vertices.
2025-06-02 12:35:44
2025-06-02 12:37:20
