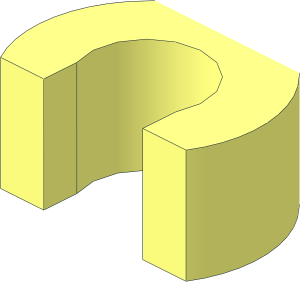

Vertical Thick Clip for Flags
0 Vertical Thick Clip for Flags
0 Name: clip16.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Primitive UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-06-09 [MMR1988] Removed commented section at file end, removed two conds
0 !HISTORY 2022-06-09 [MMR1988] Fixed one edge, added two optional condlines
0 !HISTORY 2023-03-05 [OrionP] Official Update 2023-01
0 !HISTORY 2024-02-27 [Holly-Wood] Complete re-write, original by Berth
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
