Official File p/connect10.dat

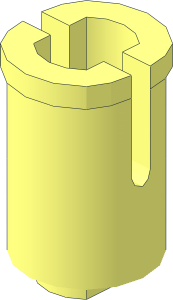

Technic Pin 1.0 without Base Collar and Rectangular Centre Hole
File Header:
0 Technic Pin 1.0 without Base Collar and Rectangular Centre Hole 0 Name: connect10.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Primitive UPDATE 2023-06 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06
Show contents
1 16 0 -20 0 1 0 0 0 1 0 0 0 1 connectcollar3.dat 1 16 0 -20 0 1 0 0 0 1 0 0 0 -1 connectcollar3.dat 0 BFC INVERTNEXT 1 16 0 -10 0 2.82843 0 -2.82843 0 10 0 2.82843 0 2.82843 1-4cyli.dat 0 BFC INVERTNEXT 1 16 0 -10 0 2.82843 0 -2.82843 0 10 0 -2.82843 0 -2.82843 1-4cyli.dat 1 16 0 0 0 2.82843 0 -2.82843 0 1 0 2.82843 0 2.82843 1-4edge.dat 1 16 0 0 0 2.82843 0 -2.82843 0 1 0 -2.82843 0 -2.82843 1-4edge.dat 1 16 0 0 0 2.82843 0 -2.82843 0 1 0 2.82843 0 2.82843 1-4chrd.dat 1 16 0 0 0 2.82843 0 -2.82843 0 1 0 -2.82843 0 -2.82843 1-4chrd.dat 1 16 -2.82843 -5 0 0 -1 0 5 0 0 0 0 2.82843 rect2p.dat 1 16 2.82843 -5 0 0 1 0 5 0 0 0 0 2.82843 rect2p.dat 1 16 0 0 0 0 0 -2.82843 0 1 0 -2.82843 0 0 rect2p.dat 1 16 0 -10 0 6 0 0 0 8 0 0 0 6 4-4cyli.dat
Status:
Official Official
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 0 -10 0 2.82843 0 -2.82843 0 10 0 2.82843 0 2.82843 1-4cyli.dat
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 0 -10 0 2.82843 0 -2.82843 0 10 0 -2.82843 0 -2.82843 1-4cyli.dat
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 0 0 0 2.82843 0 -2.82843 0 1 0 2.82843 0 2.82843 1-4edge.dat
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 0 0 0 2.82843 0 -2.82843 0 1 0 -2.82843 0 -2.82843 1-4edge.dat
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 0 0 0 2.82843 0 -2.82843 0 1 0 2.82843 0 2.82843 1-4chrd.dat
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 0 0 0 2.82843 0 -2.82843 0 1 0 -2.82843 0 -2.82843 1-4chrd.dat
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 -2.82843 -5 0 0 -1 0 5 0 0 0 0 2.82843 rect2p.dat
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 2.82843 -5 0 0 1 0 5 0 0 0 0 2.82843 rect2p.dat
  • 5 decimal places exceeds the recommendation for Primitive in the library specification
    Line text: 1 16 0 0 0 0 0 -2.82843 0 1 0 -2.82843 0 0 rect2p.dat
  • Number in description may need a leading space
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
