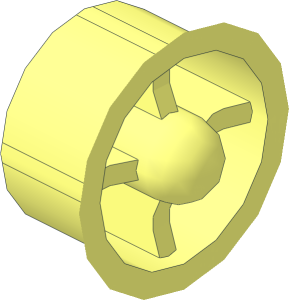

Duplo Hinge Pin with Deep Recess and Reinforcements

File Header:

0 Duplo Hinge Pin with Deep Recess and Reinforcements
0 Name: dhingepin2.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Primitive UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09

Show contents

1 16 20 0 0 0 6 0 6 0 0 0 0 6 4-8sphe.dat
1 16 3 0 0 0 17 0 -6 0 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 3 0 0 0 18 0 15.2 0 0 0 0 15.2 4-4cylc.dat
1 16 21 0 0 0 -1 0 0 0 3.8 3.8 0 0 4-4ring4.dat
1 16 3 0 0 0 1 0 -6 0 0 0 0 6 4-4edge.dat

0 // 1 16 0 0 0 0 0 1 0 1 0 -1 0 0 m15449.dat
2 24 18.1001 -1.5 14.9017 16.898 -1.5 11.299
2 24 18.4495 -1.5 5.7017 16.898 -1.5 9.299
2 24 16.898 -1.5 9.299 16.898 -1.5 11.299
2 24 18.1001 1.5 14.9017 16.898 1.5 11.299
2 24 18.4495 1.5 5.7017 16.898 1.5 9.299
2 24 16.898 1.5 9.299 16.898 1.5 11.299
4 16 16.898 -1.5 11.299 16.898 1.5 11.299 18.1001 1.5 14.9017 18.1001 -1.5 14.9017
4 16 18.4495 -1.5 5.7017 18.4495 1.5 5.7017 16.898 1.5 9.299 16.898 -1.5 9.299
4 16 16.898 -1.5 9.299 16.898 1.5 9.299 16.898 1.5 11.299 16.898 -1.5 11.299
5 24 16.898 1.5 9.299 16.898 -1.5 9.299 18.4495 1.5 5.7017 16.898 1.5 11.299
5 24 16.898 1.5 11.299 16.898 -1.5 11.299 16.898 1.5 9.299 18.1001 1.5 14.9017
2 24 18.4495 1.5 5.7017 18.3209 0 6
2 24 18.4495 -1.5 5.7017 18.3209 0 6
2 24 18.1001 -1.5 14.9017 18.1997 0 15.2
2 24 18.1997 0 15.2 18.1001 1.5 14.9017
3 16 18.1001 -1.5 14.9017 18.1001 1.5 14.9017 18.1997 0 15.2
1 16 3 0 10.3017 0 -1 0 0 0 -1.5 4.6 0 0 rect2p.dat
4 16 16.898 -1.5 9.299 16.898 -1.5 11.299 3 -1.5 14.9017 3 -1.5 5.7017
3 16 16.898 -1.5 11.299 18.1001 -1.5 14.9017 3 -1.5 14.9017
3 16 18.4495 -1.5 5.7017 16.898 -1.5 9.299 3 -1.5 5.7017
2 24 18.1001 -1.5 14.9017 3 -1.5 14.9017
2 24 3 -1.5 5.7017 18.4495 -1.5 5.7017
4 16 3 1.5 14.9017 16.898 1.5 11.299 16.898 1.5 9.299 3 1.5 5.7017
3 16 18.1001 1.5 14.9017 16.898 1.5 11.299 3 1.5 14.9017
3 16 16.898 1.5 9.299 18.4495 1.5 5.7017 3 1.5 5.7017
2 24 18.1001 1.5 14.9017 3 1.5 14.9017
2 24 3 1.5 5.7017 18.4495 1.5 5.7017
2 24 18.1001 -14.9017 -1.5 16.898 -11.299 -1.5
2 24 18.4495 -5.7017 -1.5 16.898 -9.299 -1.5
2 24 16.898 -9.299 -1.5 16.898 -11.299 -1.5
2 24 18.1001 -14.9017 1.5 16.898 -11.299 1.5
2 24 18.4495 -5.7017 1.5 16.898 -9.299 1.5
2 24 16.898 -9.299 1.5 16.898 -11.299 1.5
4 16 16.898 -11.299 -1.5 16.898 -11.299 1.5 18.1001 -14.9017 1.5 18.1001 -14.9017 -1.5
4 16 18.4495 -5.7017 -1.5 18.4495 -5.7017 1.5 16.898 -9.299 1.5 16.898 -9.299 -1.5
4 16 16.898 -9.299 -1.5 16.898 -9.299 1.5 16.898 -11.299 1.5 16.898 -11.299 -1.5
5 24 16.898 -9.299 1.5 16.898 -9.299 -1.5 18.4495 -5.7017 1.5 16.898 -11.299 1.5
5 24 16.898 -11.299 1.5 16.898 -11.299 -1.5 16.898 -9.299 1.5 18.1001 -14.9017 1.5
2 24 18.4495 -5.7017 1.5 18.3209 -6 0
2 24 18.4495 -5.7017 -1.5 18.3209 -6 0
2 24 18.1001 -14.9017 -1.5 18.1997 -15.2 0
2 24 18.1997 -15.2 0 18.1001 -14.9017 1.5
3 16 18.1001 -14.9017 -1.5 18.1001 -14.9017 1.5 18.1997 -15.2 0
1 16 3 -10.3017 0 0 -1 0 -4.6 0 0 0 0 -1.5 rect2p.dat
4 16 16.898 -9.299 -1.5 16.898 -11.299 -1.5 3 -14.9017 -1.5 3 -5.7017 -1.5
3 16 16.898 -11.299 -1.5 18.1001 -14.9017 -1.5 3 -14.9017 -1.5
3 16 18.4495 -5.7017 -1.5 16.898 -9.299 -1.5 3 -5.7017 -1.5
2 24 18.1001 -14.9017 -1.5 3 -14.9017 -1.5
2 24 3 -5.7017 -1.5 18.4495 -5.7017 -1.5
4 16 3 -14.9017 1.5 16.898 -11.299 1.5 16.898 -9.299 1.5 3 -5.7017 1.5
3 16 18.1001 -14.9017 1.5 16.898 -11.299 1.5 3 -14.9017 1.5
3 16 16.898 -9.299 1.5 18.4495 -5.7017 1.5 3 -5.7017 1.5
2 24 18.1001 -14.9017 1.5 3 -14.9017 1.5
2 24 3 -5.7017 1.5 18.4495 -5.7017 1.5
2 24 18.1001 1.5 -14.9017 16.898 1.5 -11.299
2 24 18.4495 1.5 -5.7017 16.898 1.5 -9.299
2 24 16.898 1.5 -9.299 16.898 1.5 -11.299
2 24 18.1001 -1.5 -14.9017 16.898 -1.5 -11.299
2 24 18.4495 -1.5 -5.7017 16.898 -1.5 -9.299
2 24 16.898 -1.5 -9.299 16.898 -1.5 -11.299
4 16 16.898 1.5 -11.299 16.898 -1.5 -11.299 18.1001 -1.5 -14.9017 18.1001 1.5 -14.9017
4 16 18.4495 1.5 -5.7017 18.4495 -1.5 -5.7017 16.898 -1.5 -9.299 16.898 1.5 -9.299
4 16 16.898 1.5 -9.299 16.898 -1.5 -9.299 16.898 -1.5 -11.299 16.898 1.5 -11.299
5 24 16.898 -1.5 -9.299 16.898 1.5 -9.299 18.4495 -1.5 -5.7017 16.898 -1.5 -11.299
5 24 16.898 -1.5 -11.299 16.898 1.5 -11.299 16.898 -1.5 -9.299 18.1001 -1.5 -14.9017
2 24 18.4495 -1.5 -5.7017 18.3209 0 -6
2 24 18.4495 1.5 -5.7017 18.3209 0 -6
2 24 18.1001 1.5 -14.9017 18.1997 0 -15.2
2 24 18.1997 0 -15.2 18.1001 -1.5 -14.9017
3 16 18.1001 1.5 -14.9017 18.1001 -1.5 -14.9017 18.1997 0 -15.2
1 16 3 0 -10.3017 0 -1 0 0 0 1.5 -4.6 0 0 rect2p.dat
4 16 16.898 1.5 -9.299 16.898 1.5 -11.299 3 1.5 -14.9017 3 1.5 -5.7017
3 16 16.898 1.5 -11.299 18.1001 1.5 -14.9017 3 1.5 -14.9017
3 16 18.4495 1.5 -5.7017 16.898 1.5 -9.299 3 1.5 -5.7017
2 24 18.1001 1.5 -14.9017 3 1.5 -14.9017
2 24 3 1.5 -5.7017 18.4495 1.5 -5.7017
4 16 3 -1.5 -14.9017 16.898 -1.5 -11.299 16.898 -1.5 -9.299 3 -1.5 -5.7017
3 16 18.1001 -1.5 -14.9017 16.898 -1.5 -11.299 3 -1.5 -14.9017
3 16 16.898 -1.5 -9.299 18.4495 -1.5 -5.7017 3 -1.5 -5.7017
2 24 18.1001 -1.5 -14.9017 3 -1.5 -14.9017
2 24 3 -1.5 -5.7017 18.4495 -1.5 -5.7017
2 24 18.1001 14.9017 1.5 16.898 11.299 1.5
2 24 18.4495 5.7017 1.5 16.898 9.299 1.5
2 24 16.898 9.299 1.5 16.898 11.299 1.5
2 24 18.1001 14.9017 -1.5 16.898 11.299 -1.5
2 24 18.4495 5.7017 -1.5 16.898 9.299 -1.5
2 24 16.898 9.299 -1.5 16.898 11.299 -1.5
4 16 16.898 11.299 1.5 16.898 11.299 -1.5 18.1001 14.9017 -1.5 18.1001 14.9017 1.5
4 16 18.4495 5.7017 1.5 18.4495 5.7017 -1.5 16.898 9.299 -1.5 16.898 9.299 1.5
4 16 16.898 9.299 1.5 16.898 9.299 -1.5 16.898 11.299 -1.5 16.898 11.299 1.5
5 24 16.898 9.299 -1.5 16.898 9.299 1.5 18.4495 5.7017 -1.5 16.898 11.299 -1.5
5 24 16.898 11.299 -1.5 16.898 11.299 1.5 16.898 9.299 -1.5 18.1001 14.9017 -1.5
2 24 18.4495 5.7017 -1.5 18.3209 6 0
2 24 18.4495 5.7017 1.5 18.3209 6 0
2 24 18.1001 14.9017 1.5 18.1997 15.2 0
2 24 18.1997 15.2 0 18.1001 14.9017 -1.5
3 16 18.1001 14.9017 1.5 18.1001 14.9017 -1.5 18.1997 15.2 0
1 16 3 10.3017 0 0 -1 0 4.6 0 0 0 0 1.5 rect2p.dat
4 16 16.898 9.299 1.5 16.898 11.299 1.5 3 14.9017 1.5 3 5.7017 1.5
3 16 16.898 11.299 1.5 18.1001 14.9017 1.5 3 14.9017 1.5
3 16 18.4495 5.7017 1.5 16.898 9.299 1.5 3 5.7017 1.5
2 24 18.1001 14.9017 1.5 3 14.9017 1.5
2 24 3 5.7017 1.5 18.4495 5.7017 1.5
4 16 3 14.9017 -1.5 16.898 11.299 -1.5 16.898 9.299 -1.5 3 5.7017 -1.5
3 16 18.1001 14.9017 -1.5 16.898 11.299 -1.5 3 14.9017 -1.5
3 16 16.898 9.299 -1.5 18.4495 5.7017 -1.5 3 5.7017 -1.5
2 24 18.1001 14.9017 -1.5 3 14.9017 -1.5
2 24 3 5.7017 -1.5 18.4495 5.7017 -1.5
