Official File p/npeghol6d.dat

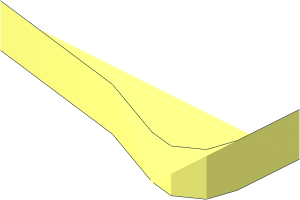

Technic Peg Hole Negative 0.25 without Extension
File Header:
0 Technic Peg Hole Negative 0.25 without Extension 0 Name: npeghol6d.dat 0 Author: Max Murtazin [SwampKryakwa] 0 !LDRAW_ORG Primitive UPDATE 2024-02 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2018-04-02 [MagFors] adapted to four digit decimals 0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02 0 !HISTORY 2022-07-08 [SwampKryakwa] New primitive shape - corners of npegholes are now smoothed similar to the actual lego parts 0 !HISTORY 2022-11-15 [Holly-Wood] Sanded part 0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03 0 !HISTORY 2024-02-29 [OrionP] Update author to Max Murtazin 0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 6.3639 .5 9.23394 0 1 0 0 0 .5 .76606 0 0 rect2p.dat 4 16 5.09822 1 7.62975 6.3639 1 8.46788 6.3639 1 10 3.4443 1 8.3151 4 16 0 1 9 3.4443 1 8.3151 6.3639 1 10 0 1 10 0 BFC INVERTNEXT 1 16 5.58171 0 8.3 .78219 0 .09843 0 1 0 .16788 0 -.78 8\3-8cylo.dat 1 16 5.58171 1 8.3 .78219 0 .09843 0 1 0 .16788 0 -.78 8\3-8chrd.dat 5 24 5.09822 1 7.62975 5.09817 0 7.62975 5.68014 0 7.52 3.44418 0 8.31515 5 24 6.3639 1 8.46788 6.3639 0 8.46788 6.2044 0 7.86717 6.3603 1 11.5321 5 24 3.44418 0 8.31515 3.4443 1 8.3151 5.09817 0 7.62975 0 0 9 1 16 0 0 0 6.36396 0 -6.36396 0 1 0 6.36396 0 6.36396 1-16tang.dat 3 16 5.68014 0 7.52 5.09817 0 7.62975 6.36396 0 6.36396 3 16 5.68014 0 7.52 6.36396 0 6.36396 6.2044 0 7.86717 3 16 6.2044 0 7.86717 6.36396 0 6.36396 6.3639 0 8.46788 1 16 0 0 0 0 0 9 0 1 0 9 0 0 1-16cylo.dat 4 16 3.4443 1 8.3151 3.44418 0 8.31515 5.09817 0 7.62975 5.09822 1 7.62975 2 24 5.09817 0 7.62975 3.44418 0 8.31515 2 24 5.09817 1 7.62975 3.44418 1 8.31515
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 17: 1 16 6.3639 .5 9.23394 0 1 0 0 0 .5 .76606 0 0 rect2p.dat
    Line 18: 4 16 5.09822 1 7.62975 6.3639 1 8.46788 6.3639 1 10 3.4443 1 8.3151
    Line 22: 1 16 5.58171 0 8.3 .78219 0 .09843 0 1 0 .16788 0 -.78 8\3-8cylo.dat
    Line 23: 1 16 5.58171 1 8.3 .78219 0 .09843 0 1 0 .16788 0 -.78 8\3-8chrd.dat
    Line 24: 5 24 5.09822 1 7.62975 5.09817 0 7.62975 5.68014 0 7.52 3.44418 0 8.31515
    Line 25: 5 24 6.3639 1 8.46788 6.3639 0 8.46788 6.2044 0 7.86717 6.3603 1 11.5321
    Line 26: 5 24 3.44418 0 8.31515 3.4443 1 8.3151 5.09817 0 7.62975 0 0 9
    Line 27: 1 16 0 0 0 6.36396 0 -6.36396 0 1 0 6.36396 0 6.36396 1-16tang.dat
    Line 28: 3 16 5.68014 0 7.52 5.09817 0 7.62975 6.36396 0 6.36396
    Line 29: 3 16 5.68014 0 7.52 6.36396 0 6.36396 6.2044 0 7.86717
    Line 30: 3 16 6.2044 0 7.86717 6.36396 0 6.36396 6.3639 0 8.46788
    Line 33: 4 16 3.4443 1 8.3151 3.44418 0 8.31515 5.09817 0 7.62975 5.09822 1 7.62975
    Line 34: 2 24 5.09817 0 7.62975 3.44418 0 8.31515
    Line 35: 2 24 5.09817 1 7.62975 3.44418 1 8.31515
  • Number in description may need a leading space
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Max Murtazin
Licensed under CC BY 4.0
