Unofficial File p/stud-high-contrast.dat
File Header:
0 Stud High Contrast for Instructions
0 Name: stud-high-contrast.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Primitive
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP This file is a modified version of stud.dat with all vertical surfaces
0 !HELP colored black hardcodedly. This variant can be used as a substitute for
0 !HELP stud.dat by instruction-generating software when a high visual
0 !HELP contrast at studs is desired.
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 -4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 0 0 0 0 6 0 0 0 -4 0 0 0 6 4-4cyli.dat
1 16 0 -4 0 6 0 0 0 1 0 0 0 6 4-4disc.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2018-12-28 05:20:01

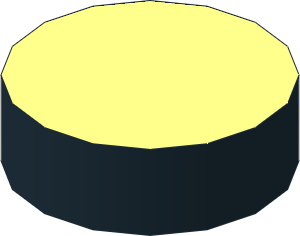

note that the PT has an error here and shows a wrong image:
the image shown is all-black.
however, in the file, only the vertical surfaces are.
the top surface is color 16.
the image shown is all-black.
however, in the file, only the vertical surfaces are.
the top surface is color 16.
2018-12-29 08:14:25
Rendering bug fixed.
2025-02-04 17:40:42
The file itself is correct. But maybe it's an obsolete project?
Creative Commons Attribution License information
This part is copyright © Steffen
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
(similar to stud-logo.dat, stud-logo2.dat, stud-logo3.dat, stud-logo4.dat, stud-logo5.dat) which can be used by
instruction-generating software as a substitute for stud.dat
when increased visual contrast at studs is desired.
this variant has all vertical surfaces colored black hardcodedly.
