Official File p/type-engraved-swiss721bt-n1.dat

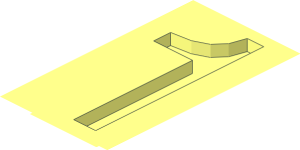

Type Engraved Swiss721BT Number "1"
File Header:
0 Type Engraved Swiss721BT Number "1" 0 Name: type-engraved-swiss721bt-n1.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Primitive UPDATE 2025-02 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
Show contents
4 16 -3 0 -4 -0.2078 0 -3.36 -2.0191 0 2.1745 -3 0 5 4 16 -0.2078 0 -3.36 -3 0 -4 2 0 -4 0.8159 0 -3.36 4 16 0.0496 0 4.4713 -3 0 5 -2.0191 0 2.9663 -1.1558 0 3.0649 3 16 -2.0191 0 2.9663 -3 0 5 -2.0191 0 2.1745 4 16 -1.1558 0 3.0649 -0.5362 0 3.3384 -0.1408 0 3.8021 0.0496 0 4.4713 3 16 -2.0191 0 2.1745 -0.2078 0 -3.36 -0.2078 0 2.1745 4 16 2 0 5 0.8159 0 4.4713 0.8159 0 -3.36 2 0 -4 4 16 0.0496 0 4.4713 0.8159 0 4.4713 2 0 5 -3 0 5 2 24 -0.5362 0 3.3384 -0.1408 0 3.8021 2 24 -2.0191 0 2.9663 -1.1558 0 3.0649 2 24 -0.1408 0 3.8021 0.0496 0 4.4713 2 24 -1.1558 0 3.0649 -0.5362 0 3.3384 1 16 0.8159 0.25 0.55565 0 1 0 -0.25 0 0 0 0 3.91565 rect.dat 1 16 0.43275 0.25 4.4713 0 0 -0.38315 -0.25 0 0 0 1 0 rect3.dat 4 16 0.0496 0.5 4.4713 0.0496 0 4.4713 -0.1408 0 3.8021 -0.1408 0.5 3.8021 4 16 -0.1408 0.5 3.8021 -0.1408 0 3.8021 -0.5362 0 3.3384 -0.5362 0.5 3.3384 1 16 -2.0191 0.25 2.5704 0 -1 0 -0.25 0 0 0 0 -0.3959 rect.dat 1 16 -1.11345 0.25 2.1745 0 0 0.90565 -0.25 0 0 0 -1 0 rect3.dat 1 16 -0.2078 0.25 -0.59275 0 -1 0 -0.25 0 0 0 0 -2.76725 rect3.dat 1 16 0.30405 0.25 -3.36 0.51185 0 0 0 0 0.25 0 -1 0 rect2p.dat 4 16 -0.5362 0.5 3.3384 -0.5362 0 3.3384 -1.1558 0 3.0649 -1.1558 0.5 3.0649 4 16 -1.1558 0.5 3.0649 -1.1558 0 3.0649 -2.0191 0 2.9663 -2.0191 0.5 2.9663 5 24 -0.1408 0 3.8021 -0.1408 0.5 3.8021 0.0496 0 4.4713 -0.5362 0 3.3384 5 24 -1.1558 0 3.0649 -1.1558 0.5 3.0649 -0.5362 0 3.3384 -2.0191 0 2.9663 5 24 -0.5362 0 3.3384 -0.5362 0.5 3.3384 -1.1558 0 3.0649 -0.1408 0 3.8021 2 24 -0.5362 0.5 3.3384 -0.1408 0.5 3.8021 2 24 -2.0191 0.5 2.9663 -1.1558 0.5 3.0649 2 24 -0.1408 0.5 3.8021 0.0496 0.5 4.4713 2 24 -1.1558 0.5 3.0649 -0.5362 0.5 3.3384 4 16 1 0.5 -3.5 1 0.5 4.8 -2.1 0.5 4.8 -2.1 0.5 -3.5
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 23: 1 16 0.8159 0.25 0.55565 0 1 0 -0.25 0 0 0 0 3.91565 rect.dat
    Line 24: 1 16 0.43275 0.25 4.4713 0 0 -0.38315 -0.25 0 0 0 1 0 rect3.dat
    Line 28: 1 16 -1.11345 0.25 2.1745 0 0 0.90565 -0.25 0 0 0 -1 0 rect3.dat
    Line 29: 1 16 -0.2078 0.25 -0.59275 0 -1 0 -0.25 0 0 0 0 -2.76725 rect3.dat
    Line 30: 1 16 0.30405 0.25 -3.36 0.51185 0 0 0 0 0.25 0 -1 0 rect2p.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
