Official File parts/s/31452s03.dat
File Header:

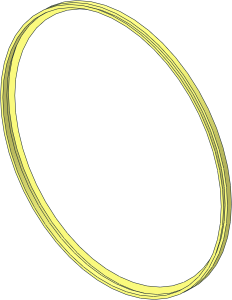

0 ~Duplo Ball Tube - Connector
0 Name: s\31452s03.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03
Show contents
1 16 0 0 0 66 0 0 0 0 66 0 -1 0 48\4-4edge.dat
1 16 0 0 0 2 0 0 0 0 2 0 -1 0 48\4-4ring33.dat
1 16 0 0 0 2 0 0 0 0 2 0 -1 0 48\4-4ring34.dat
1 16 0 0 0 70 0 0 0 0 70 0 -2.5 0 48\4-4cylo.dat
1 16 0 0 -2.5 1.45833 0 0 0 0 1.45833 0 1 0 48\4-4ring47.dat
1 16 0 0 -5 1.45833 0 0 0 0 1.45833 0 -1 0 48\4-4ring47.dat
1 16 0 0 -2.5 68.5415 0 0 0 0 68.5415 0 -2.5 0 48\4-4cylo.dat
1 16 0 0 -5 70 0 0 0 0 70 0 -1 0 48\4-4edge.dat
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 -2.5 1.45833 0 0 0 0 1.45833 0 1 0 48\4-4ring47.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 -5 1.45833 0 0 0 0 1.45833 0 -1 0 48\4-4ring47.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
