File Detail parts/3504.dat

Official File parts/3504.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

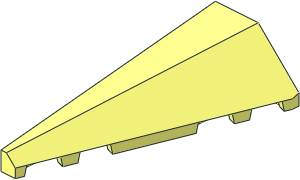

0 Wedge  2 x  5 Straight Left
0 Name: 3504.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS slope

0 !HISTORY 2023-02-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-02-03 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3504s01.dat
4 16 10 -24 50 -10 -24 50 -10 -8.1667 -50 -7.4967 -8.1667 -50
3 16 29 -4 46.9997 29 -5 50 10 -24 50
4 16 29 -4 46.9997 10 -24 50 -7.49666714 -8.1666663 -50 -3.33 -4 -50

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2023-02-03 17:44:23

Parts are shown by LEGO designer in this video at t=13:00 and t=21:21
https://youtu.be/4hNp-45OFFg

Philippe Hurbain [Philo]

submitted a new version of the part.

2023-02-15 09:26:57

Adjusted top slope to match 4515.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2023-02-19 15:03:43

Hold
Duplicating edge lines, hidden on the inside:
2 5 14 -4.0027 13.3804 14 -14.7 46
2 5 -6.6188 -4 -48.4822 25.7112 -4 48.5175

Comment
I guess, on a real part these lines line up to a single point.
2 4 -50 -24 -10 70 -5 -10
2 4 -50 -5 30 70 -5 -10
2 4 -50 -24 10 70 -5 -10
... but due to the design of 3040, the toe height, its impossible.
The side slope has to be 45 degrees.

Philippe Hurbain [Philo]

submitted a new version of the part.

2023-02-20 16:41:52

Removed overlapping lines.
Indeed, they should meet... but I had to tune the shape so that it fits existing slopes and wedges as shown here
https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEis-Lgh5a6DD6xUBgEn0B2Wyd8O6CnTxGQjTU3HZDwPTkrojc38lo5TpWx0dGSorBLX3ucnOurAu-U60LCRVMPG-y-frlsBeansAsNQd4LQoPX5uuGxiJIAj-M27oDNfrijOfjngi9Qh_1XOilrLj_b8fwlFbGT-b8190W-WganXvYr3mfPfxUssvJDZA/s1800/Pagani-19.jpg

Mark Kennedy [mkennedy]

made the following comment.

2024-03-02 02:51:45

Should there be a version without the surface since they seem to apply a pattern to the part in set 76919?

Philippe Hurbain [Philo]

submitted a new version of the part.

2024-03-02 13:49:13

Subparted for patterns
