Official File parts/3387.dat
Part Attributes:
File Header:

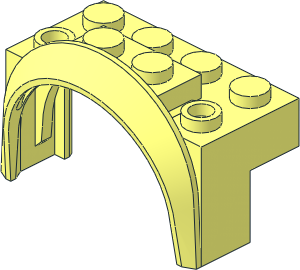

0 Car Mudguard 4 x 2.5 x 2
0 Name: 3387.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
Show contents
