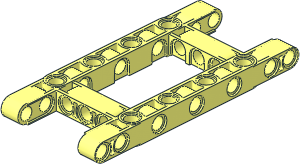

0 Technic Beam 11 x 5 with Open Center 5 x 3
0 Name: 64178.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
0 !HISTORY 2022-12-24 [SwampKryakwa] Use of connhol2 primitives
0 !HISTORY 2025-01-14 [notmaster] added missing edges removed empty comments removed extra surfaces
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\64178s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\64178s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\64178s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\64178s01.dat
1 16 0 0 -60 1 0 0 0 0 1 0 -1 0 connhol2.dat
1 16 0 0 60 -1 0 0 0 0 1 0 1 0 connhol2.dat
1 16 40 0 0 0 1 0 0 0 1 1 0 0 connhol2.dat
1 16 -40 0 0 0 -1 0 0 0 1 1 0 0 connhol2.dat
1 16 50 0 0 0 -1 0 0 0 9 9 0 0 4-4ndis.dat
1 16 -50 0 0 0 1 0 0 0 9 9 0 0 4-4ndis.dat
1 16 30 0 0 0 1 0 0 0 -8 -8 0 0 2-4ndis.dat
4 16 30 -9 8 30 -8 8 30 -8 -8 30 -9 -8
1 16 -30 0 0 0 -1 0 0 0 -8 -8 0 0 2-4ndis.dat
4 16 -30 -9 8 -30 -9 -8 -30 -8 -8 -30 -8 8
1 16 0 0 -50 8 0 0 0 0 -8 0 -1 0 2-4ndis.dat
1 16 0 0 50 8 0 0 0 0 -8 0 1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -30 8.5 0 0 -2 0 .5 0 0 0 0 8 box3u8p.dat
1 16 -31 9.5 -8 1 0 0 0 0 .5 0 -1 0 rect3.dat
1 16 -31 9.5 8 1 0 0 0 0 .5 0 1 0 rect3.dat
0 BFC INVERTNEXT
1 16 30 8.5 0 0 2 0 .5 0 0 0 0 -8 box3u8p.dat
1 16 31 9.5 8 -1 0 0 0 0 .5 0 1 0 rect3.dat
1 16 31 9.5 -8 -1 0 0 0 0 .5 0 -1 0 rect3.dat
0 BFC INVERTNEXT
1 16 0 8.5 50 0 0 8 .5 0 0 0 2 0 box3u8p.dat
0 BFC INVERTNEXT
1 16 0 8.5 -50 0 0 -8 .5 0 0 0 -2 0 box3u8p.dat
None
This part is copyright © Santeri Piippo
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Max Murtazin,
Jeff Jones,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
2 5 -30 10 -8 -32 10 -8
2 5 -30 10 8 -32 10 8
2 5 32 10 8 30 10 8
2 5 32 10 -8 30 10 -8
All the added extra surfaces added 4 times here, could be added once in the subfiles instead. Or better, adapt the subfile.
4 13 8 8 52 -8 8 52 -8 9 52 8 9 52
4 13 8 9 -52 -8 9 -52 -8 8 -52 8 8 -52
4 13 32 8 -8 32 8 8 32 9 8 32 9 -8
4 13 30 -9 -8 30 -9 8 30 -8 8 30 -8 -8
4 13 -32 9 -8 -32 9 8 -32 8 8 -32 8 -8
4 13 -30 -8 -8 -30 -8 8 -30 -9 8 -30 -9 -8
1 12 8 8.5 51 0 1 0 -.5 0 0 0 0 1 rect2p.dat
1 12 -8 8.5 51 0 -1 0 -.5 0 0 0 0 1 rect2p.dat
1 12 8 8.5 -51 0 1 0 -.5 0 0 0 0 -1 rect2p.dat
1 12 -8 8.5 -51 0 -1 0 -.5 0 0 0 0 -1 rect2p.dat
1 12 31 9 -8 0 0 1 -1 0 0 0 -1 0 rect2p.dat
1 12 31 9 8 0 0 1 -1 0 0 0 1 0 rect2p.dat
1 12 -31 9 -8 0 0 -1 -1 0 0 0 -1 0 rect2p.dat
1 12 -31 9 8 0 0 -1 -1 0 0 0 1 0 rect2p.dat
All the empty comments,
0 //
should be removed.
