Unofficial File parts/50231c03.dat
Part Attributes: Base Part: 50231.dat

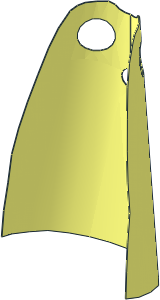

Minifig Cape Cloth (Formed Curtain)
File Header:
0 Minifig Cape Cloth (Formed Curtain) 0 Name: 50231c03.dat 0 Author: Willy Tschager [Holly-Wood] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP This cape has been modelled specifically for 10211 - Grand Emporium 0 !HELP Use the following code to position them properly: 0 !HELP 1 16 20 -120 80 1 0 0 0 1 0 0 0 1 87087.dat 0 !HELP 1 16 -80 -120 -20 0 0 -1 0 1 0 1 0 0 87087.dat 0 !HELP 1 16 20 -108 20 0 0.225 0.974 0 0.974 -0.225 1 0 0 50231c03.dat 0 !HELP 1 16 -20 -108 -20 -1 0 0 0 0.974 -0.225 0 -0.225 -0.974 50231c03.dat 0 !HELP For the rod a Rigid hose 3 mm LDCAD template with the following values has been used: 0 !HELP 0 !LDCAD PATH_POINT [type=bezier] [posOri=0 0 0 0 -1 0 0 0 1 -1 0 0] [prevCPDist=25] [nextCPDist=5] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0] 0 !HELP 0 !LDCAD PATH_POINT [type=bezier] [posOri=20 0 0 0 -1 0 0 0 1 -1 0 0] [prevCPDist=5] [nextCPDist=66] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0] 0 !HELP 0 !LDCAD PATH_POINT [type=bezier] [posOri=86 0 -66 -1 0 0 0 0 1 0 1 0] [prevCPDist=66] [nextCPDist=5] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0] 0 !HELP 0 !LDCAD PATH_POINT [type=bezier] [posOri=86 0 -86 -1 0 0 0 0 1 0 1 0] [prevCPDist=5] [nextCPDist=25] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0] 0 BFC CERTIFY CCW 0 !CATEGORY Sheet Fabric 0 !KEYWORDS changing room, Grand Emporium, set 10211
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\50231c03s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\50231c03s01.dat
Status:
Not releaseable Needs More Votes (N) Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:

None

Official parents and subparts
Part Events:
Willy Tschager [Holly-Wood]
Senior Part Reviewer
initially submitted the part.
2023-02-15 16:00:55
N. W. Perry [Plastikean]
Part Reviewer
made the following comment.
2024-12-03 02:37:37
Upper section looks great, but the lower half causes collision when two are placed side by side as in the official set. Should the bottom edge be flared out more widely, almost like the cape version (c01)?
Willy Tschager [Holly-Wood]
Senior Part Reviewer
made the following comment.
2024-12-03 06:00:52
This has been made specifically for the 10211 - Grand Emporium:
https://forums.ldraw.org/thread-22624-post-50284.html#pid50284

And great care has been used to avoid collision, so please show me where you find it:

1 0 20 -108 20 0 0.225 0.974 0 0.974 -0.225 1 0 0 10211 - 50231c03.dat
1 71 20 -110 66 0 0 1 0 1 0 -1 0 0 10211 - Ground Floor - Curtain-rod.ldr
1 0 -20 -108 -20 -1 0 0 0 0.974 -0.225 0 -0.225 -0.974 10211 - 50231c03.dat

0 !LDCAD CONTENT [type=path] [addFallBack=default] [looped=false] [displayKind=L] [curveStep=0] [displayLenCor=0]

0 !LDCAD PATH_POINT [type=bezier] [posOri=0 0 0 0 -1 0 0 0 1 -1 0 0] [prevCPDist=25] [nextCPDist=5] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0]
0 !LDCAD PATH_POINT [type=bezier] [posOri=20 0 0 0 -1 0 0 0 1 -1 0 0] [prevCPDist=5] [nextCPDist=66] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0]
0 !LDCAD PATH_POINT [type=bezier] [posOri=86 0 -66 -1 0 0 0 0 1 0 1 0] [prevCPDist=66] [nextCPDist=5] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0]
0 !LDCAD PATH_POINT [type=bezier] [posOri=86 0 -86 -1 0 0 0 0 1 0 1 0] [prevCPDist=5] [nextCPDist=25] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0]

0 !LDCAD PATH_SKIN [donCol=16] [donOri=-1 0 0 0 -1 0 0 0 1] [donPart=ldcRigid3mmHoseCap.dat] [donYSize=200%] [donCen=absCen] [donCenYOfs=0] [donFinScale=fitDon2Seg] [donPlace=deform] [donYAlign=0] [donInline=false] [segSize=100%] [segSizeTol=5%] [segsCnt=1] [segsGrp=0] [segsMaxMerge=1] [segsMrgAng=0] [segsMrgRollAng=0] [segsEdgeDelKind=keepFirstLeft]
0 !LDCAD PATH_SKIN [donCol=16] [donOri=1 0 0 0 1 0 0 0 1] [donPart=ldcRigid3mmHoseSeg.dat] [donYSize=400%] [donCen=absCen] [donCenYOfs=0] [donFinScale=fitDon2Seg] [donPlace=deform] [donYAlign=0] [donInline=false] [segSize=100%] [segSizeTol=5%] [segsCnt=0] [segsGrp=0] [segsMaxMerge=10] [segsMrgAng=0] [segsMrgRollAng=0] [segsEdgeDelKind=keepFirstLeft]
0 !LDCAD PATH_SKIN [donCol=16] [donOri=1 0 0 0 1 0 0 0 1] [donPart=ldcRigid3mmHoseCap.dat] [donYSize=200%] [donCen=absCen] [donCenYOfs=0] [donFinScale=fitDon2Seg] [donPlace=deform] [donYAlign=0] [donInline=false] [segSize=100%] [segSizeTol=5%] [segsCnt=1] [segsGrp=0] [segsMaxMerge=1] [segsMrgAng=0] [segsMrgRollAng=0] [segsEdgeDelKind=keepFirstLeft]

0 !LDCAD GENERATED [generator=LDCad 1.7 Alpha 2a]
N. W. Perry [Plastikean]
Part Reviewer
made the following comment.
2024-12-07 03:56:21
Looks like you've used the same workaround that I did, which is to apply a rotation to the part. That can work, but perhaps the rotation should be baked into the part…or at least a !HELP line added, perhaps?
But I also noticed from set photos, or e.g. page 25 of the BI, that the part does take on more of a sweeping shape at the bottom…of course, this is flexible fabric, so there will be endless variations.
Anyway, these are design considerations and necessarily subjective, but I thought it would be helpful to offer feedback as a user in the intended use case.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
made the following comment.
2024-12-07 08:03:10
I'm gonna add a !Help. Thanks for the heads-up.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
edited the part header.
2024-12-07 09:42:51
Header Edits

help:
0 !HELP
to
0 !HELP This cape has been modelled specifically for 10211 - Grand Emporium
0 !HELP Use the following code to position them properly:
0 !HELP 1 16 20 -120 80 1 0 0 0 1 0 0 0 1 87087.dat
0 !HELP 1 16 -80 -120 -20 0 0 -1 0 1 0 1 0 0 87087.dat
0 !HELP 1 16 20 -108 20 0 0.225 0.974 0 0.974 -0.225 1 0 0 50231c03.dat
0 !HELP 1 16 -20 -108 -20 -1 0 0 0 0.974 -0.225 0 -0.225 -0.974 50231c03.dat
0 !HELP For the rod a Rigid hose 3 mm LDCAD template with the following values has been used:
0 !HELP 0 !LDCAD PATH_POINT [type=bezier] [posOri=0 0 0 0 -1 0 0 0 1 -1 0 0] [prevCPDist=25] [nextCPDist=5] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0]
0 !HELP 0 !LDCAD PATH_POINT [type=bezier] [posOri=20 0 0 0 -1 0 0 0 1 -1 0 0] [prevCPDist=5] [nextCPDist=66] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0]
0 !HELP 0 !LDCAD PATH_POINT [type=bezier] [posOri=86 0 -66 -1 0 0 0 0 1 0 1 0] [prevCPDist=66] [nextCPDist=5] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0]
0 !HELP 0 !LDCAD PATH_POINT [type=bezier] [posOri=86 0 -86 -1 0 0 0 0 1 0 1 0] [prevCPDist=5] [nextCPDist=25] [cirR=25] [cirDir=xyCW] [prevYRoll=0] [nextYRoll=0]
keywords:
changing room, Grand Emporium, set 10211
to
Grand Emporium, changing room, set 10211

Comment:
Added Help
Creative Commons Attribution License information

This part is copyright © Willy Tschager
Licensed under CC BY 4.0
