File Detail parts/271.dat

Download Download zip file

Official File parts/271.dat

View unofficial version of part

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

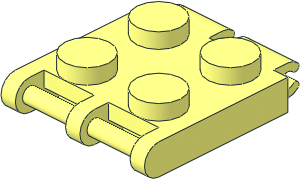

0 Plate  2 x  2 with Hinges
0 Name: 271.dat
0 Author: Niels Karsdorp [nielsk]
0 !LDRAW_ORG Part UPDATE 2010-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CW

0 !KEYWORDS bracelet, BrickLink 312c, chain, jewlery, Rebrickable 312c, Scala
0 !KEYWORDS wristband, wristlet

0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02

Show contents

0 // Left side

1 16 -20 4 -20 0 4 0 4 0 0 0 0 -4 2-4edge.dat
1 16 -20 4 -20 0 4 0 4 0 0 0 0 -4 2-4disc.dat
1 16 -20 4 -2 0 1 0 0 0 4 18 0 0 rect2p.dat
0 --Left inner side
1 16 -16 4 -20 0 4 0 4 0 0 0 0 -4 2-4edge.dat
1 16 -16 4 -20 0 -4 0 -4 0 0 0 0 -4 2-4disc.dat
4 16 -16 0 -20 -16 0 -16 -16 4 -16 -16 8 -20
4 16 -16 4 -16 -16 4 -12 -16 8 -12 -16 8 -20
0 --Center left side
1 16 -2 4 -20 0 4 0 4 0 0 0 0 -4 2-4edge.dat
1 16 -2 4 -20 0 4 0 4 0 0 0 0 -4 2-4disc.dat
4 16 -2 8 -20 -2 4 -16 -2 0 -16 -2 0 -20
4 16 -2 8 -20 -2 8 -12 -2 4 -12 -2 4 -16
0 --Center right side
1 16 2 4 -20 0 4 0 4 0 0 0 0 -4 2-4edge.dat
1 16 2 4 -20 0 -4 0 -4 0 0 0 0 -4 2-4disc.dat
4 16 2 0 -20 2 0 -16 2 4 -16 2 8 -20
4 16 2 4 -16 2 4 -12 2 8 -12 2 8 -20
0 --Right inner side
1 16 16 4 -20 0 4 0 4 0 0 0 0 -4 2-4edge.dat
1 16 16 4 -20 0 4 0 4 0 0 0 0 -4 2-4disc.dat
4 16 16 8 -20 16 4 -16 16 0 -16 16 0 -20
4 16 16 8 -20 16 8 -12 16 4 -12 16 4 -16
0 --Right side
1 16 20 4 -20 0 4 0 4 0 0 0 0 -4 2-4edge.dat
1 16 20 4 -20 0 -4 0 -4 0 0 0 0 -4 2-4disc.dat
1 16 20 4 -2 0 -1 0 0 0 4 18 0 0 rect2p.dat
0 --Top side
4 16 -20 0 -16 -20 0 16 20 0 16 20 0 -16
1 16 -18 0 -18 2 0 0 0 1 0 0 0 2 rect1.dat
1 16 0 0 -18 0 0 2 0 1 0 2 0 0 rect2p.dat
1 16 18 0 -18 -2 0 0 0 1 0 0 0 2 rect1.dat
0 --Front round sides
1 16 -20 4 -20 0 4 0 4 0 0 0 0 -4 2-4cyli.dat
1 16 -2 4 -20 0 4 0 4 0 0 0 0 -4 2-4cyli.dat
1 16 16 4 -20 0 4 0 4 0 0 0 0 -4 2-4cyli.dat
0 --Front edge sides
1 16 -9 2 -16 7 0 0 0 0 2 0 1 0 rect.dat
1 16 -9 4 -14 0 0 7 0 -1 0 2 0 0 rect2p.dat
1 16 -9 6 -12 7 0 0 0 0 2 0 1 0 rect.dat
1 16 9 2 -16 7 0 0 0 0 2 0 1 0 rect.dat
1 16 9 4 -14 0 0 7 0 -1 0 2 0 0 rect2p.dat
1 16 9 6 -12 7 0 0 0 0 2 0 1 0 rect.dat
0 --Bottom sides
4 16 -20 8 -12 20 8 -12 20 8 16 -20 8 16
1 16 -18 8 -16 2 0 0 0 -1 0 0 0 4 rect1.dat
1 16 0 8 -16 0 0 2 0 -1 0 4 0 0 rect2p.dat
1 16 18 8 -16 -2 0 0 0 -1 0 0 0 4 rect1.dat
0 --Front bars
1 16 -16 4 -20 0 2 0 2 0 0 0 0 -2 4-4edge.dat
1 16 -2 4 -20 0 2 0 2 0 0 0 0 -2 4-4edge.dat
1 16 2 4 -20 0 2 0 2 0 0 0 0 -2 4-4edge.dat
1 16 16 4 -20 0 2 0 2 0 0 0 0 -2 4-4edge.dat
1 16 -16 4 -20 0 14 0 2 0 0 0 0 -2 4-4cyli.dat
1 16 2 4 -20 0 14 0 2 0 0 0 0 -2 4-4cyli.dat
0 --Rear sides
1 16 18 4 16 2 0 0 0 0 4 0 -1 0 rect.dat
1 16 0 4 16 2 0 0 0 0 4 0 -1 0 rect.dat
1 16 -18 4 16 2 0 0 0 0 4 0 -1 0 rect.dat
0 --Rear side outer right
1 16 16 4 20 0 2 0 1.414 0 1.414 1.414 0 -1.414 3-4edge.dat
1 16 16 4 20 0 4 0 2.828 0 2.828 2.828 0 -2.828 1-8edge.dat
1 16 16 4 20 0 4 0 -4 0 0 0 0 4 1-8edge.dat
1 16 16 1.88 22.12 0 1 0 -0.707 0 0.707 0.707 0 0.707 2-4edge.dat
1 16 16 6.12 22.12 0 1 0 -0.707 0 -0.707 -0.707 0 0.707 2-4edge.dat
1 16 16 1.88 22.12 0 -1 0 -0.707 0 0.707 0.707 0 0.707 2-4disc.dat
1 16 16 6.12 22.12 0 -1 0 -0.707 0 -0.707 -0.707 0 0.707 2-4disc.dat
1 16 16 4 20 0 -2 0 1.414 0 1.414 1.414 0 -1.414 1-4ring1.dat
1 16 16 4 20 0 -2 0 1.414 0 -1.414 -1.414 0 -1.414 1-4ring1.dat
1 16 16 4 20 0 -2 0 -1.414 0 -1.414 -1.414 0 1.414 1-4ring1.dat
1 16 16 4 20 0 -4 0 4 0 0 0 0 -4 2-4ndis.dat
0 --Rear side inner right
1 16 2 4 20 0 2 0 1.414 0 1.414 1.414 0 -1.414 3-4edge.dat
1 16 2 4 20 0 4 0 2.828 0 2.828 2.828 0 -2.828 1-8edge.dat
1 16 2 4 20 0 4 0 -4 0 0 0 0 4 1-8edge.dat
1 16 2 1.88 22.12 0 1 0 -0.707 0 0.707 0.707 0 0.707 2-4edge.dat
1 16 2 6.12 22.12 0 1 0 -0.707 0 -0.707 -0.707 0 0.707 2-4edge.dat
1 16 2 1.88 22.12 0 1 0 -0.707 0 0.707 0.707 0 0.707 2-4disc.dat
1 16 2 6.12 22.12 0 1 0 -0.707 0 -0.707 -0.707 0 0.707 2-4disc.dat
1 16 2 4 20 0 2 0 1.414 0 1.414 1.414 0 -1.414 1-4ring1.dat
1 16 2 4 20 0 2 0 1.414 0 -1.414 -1.414 0 -1.414 1-4ring1.dat
1 16 2 4 20 0 2 0 -1.414 0 -1.414 -1.414 0 1.414 1-4ring1.dat
1 16 2 4 20 0 4 0 4 0 0 0 0 -4 2-4ndis.dat
0 --Rear side inner left
1 16 -2 4 20 0 2 0 1.414 0 1.414 1.414 0 -1.414 3-4edge.dat
1 16 -2 4 20 0 4 0 2.828 0 2.828 2.828 0 -2.828 1-8edge.dat
1 16 -2 4 20 0 4 0 -4 0 0 0 0 4 1-8edge.dat
1 16 -2 1.88 22.12 0 1 0 -0.707 0 0.707 0.707 0 0.707 2-4edge.dat
1 16 -2 6.12 22.12 0 1 0 -0.707 0 -0.707 -0.707 0 0.707 2-4edge.dat
1 16 -2 1.88 22.12 0 -1 0 -0.707 0 0.707 0.707 0 0.707 2-4disc.dat
1 16 -2 6.12 22.12 0 -1 0 -0.707 0 -0.707 -0.707 0 0.707 2-4disc.dat
1 16 -2 4 20 0 -2 0 1.414 0 1.414 1.414 0 -1.414 1-4ring1.dat
1 16 -2 4 20 0 -2 0 1.414 0 -1.414 -1.414 0 -1.414 1-4ring1.dat
1 16 -2 4 20 0 -2 0 -1.414 0 -1.414 -1.414 0 1.414 1-4ring1.dat
1 16 -2 4 20 0 -4 0 4 0 0 0 0 -4 2-4ndis.dat
0 --Rear side outer left
1 16 -16 4 20 0 2 0 1.414 0 1.414 1.414 0 -1.414 3-4edge.dat
1 16 -16 4 20 0 4 0 2.828 0 2.828 2.828 0 -2.828 1-8edge.dat
1 16 -16 4 20 0 4 0 -4 0 0 0 0 4 1-8edge.dat
1 16 -16 1.88 22.12 0 1 0 -0.707 0 0.707 0.707 0 0.707 2-4edge.dat
1 16 -16 6.12 22.12 0 1 0 -0.707 0 -0.707 -0.707 0 0.707 2-4edge.dat
1 16 -16 1.88 22.12 0 1 0 -0.707 0 0.707 0.707 0 0.707 2-4disc.dat
1 16 -16 6.12 22.12 0 1 0 -0.707 0 -0.707 -0.707 0 0.707 2-4disc.dat
1 16 -16 4 20 0 2 0 1.414 0 1.414 1.414 0 -1.414 1-4ring1.dat
1 16 -16 4 20 0 2 0 1.414 0 -1.414 -1.414 0 -1.414 1-4ring1.dat
1 16 -16 4 20 0 2 0 -1.414 0 -1.414 -1.414 0 1.414 1-4ring1.dat
1 16 -16 4 20 0 4 0 4 0 0 0 0 -4 2-4ndis.dat
0 Rear sides
1 16 9 0 18 0 0 7 0 1 0 2 0 0 rect2p.dat
1 16 -9 0 18 0 0 7 0 1 0 2 0 0 rect2p.dat
1 16 9 8 18 0 0 7 0 -1 0 2 0 0 rect2p.dat
1 16 -9 8 18 0 0 7 0 -1 0 2 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 -16 4 20 0 14 0 1.414 0 1.414 1.414 0 -1.414 3-4cyli.dat
1 16 -16 4 20 0 14 0 2.828 0 2.828 2.828 0 -2.828 1-8cyli.dat
1 16 -16 4 20 0 14 0 -4 0 0 0 0 4 1-8cyli.dat
1 16 -16 1.88 22.12 0 14 0 -0.707 0 0.707 0.707 0 0.707 2-4cyli.dat
1 16 -16 6.12 22.12 0 14 0 -0.707 0 -0.707 -0.707 0 0.707 2-4cyli.dat
0 BFC INVERTNEXT
1 16 2 4 20 0 14 0 1.414 0 1.414 1.414 0 -1.414 3-4cyli.dat
1 16 2 4 20 0 14 0 2.828 0 2.828 2.828 0 -2.828 1-8cyli.dat
1 16 2 4 20 0 14 0 -4 0 0 0 0 4 1-8cyli.dat
1 16 2 1.88 22.12 0 14 0 -0.707 0 0.707 0.707 0 0.707 2-4cyli.dat
1 16 2 6.12 22.12 0 14 0 -0.707 0 -0.707 -0.707 0 0.707 2-4cyli.dat
0 Studs
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 stug2.dat
0

Status:

Official

This part has the following errors

All parts must be BFC CERTIFY CCW
Line 19, invalid META command or comment without //
Line 24, invalid META command or comment without //
Line 29, invalid META command or comment without //
Line 34, invalid META command or comment without //
Line 39, invalid META command or comment without //
Line 43, invalid META command or comment without //
Line 48, invalid META command or comment without //
Line 52, invalid META command or comment without //
Line 59, invalid META command or comment without //
Line 64, invalid META command or comment without //
Line 71, invalid META command or comment without //
Line 75, invalid META command or comment without //
Line 87, invalid META command or comment without //
Line 99, invalid META command or comment without //
Line 111, invalid META command or comment without //
Line 123, invalid META command or comment without //
Line 140, invalid META command or comment without //
