Official File parts/2438p01.dat
Part Attributes:
Base Part: 2438.dat
File Header:

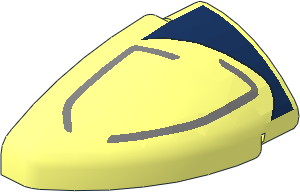

0 Technic Panel 5 x 3 x 2 Corner Left with Ford GT Headlight Pattern
0 Name: 2438p01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 2438pb001, Ford GT, Rebrickable 2438pr0001, Set 42154
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
