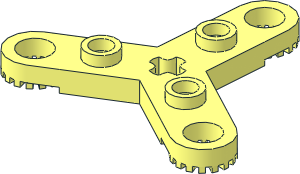

0 Technic Rotor  3 Blade
0 Name: 2712.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2007-05-18 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2010-05-21 [tchang] Rebuild, Add BFC
0 !HISTORY 2010-12-23 [Philo] Reoriented studs
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2022-01-06 [MagFors] Reshaped axlehole
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
