Official File parts/2723p01.dat
External site data provided by Rebrickable.com

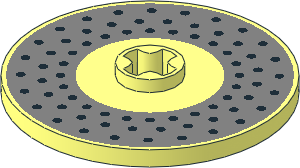

Technic Disc 3 x 3 with Axlehole and Metallic Silver Disc Brake Pattern
0 Technic Disc  3 x  3 with Axlehole and Metallic Silver Disc Brake Pattern
0 Name: 2723p01.dat
0 Author: Ulrich Röder [UR]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 2723pb063, Car, Caterham, Cuusoo, Ideas
0 !KEYWORDS Rebrickable 2723pr0002, Set 21307

0 !CMDLINE -c0

0 !HISTORY 2019-12-27 [PTadmin] Official Update 2019-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2723s01.dat
1 16 0 3 0 7 0 0 0 1 0 0 0 7 4-4ring1.dat
1 16 0 3 0 1 0 0 0 1 0 0 0 1 4-4ring14.dat
1 16 0 3 0 15 0 0 0 1 0 0 0 15 48\4-4aring.dat
1 16 0 3 0 1 0 0 0 1 0 0 0 1 48\4-4ring29.dat

0 // Disc
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2723p01s01.dat
1 16 0 0 0 .965926 0 .258819 0 1 0 -.258819 0 .965926 s\2723p01s01.dat
1 16 0 0 0 .866025 0 .5 0 1 0 -.5 0 .866025 s\2723p01s01.dat
1 16 0 0 0 .707107 0 .707107 0 1 0 -.707107 0 .707107 s\2723p01s01.dat
1 16 0 0 0 .5 0 .866025 0 1 0 -.866025 0 .5 s\2723p01s01.dat
1 16 0 0 0 .258819 0 .965926 0 1 0 -.965926 0 .258819 s\2723p01s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\2723p01s01.dat
1 16 0 0 0 -.258819 0 .965926 0 1 0 -.965926 0 -.258819 s\2723p01s01.dat
1 16 0 0 0 -.5 0 .866025 0 1 0 -.866025 0 -.5 s\2723p01s01.dat
1 16 0 0 0 -.707107 0 .707107 0 1 0 -.707107 0 -.707107 s\2723p01s01.dat
1 16 0 0 0 -.866025 0 .5 0 1 0 -.5 0 -.866025 s\2723p01s01.dat
1 16 0 0 0 -.965926 0 .258819 0 1 0 -.258819 0 -.965926 s\2723p01s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\2723p01s01.dat
1 16 0 0 0 -.965926 0 -.258819 0 1 0 .258819 0 -.965926 s\2723p01s01.dat
1 16 0 0 0 -.866025 0 -.5 0 1 0 .5 0 -.866025 s\2723p01s01.dat
1 16 0 0 0 -.707107 0 -.707107 0 1 0 .707107 0 -.707107 s\2723p01s01.dat
1 16 0 0 0 -.5 0 -.866025 0 1 0 .866025 0 -.5 s\2723p01s01.dat
1 16 0 0 0 -.258819 0 -.965926 0 1 0 .965926 0 -.258819 s\2723p01s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\2723p01s01.dat
1 16 0 0 0 .258819 0 -.965926 0 1 0 .965926 0 .258819 s\2723p01s01.dat
1 16 0 0 0 .5 0 -.866025 0 1 0 .866025 0 .5 s\2723p01s01.dat
1 16 0 0 0 .707107 0 -.707107 0 1 0 .707107 0 .707107 s\2723p01s01.dat
1 16 0 0 0 .866025 0 -.5 0 1 0 .5 0 .866025 s\2723p01s01.dat
1 16 0 0 0 .965926 0 -.258819 0 1 0 .258819 0 .965926 s\2723p01s01.dat

Status

Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 26: 1 16 0 0 0 .965926 0 .258819 0 1 0 -.258819 0 .965926 s\2723p01s01.dat
    Line 27: 1 16 0 0 0 .866025 0 .5 0 1 0 -.5 0 .866025 s\2723p01s01.dat
    Line 28: 1 16 0 0 0 .707107 0 .707107 0 1 0 -.707107 0 .707107 s\2723p01s01.dat
    Line 29: 1 16 0 0 0 .5 0 .866025 0 1 0 -.866025 0 .5 s\2723p01s01.dat
    Line 30: 1 16 0 0 0 .258819 0 .965926 0 1 0 -.965926 0 .258819 s\2723p01s01.dat
    Line 32: 1 16 0 0 0 -.258819 0 .965926 0 1 0 -.965926 0 -.258819 s\2723p01s01.dat
    Line 33: 1 16 0 0 0 -.5 0 .866025 0 1 0 -.866025 0 -.5 s\2723p01s01.dat
    Line 34: 1 16 0 0 0 -.707107 0 .707107 0 1 0 -.707107 0 -.707107 s\2723p01s01.dat
    Line 35: 1 16 0 0 0 -.866025 0 .5 0 1 0 -.5 0 -.866025 s\2723p01s01.dat
    Line 36: 1 16 0 0 0 -.965926 0 .258819 0 1 0 -.258819 0 -.965926 s\2723p01s01.dat
    Line 38: 1 16 0 0 0 -.965926 0 -.258819 0 1 0 .258819 0 -.965926 s\2723p01s01.dat
    Line 39: 1 16 0 0 0 -.866025 0 -.5 0 1 0 .5 0 -.866025 s\2723p01s01.dat
    Line 40: 1 16 0 0 0 -.707107 0 -.707107 0 1 0 .707107 0 -.707107 s\2723p01s01.dat
    Line 41: 1 16 0 0 0 -.5 0 -.866025 0 1 0 .866025 0 -.5 s\2723p01s01.dat
    Line 42: 1 16 0 0 0 -.258819 0 -.965926 0 1 0 .965926 0 -.258819 s\2723p01s01.dat
    Line 44: 1 16 0 0 0 .258819 0 -.965926 0 1 0 .965926 0 .258819 s\2723p01s01.dat
    Line 45: 1 16 0 0 0 .5 0 -.866025 0 1 0 .866025 0 .5 s\2723p01s01.dat
    Line 46: 1 16 0 0 0 .707107 0 -.707107 0 1 0 .707107 0 .707107 s\2723p01s01.dat
    Line 47: 1 16 0 0 0 .866025 0 -.5 0 1 0 .5 0 .866025 s\2723p01s01.dat
    Line 48: 1 16 0 0 0 .965926 0 -.258819 0 1 0 .258819 0 .965926 s\2723p01s01.dat
