Official File parts/s/3538s01.dat

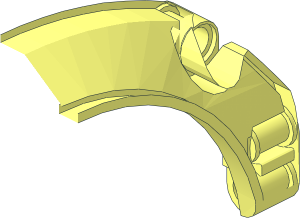

0 ~Technic Panel 11 x 2 x 5 Mudguard Arched with Rounded Top #43 without Front Half
0 Name: s\3538s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05Show file code:
1 16 0 -20 100 0 0 1 1 0 0 0 -1 0 connhol3.dat
1 16 0 0 100 0 0 1 1 0 0 0 -1 0 connhol3.dat
1 16 0 -10 110 -1 0 0 0 0 1 0 -16 0 npeghol2.dat
1 16 0 0 110 -9 0 0 0 0 9 0 -18 0 1-4cyli.dat
1 16 0 -20 110 -9 0 0 0 0 -9 0 -18 0 1-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -20 92 0 0 7.5 7.5 0 0 0 -2 0 7-16cylo.dat
1 16 0 -20 92 -3 0 0 0 0 -3 0 1 0 1-4ring2.dat
1 16 0 -20 92 -6 0 0 0 0 6 0 1 0 1-4ndis.dat
1 16 0 -20 92 0 0 1.5 1.5 0 0 0 1 0 7-16ring4.dat
1 16 0 -20 92 0 0 6 -6 0 0 0 1 0 1-16tang.dat
1 16 -4.5 -12.5 91 0 0 -4.5 0 1 0 -1 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 0 0 92 0 0 7.5 -7.5 0 0 0 -1.6 0 2-4cylo.dat
1 16 0 0 92 -3 0 0 0 0 3 0 1 0 1-4ring2.dat
1 16 0 0 92 -6 0 0 0 0 -6 0 1 0 1-4ndis.dat
1 16 0 0 92 0 0 1.5 -1.5 0 0 0 1 0 2-4ring4.dat
1 16 -4.5 -7.8 91 0 0 -4.5 0 -1 0 1 0 0 rect.dat
1 16 0 -20 110 -9 0 0 0 0 -9 0 -1 0 2-4edge.dat
1 16 0 0 110 -9 0 0 0 0 9 0 -1 0 2-4edge.dat
1 16 0 0 110 9 0 0 0 0 9 0 -18 0 1-4cyli.dat
1 16 0 -20 92 -9 0 0 0 0 -9 0 -1 0 1-4edge.dat
1 16 0 -20 110 9 0 0 0 0 -9 0 -1 0 1-4cyli.dat
1 16 0 0 90 9 0 0 0 0 9 0 2 0 1-4cyli.dat
1 16 0 0 90 0 0 9 9 0 0 0 -1.76339 0 1-4cyls.dat
1 16 0 0 88.2366 0 0 9 9 0 0 1.76339 -1 0 1-4edge.dat
1 16 0 0 88.2366 0 0 9 9 0 0 1.76339 1 0 1-4chrd.dat
1 16 0 0 92 -9 0 0 0 0 9 0 -1 0 1-4edge.dat
2 24 0 9 92 0 7.5 92
2 24 0 9 92 0 9 90
2 24 0 7.5 92 0 7.5 90.4
4 16 0 7.5 92 0 9 92 0 9 90 0 7.5 90.4
0 BFC INVERTNEXT
1 16 0 22 0 0 9.3 0 -91 0 0 0 0 91 48\5-24cylo.dat
1 16 9.3 22 0 0 -1 0 -3.79167 0 0 0 0 3.79167 48\5-24ring24.dat
1 16 9.3 22 0 0 -1 0 -94.79167 0 0 0 0 94.79167 48\5-24edge.dat
1 16 0 22 0 0 1 0 -3.64 0 0 0 0 3.64 48\3-16ring25.dat
1 16 0 22 0 0 1 0 -94.64 0 0 0 0 94.64 48\3-16edge.dat
2 24 0 -7.8 92 0 -7.5 92
2 24 0 -7.5 92 0 -7.5 90.4
4 16 0 -7.5 90.4 0 -7.8 90 0 -7.8 92 0 -7.5 92
1 16 0 0 90.4 0 0 7.5 -7.5 0 0 0 -1 0 2-4chrd.dat
2 24 0 7.5 90.4 0 -7.5 90.4
2 24 0 9 90 2.8703 6.9293 92
2 24 9 0 88.2366 9.3 -1.5508 87.8969
2 24 0 9 90 0 -1.5508 87.8969
4 16 0 9 90 9 0 88.2366 9.3 -1.5508 87.8969 0 -1.5508 87.8969
4 16 0 7.5 90.4 0 9 90 0 -1.5508 87.8969 0 -7.5 90.4
3 16 0 -7.8 90 0 -7.5 90.4 0 -1.5508 87.8969
1 16 -9 -10.15 91 0 1 0 0 0 -2.35 -1 0 0 rect1.dat
4 16 -6 -6 92 0 -6 92 0 -7.8 92 -9 -7.8 92
4 16 -6 -6 92 -9 -7.8 92 -9 0 92 -6 0 92
4 16 -9 -12.5 92 0 -12.5 92 0 -14 92 -6 -14 92
4 16 -9 -20 92 -9 -12.5 92 -6 -14 92 -6 -20 92
2 24 -9 -20 92 -9 -12.5 92
2 24 -9 0 92 -9 -7.8 92
1 16 -9 -10 101 0 1 0 0 0 10 9 0 0 rect1.dat
1 16 7.4245 -20 90 -3 0 0 0 0 7.5 0 -2 0 1-8cylo.dat
1 16 7.4245 -20 90 -3 0 0 0 0 7.5 0 -1 0 1-8chrd.dat
1 16 0 -20 90 7.5 0 0 0 0 -7.5 0 -1 0 1-8chrd.dat
1 16 7.4245 -20 90 -3 0 0 0 0 -7.5 0 -2 0 1-8cylo.dat
1 16 7.4245 -20 90 -3 0 0 0 0 -7.5 0 -1 0 1-8chrd.dat
1 16 0 -20 90 7.5 0 0 0 0 7.5 0 -1 0 1-8chrd.dat
1 16 7.4245 -20 88 -3 0 0 0 0 7.5 0 1 0 1-8chrd.dat
1 16 7.4245 -20 88 -3 0 0 0 0 -7.5 0 1 0 1-8chrd.dat
3 16 4.4245 -20 88 5.3032 -14.6968 88 5.3032 -25.3033 88
2 24 5.3032 -14.6968 88 5.3032 -25.3033 88
2 24 5.3032 -14.6968 88 5.3032 -14.6968 90
2 24 5.3032 -25.3033 88 5.3032 -25.3033 90
4 16 7.5 -20 90 5.3032 -14.6968 90 4.4245 -20 90 5.3032 -25.3033 90
1 16 0 22 0 0 1.6 0 -94.64 0 0 0 0 94.64 48\3-16cyli.dat
1 16 1.6 22 0 0 4 0 0 0 -94.64 -94.64 0 0 48\3-16cyls2.dat
2 24 0 -11.6094 88.4689 0 -14.2187 87.4379
2 24 0 -9 88.7 0 -11.6094 88.4689
2 24 0 -7.8 90 0 -9 90
2 24 5.3 -11.6094 88.4689 5.2956 -14.2187 87.4379
2 24 5.3 -9 88.7 5.3 -11.6094 88.4689
2 24 5.3032 -14.6968 90 5.3 -9 90
4 16 5.2956 -14.2187 87.4379 5.3032 -14.6968 88 5.3032 -14.6968 90 5.3 -11.6094 88.4689
4 16 5.3 -11.6094 88.4689 5.3032 -14.6968 90 5.3 -9 90 5.3 -9 88.7
1 16 2.65 -9 89.35 2.65 0 0 0 1 0 0 0 0.65 rect.dat
4 16 0 -9 90 -9 -12.5 90 -9 -7.8 90 0 -7.8 90
4 16 0 -9 88.7 0 -9 90 0 -7.8 90 0 -1.5508 87.8969
4 16 0 -9 88.7 0 -1.5508 87.8969 0 -12.8257 84.0749 0 -11.6094 88.4689
3 16 0 -12.8257 84.0749 0 -14.2187 87.4379 0 -11.6094 88.4689
4 16 0 -11.6094 88.4689 5.3 -11.6094 88.4689 5.3 -9 88.7 0 -9 88.7
4 16 5.3 -11.6094 88.4689 0 -11.6094 88.4689 0 -14.2187 87.4379 1.6 -14.2187 87.4379
3 16 5.3 -11.6094 88.4689 1.6 -14.2187 87.4379 5.2956 -14.2187 87.4379
5 24 1.6 -14.2187 87.4379 5.2956 -14.2187 87.4379 5.3 -11.6094 88.4689 5.064 -25.32 81.9582
5 24 0 -14.2187 87.4379 1.6 -14.2187 87.4379 0 -11.6094 88.4689 0 -25.32 81.9582
5 24 0 -11.6094 88.4689 5.3 -11.6094 88.4689 0 -14.2187 87.4379 0 -9 88.7
1 16 0 -20 90 0 0 7.5 7.5 0 0 0 1 0 1-8tndis.dat
3 16 5.3 -9 90 5.3033 -12.5 90 0 -12.5 90
4 16 0 -12.5 90 -9 -12.5 90 0 -9 90 5.3 -9 90
3 16 5.064 -25.32 81.9582 5.3032 -14.6968 88 5.2956 -14.2187 87.4379
3 16 5.3032 -25.3033 88 5.3032 -14.6968 88 5.064 -25.32 81.9582
2 24 9 -20 110 9 0 110
1 16 1.6 22 0 0 1 4 -94.64 0 0 0 0 94.64 48\3-16edge.dat
1 16 -20 -60 80 0 -1 0 1 0 0 0 0 -1 connhole.dat
1 16 -14 -60 80 0 4 0 12.93431 0 5.35757 5.35757 0 -12.93431 7-16cyli.dat
1 16 -10 -60 80 0 12 0 12.93431 0 5.35757 5.35757 0 -12.93431 1-8cyli.dat
1 16 -10 -60 80 0 12 0 -12.93431 0 -5.35757 5.35757 0 -12.93431 1-4cyls2.dat
1 16 -17 -60 80 0 -12 0 9 0 0 0 0 9 7-16cyli.dat
1 16 -17 -60 80 0 -12 0 9 0 0 0 0 -9 7-16cyli.dat
1 16 -30 -60 80 0 1 0 9 0 0 0 0 -9 4-4cyli.dat
1 16 -30 -60 80 0 1 0 9 0 0 0 0 -9 4-4edge.dat
1 16 -29 -60 80 0 1 0 -8.31492 0 -3.44415 3.44415 0 -8.31492 1-8edge.dat
2 24 -29 -73.4945 72.0606 -29 -77.3097 62.0933
2 24 -29 -68.3151 83.4443 -29 -73.4945 72.0606
3 16 -29 -73.4945 72.0606 -29 -68.3151 83.4443 -29 -68.3151 76.5557
1 16 -23 -85.7047 4.8826 -6 0 0 0 -1 0.1953 0 0 4.8826 rect1.dat
4 16 -17 -85.5094 9.7652 -29 -85.5094 9.7652 -29 -84.3377 20.9447 -17 -84.3377 20.9448
4 16 -17 -84.3377 20.9448 -29 -84.3377 20.9447 -29 -82.8297 30.7773 -17 -82.8297 30.7773
4 16 -17 -82.8297 30.7773 -29 -82.8297 30.7773 -29 -80.614 40.8792 -17 -80.6141 40.8792
4 16 -17 -80.6141 40.8792 -29 -80.614 40.8792 -29 -78.0809 50.8465 -17 -78.0809 50.8465
4 16 -29 -78.0809 50.8465 -29 -74.2097 62.0933 -17 -74.2097 62.0933 -17 -78.0809 50.8465
2 24 -29 -68.3151 76.5557 -17 -68.3151 76.5557
2 24 -29 -74.2097 62.0933 -29 -68.3151 76.5557
4 16 -29 -74.2097 62.0933 -29 -68.3151 76.5557 -17 -68.3151 76.5557 -17 -74.2097 62.0933
1 16 -29 -87.2547 4.8826 0 1 0 -1.55 0 0.1953 0 0 4.8826 rect1.dat
1 16 -29 -86.47355 15.35495 0 1 0 -0.58585 0 -1.55 -5.58975 0 0 rect2p.dat
1 16 -29 -85.1337 25.861 0 1 0 -0.754 0 -1.55 -4.9163 0 0 rect2p.dat
1 16 -29 -83.27185 35.82825 0 1 0 -1.10785 0 -1.55 -5.05095 0 0 rect2p.dat
1 16 -29 -80.89745 45.86285 0 1 0 -1.26655 0 -1.55 -4.98365 0 0 rect2p.dat
1 16 -29 -77.6953 56.4699 0 1 0 1.9356 0 1.55 5.6234 0 0 rect2p.dat
4 16 -29 -74.2097 62.0933 -29 -77.3097 62.0933 -29 -73.4945 72.0606 -29 -68.3151 76.5557
5 24 0.6791 -78.1314 13.833 9.3 -72.7917 0 0.8942 -79 0 9.3 -71.9765 12.3703
5 24 -14.5809 -87.8074 9.707 -7.5439 -84.2 0 -14.6 -88.2044 0 -7.5675 -83.2884 15.66
2 24 9 -20 109 8.982 -25.084 109
2 24 8.982 -25.084 109 7.854 -30.867 109
2 24 7.854 -30.867 109 5.565 -36 109
2 24 5.565 -36 109 4.342 -42.1747 104.521
2 24 1.654 -49.5856 99.1452 -1.493 -55.3 95
2 24 4.342 -42.1747 104.521 1.654 -49.5856 99.1452
2 24 -1.493 -55.3 95 0.473 -55.3 91
2 24 -2.8347 -52.4363 93.1845 -0.285 -46.7122 97.2762
2 24 -0.285 -46.7122 97.2762 1.705 -41.2594 101.2316
2 24 1.705 -41.2594 101.2316 3.295 -34.6859 106
2 24 -9.7165 -52.3529 93.1845 -2.8347 -52.4363 93.1845
2 24 0.473 -55.3 91 -9.929 -55.3 91
2 24 -5.089 -39.7329 102.339 -2.3289 -34.6859 106
2 24 -8.859 -47.0716 97.0155 -5.089 -39.7329 102.339
2 24 -9.7165 -52.3529 93.1845 -8.859 -47.0716 97.0155
2 24 -9.929 -55.3 91 -9.641 -55.3 95
2 24 -8.908 -48.7167 99.7755 -5.759 -41.5625 104.965
2 24 -9.641 -55.3 95 -8.908 -48.7167 99.7755
2 24 -5.759 -41.5625 104.965 -2.867 -36 109
2 24 -2.867 -36 109 0 -29 109
2 24 0 -29 109 -0.005 -29 106
2 24 -2.867 -36 109 5.565 -36 109
2 24 -9.641 -55.3 95 -1.493 -55.3 95
1 16 1.644525 -31.84295 106 -1.161 0 -2.811 -2.84295 0 0 0 1 0 rect.dat
4 16 3.295 -34.6859 106 1.705 -41.2594 101.2316 -5.089 -39.7329 102.339 -2.3289 -34.6859 106
4 16 1.705 -41.2594 101.2316 -0.285 -46.7122 97.2762 -8.859 -47.0716 97.0155 -5.089 -39.7329 102.339
4 16 -2.8347 -52.4363 93.1845 -9.7165 -52.3529 93.1845 -8.859 -47.0716 97.0155 -0.285 -46.7122 97.2762
3 16 -9.7165 -52.3529 93.1845 -9.929 -55.3 91 -9.641 -55.3 95
3 16 -8.908 -48.7167 99.7755 -8.859 -47.0716 97.0155 -9.7165 -52.3529 93.1845
3 16 -9.7165 -52.3529 93.1845 -9.641 -55.3 95 -8.908 -48.7167 99.7755
3 16 -8.908 -48.7167 99.7755 -5.759 -41.5625 104.965 -8.859 -47.0716 97.0155
3 16 -8.859 -47.0716 97.0155 -5.759 -41.5625 104.965 -5.089 -39.7329 102.339
3 16 -2.867 -36 109 -5.089 -39.7329 102.339 -5.759 -41.5625 104.965
3 16 -2.867 -36 109 -2.3289 -34.6859 106 -5.089 -39.7329 102.339
4 16 -0.005 -29 106 -2.3289 -34.6859 106 -2.867 -36 109 0 -29 109
4 16 5.565 -36 109 7.854 -30.867 109 6.3639 -26.3639 109 -2.867 -36 109
3 16 0 -29 109 -2.867 -36 109 6.3639 -26.3639 109
4 16 8.982 -25.084 109 9 -20 109 6.3639 -26.3639 109 7.854 -30.867 109
4 16 -5.759 -41.5625 104.965 4.342 -42.1747 104.521 5.565 -36 109 -2.867 -36 109
4 16 -8.908 -48.7167 99.7755 1.654 -49.5856 99.1452 4.342 -42.1747 104.521 -5.759 -41.5625 104.965
4 16 -9.641 -55.3 95 -1.493 -55.3 95 1.654 -49.5856 99.1452 -8.908 -48.7167 99.7755
4 16 0.473 -55.3 91 -1.493 -55.3 95 -9.641 -55.3 95 -9.929 -55.3 91
1 16 0 -20 109 9 0 0 0 0 -9 0 -1 0 1-4edge.dat
3 16 9 -20 110 9 -20 109 9 0 110
3 16 9 0 90 9 0 92 9.3 -1.5508 87.8969
3 16 9 0 88.2366 9 0 90 9.3 -1.5508 87.8969
3 16 9.3 -2.5321 91.5593 9.3 -1.5508 87.8969 9 0 92
2 24 9 0 92 9.3 -2.5321 91.5593
2 24 5.313 -50.761 83.827 6.5688 -50 80
2 24 6.5688 -50 80 6.8032 -50.761 76.173
2 24 5.4099 -56.173 70.761 6.537 -52.929 72.929
2 24 6.537 -52.929 72.929 6.8032 -50.761 76.173
2 24 3.1251 -60 70 -0.2327 -63.827 70.761
2 24 3.1251 -60 70 5.4099 -56.173 70.761
2 24 0.473 -55.3 91 5.313 -50.761 83.827
2 24 -10 -68.861 75.6073 -10 -67.071 72.929
2 24 -10 -67.071 72.929 -10 -63.827 70.761
2 24 -10 -63.827 70.761 -10 -60 70
2 24 -10 -60 70 -10 -56.173 70.761
2 24 -10 -56.173 70.761 -10 -52.929 72.929
2 24 -10 -50.761 76.173 -10 -52.929 72.929
2 24 -10 -50.761 76.173 -10 -50 80
2 24 -10 -50 80 -10 -50.761 83.827
2 24 -10 -50.761 83.827 -9.929 -55.3 91
4 16 -10 -50.761 83.827 -10 -50 80 6.5688 -50 80 5.313 -50.761 83.827
4 16 -10 -50 80 -10 -50.761 76.173 6.8032 -50.761 76.173 6.5688 -50 80
4 16 6.537 -52.929 72.929 6.8032 -50.761 76.173 -10 -50.761 76.173 -10 -52.929 72.929
4 16 -10 -52.929 72.929 -10 -56.173 70.761 5.4099 -56.173 70.761 6.537 -52.929 72.929
4 16 3.1251 -60 70 5.4099 -56.173 70.761 -10 -56.173 70.761 -10 -60 70
4 16 -10 -63.827 70.761 -10 -60 70 -10 -60 71 -10 -63.4443 71.6849
4 16 -10 -60 70 -10 -63.827 70.761 -0.2327 -63.827 70.761 3.1251 -60 70
4 16 -10 -66.3639 73.6361 -10 -67.071 72.929 -10 -63.827 70.761 -10 -63.4443 71.6849
1 16 -17 -60 80 0 3 0 9 0 0 0 0 -9 4-4cyli.dat
1 16 -14 -60 80 0 4 0 0 0 -9 9 0 0 5-16cyli.dat
2 24 -10 -68.861 75.6073 -5.1568 -67.071 72.929
2 24 -5.1568 -67.071 72.929 -0.2327 -63.827 70.761
2 24 -17 -68.3151 83.4443 -14 -69 80
2 24 -14 -69 80 -10 -68.3151 76.5557
2 24 -10 -68.861 75.6073 -10 -68.3151 76.5557
3 16 -10 -68.861 75.6073 -5.1568 -67.071 72.929 -10 -67.071 72.929
4 16 -10 -63.827 70.761 -10 -67.071 72.929 -5.1568 -67.071 72.929 -0.2327 -63.827 70.761
4 16 -10 -68.3151 76.5557 -10 -68.861 75.6073 -10 -67.071 72.929 -10 -66.3639 73.6361
4 16 1.6 -72.64 0 -17 -85.9 0 -17 -85.5094 9.7652 2.122 -71.8261 12.3505
3 16 -17 -84.3377 20.9448 2.122 -71.8261 12.3505 -17 -85.5094 9.7652
4 16 2.6352 -69.4128 24.4928 2.122 -71.8261 12.3505 -17 -84.3377 20.9448 -17 -82.8297 30.7773
3 16 2.6352 -69.4128 24.4928 -17 -82.8297 30.7773 -17 -80.6141 40.8792
3 16 2.6352 -69.4128 24.4928 -17 -80.6141 40.8792 -17 -78.0809 50.8465
3 16 -17 -78.0809 50.8465 3.1308 -65.4379 36.2187 2.6352 -69.4128 24.4928
3 16 3.1308 -65.4379 36.2187 -17 -78.0809 50.8465 -17 -74.2097 62.0933
1 16 -12 -54.75265 89 2 0 0 0 0 5.24735 0 -1 0 rect3.dat
4 16 5.313 -50.761 83.827 0.473 -55.3 91 -9.929 -55.3 91 -10 -50.761 83.827
1 16 -10 -60 80 0 1 0 0 0 -9 9 0 0 5-16edge.dat
1 16 -10 -60 80 0 -1 0 0 0 9 9 0 0 2-4ndis.dat
3 16 -10 -50 80 -10 -51 89 -10 -51 71
3 16 -10 -60 71 -10 -60 70 -10 -51 71
4 16 -10 -54.0341 89 -9.929 -55.3 91 -9.7165 -52.3529 93.1845 -10 -49.5053 89
2 24 -10 -49.5053 89 -9.7165 -52.3529 93.1845
3 16 5.617 -29 106 4.4284 -44.9199 66.9199 1.705 -41.2594 101.2316
3 16 4.4284 -44.9199 66.9199 2 -45.9996 79.9999 1.705 -41.2594 101.2316
3 16 1.705 -41.2594 101.2316 3.295 -34.6859 106 5.617 -29 106
2 24 5.617 -29 90 2.8703 -29 90
2 24 0 -29 92 2.8703 -29 92
4 16 5.617 -29 106 -0.005 -29 106 0 -29 92 2.8703 -29 92
4 16 5.617 -29 106 2.8703 -29 92 2.8703 -29 90 5.617 -29 90
2 24 5.617 -29 106 5.617 -29 90
2 24 5.617 -29 90 5.3032 -25.3033 90
4 16 5.617 -29 90 2.8703 -29 90 2.8703 -26.9293 90 5.3032 -25.3033 90
1 16 2.8703 -27.9646 91 0 1 0 -1.03538 0 0 0 0 1 rect.dat
4 16 2.8703 -29 92 0 -29 92 0 -26 92 1.1934 -26 92
4 16 2.8703 -29 92 1.1934 -26 92 2.2962 -25.5434 92 2.8703 -26.9293 92
3 16 5.617 -29 90 5.3032 -25.3033 90 5.3032 -25.3033 88
3 16 5.617 -29 90 5.3032 -25.3033 88 5.064 -25.32 81.9582
3 16 5.617 -29 90 5.064 -25.32 81.9582 4.7736 -35.6168 75.0874
3 16 5.617 -29 90 4.7736 -35.6168 75.0874 4.4284 -44.9199 66.9199
3 16 4.4284 -44.9199 66.9199 5.617 -29 106 5.617 -29 90
4 16 -14 -47.0657 85.3576 -14 -49.5053 89 -10 -49.5053 89 -10 -47.0657 85.3576
2 24 2 -47.0657 74.6424 1.0868 -50.1003 70.1002
2 24 -5.4076 -59.9999 65.9996 -10 -65.3575 67.0658
2 24 -10 -65.3575 67.0658 -14 -68.4595 69.1381
2 24 -1.5148 -54.6425 67.0658 -5.4076 -59.9999 65.9996
2 24 -1.5148 -54.6425 67.0658 1.0868 -50.1003 70.1002
2 24 2 -45.9996 79.9999 1.0012 -47.0657 85.3576
4 16 -2.8347 -52.4363 93.1845 1.0012 -47.0657 85.3576 -10 -47.0657 85.3576 -10 -49.5053 89
3 16 -10 -49.5053 89 -9.7165 -52.3529 93.1845 -2.8347 -52.4363 93.1845
2 24 1.0012 -47.0657 85.3576 -2.8347 -52.4363 93.1845
2 24 2 -47.0658 74.6425 2 -45.9996 79.9999
3 16 2 -47.0658 74.6425 2 -45.9996 79.9999 4.4284 -44.9199 66.9199
3 16 2 -45.9996 79.9999 -0.285 -46.7122 97.2762 1.705 -41.2594 101.2316
3 16 -0.285 -46.7122 97.2762 2 -45.9996 79.9999 1.0012 -47.0657 85.3576
3 16 -0.285 -46.7122 97.2762 1.0012 -47.0657 85.3576 -2.8347 -52.4363 93.1845
3 16 4.4284 -44.9199 66.9199 4.0352 -53.0874 57.6168 1.0868 -50.1003 70.1002
3 16 1.0868 -50.1003 70.1002 2 -47.0658 74.6425 4.4284 -44.9199 66.9199
3 16 4.0352 -53.0874 57.6168 -1.5148 -54.6425 67.0658 1.0868 -50.1003 70.1002
3 16 -1.5148 -54.6425 67.0658 4.0352 -53.0874 57.6168 -5.4076 -59.9999 65.9996
3 16 -5.4076 -59.9999 65.9996 4.0352 -53.0874 57.6168 3.6 -59.9582 47.32
3 16 -5.4076 -59.9999 65.9996 3.6 -59.9582 47.32 -10 -65.3575 67.0658
3 16 -14 -68.4595 69.1381 -10 -65.3576 67.0657 -17 -74.2097 62.0933
3 16 -10 -65.3576 67.0657 3.6 -59.9582 47.32 3.1308 -65.4379 36.2187
3 16 3.1308 -65.4379 36.2187 -17 -74.2097 62.0933 -10 -65.3576 67.0657
3 16 -17 -68.3151 76.5557 -14 -68.4595 69.1381 -17 -74.2097 62.0933
3 16 -17 -68.3151 76.5557 -14 -66.3639 73.6361 -14 -68.4595 69.1381
2 24 -14 -66.3639 73.6361 -17 -68.3151 76.5557
2 24 -14 -66.3639 73.6361 -14 -68.4595 69.1381
1 16 -14 -60 80 0 1 0 12.93431 0 5.35757 5.35757 0 -12.93431 7-16edge.dat
2 24 -14 -49.5053 89 -14 -47.0657 85.3576
1 16 -14 -60 80 0 1 0 12.93431 0 5.35757 5.35757 0 -12.93431 1-4chrd.dat
1 16 -14 -60 80 0 1 0 5.35757 0 -12.93431 -12.93431 0 -5.35757 3-16chrd.dat
4 16 -14 -69.8997 70.1002 -14 -66.3639 73.6361 -14 -53.6361 73.6361 -14 -54.6424 67.0657
4 16 -14 -53.6361 73.6361 -14 -51.6849 83.4443 -14 -47.0657 85.3576 -14 -54.6424 67.0657
4 16 -14 -51.6849 83.4443 -14 -60 89 -14 -49.5053 89 -14 -47.0657 85.3576
1 16 -14 -60 80 0 1 0 9 0 0 0 0 9 1-4edge.dat
1 16 -14 -60 80 0 1 0 9 0 0 0 0 -9 3-8edge.dat
5 24 1.705 -41.2594 101.2316 5.617 -29 106 3.295 -34.6859 106 4.4284 -44.9199 66.9199
5 24 -14.5809 -87.8074 9.707 -17 -88.6094 9.7652 -14.5469 -86.6264 20.8397 -17 -89 0
5 24 -9.641 -55.3 95 -9.7165 -52.3529 93.1845 -8.908 -48.7167 99.7755 -9.929 -55.3 91
5 24 9.3 -65.578 36.2768 2.9759 -71.3139 40.5662 4.3242 -65.466 53 9.3 -69.5593 24.5321
5 24 7.8066 -49.4171 74.9526 9.3 -53.2077 57.7092 9 -45.8816 67.8816 6.4664 -58.1334 64.5328
5 24 9 -26 83.136 8.6925 -39.4888 84.1004 9 -36.4448 76.1664 9 -28.5 91.796
5 24 -17 -80.6141 40.8792 -17 -78.0809 50.8465 2.6352 -69.4128 24.4928 -29 -80.614 40.8792
5 24 -17 -83.7141 40.8792 -17 -85.9297 30.7773 -14.0375 -85.0382 30.4149 -29 -83.7141 40.8792
5 24 -17 -73.4945 72.0606 -29 -73.4945 72.0606 -17 -68.3151 83.4443 -29 -77.3097 62.0933
5 24 1.654 -49.5856 99.1452 6.0275 -42.5328 95.208 5.313 -50.761 83.827 4.342 -42.1747 104.521
5 24 -17 -81.1809 50.8465 -17 -77.3097 62.0933 -12.5394 -80.0398 49.7872 -29 -77.3097 62.0933
5 24 -10 -50 80 6.5688 -50 80 5.313 -50.761 83.827 -10 -50.761 76.173
5 24 -14.0375 -85.0382 30.4149 -17 -85.9297 30.7773 -13.4013 -82.7166 40.2185 -17 -87.4377 20.9448
5 24 2 -45.9996 79.9999 1.705 -41.2594 101.2316 -0.285 -46.7122 97.2762 4.4284 -44.9199 66.9199
5 24 6.5688 -50 80 6.0275 -42.5328 95.208 5.313 -50.761 83.827 7.8066 -49.4171 74.9526
5 24 8.6925 -39.4888 84.1004 9 -28.5 91.796 8.1566 -31 103.92 9 -26 83.136
5 24 -17 -84.3377 20.9448 2.122 -71.8261 12.3505 -17 -85.5094 9.7652 2.6352 -69.4128 24.4928
5 24 -17 -74.2097 62.0933 3.1308 -65.4379 36.2187 -17 -78.0809 50.8465 -10 -65.3576 67.0657
5 24 5.617 -29 90 5.3032 -25.3033 88 5.064 -25.32 81.9582 5.3032 -25.3033 90
5 24 -14 -69 80 -10 -68.861 75.6073 -10 -68.3151 76.5557 -11.4418 -72.1438 70.5133
5 24 9 -26 83.136 9.3 -25.3958 82.0896 9 -36.4448 76.1664 9.3 -14.2768 87.578
5 24 -29 -78.0809 50.8465 -17 -78.0809 50.8465 -29 -74.2097 62.0933 -17 -80.6141 40.8792
5 24 -17 -68.3151 76.5557 -14 -68.4595 69.1381 -14 -66.3639 73.6361 -17 -74.2097 62.0933
5 24 3.1308 -65.4379 36.2187 -10 -65.3576 67.0657 3.6 -59.9582 47.32 -17 -74.2097 62.0933
5 24 1.6953 -75.5559 27.4328 -6.8105 -80.5854 31.056 0.6791 -78.1314 13.833 -5.0015 -76.1334 45.924
5 24 -6.8105 -80.5854 31.056 0.6791 -78.1314 13.833 1.6953 -75.5559 27.4328 -7.5675 -83.2884 15.66
5 24 -29 -81.1809 50.8465 -17 -81.1809 50.8465 -29 -83.7141 40.8792 -17 -77.3097 62.0933
5 24 5.2956 -14.2187 87.4379 5.3032 -14.6968 88 5.064 -25.32 81.9582 5.3032 -14.6968 90
5 24 9.3 -69.5593 24.5321 1.6953 -75.5559 27.4328 9.3 -71.9765 12.3703 2.9759 -71.3139 40.5662
5 24 -0.2327 -63.827 70.761 2.9759 -71.3139 40.5662 4.3242 -65.466 53 -2.7913 -69.796 60
5 24 6.0275 -42.5328 95.208 5.313 -50.761 83.827 1.654 -49.5856 99.1452 6.5688 -50 80
5 24 -17 -80.6141 40.8792 -29 -80.614 40.8792 -29 -78.0809 50.8465 -17 -82.8297 30.7773
5 24 -29 -82.8297 30.7773 -17 -82.8297 30.7773 -17 -84.3377 20.9448 -29 -80.614 40.8792
5 24 -5.1568 -67.071 72.929 -11.9977 -76.0655 60.7893 -2.7913 -69.796 60 -11.4418 -72.1438 70.5133
5 24 2.9759 -71.3139 40.5662 9.3 -69.5593 24.5321 9.3 -65.578 36.2768 1.6953 -75.5559 27.4328
5 24 -7.5675 -83.2884 15.66 -6.8105 -80.5854 31.056 0.6791 -78.1314 13.833 -14.5469 -86.6264 20.8397
5 24 -17 -78.0809 50.8465 2.6352 -69.4128 24.4928 -17 -80.6141 40.8792 3.1308 -65.4379 36.2187
5 24 9 -45.8816 67.8816 9 -36.4448 76.1664 9.3 -45.0272 67.0272 8.6925 -39.4888 84.1004
5 24 5.313 -50.761 83.827 1.654 -49.5856 99.1452 0.473 -55.3 91 6.0275 -42.5328 95.208
5 24 -13.4013 -82.7166 40.2185 -17 -83.7141 40.8792 -12.5394 -80.0398 49.7872 -17 -85.9297 30.7773
5 24 7.8066 -49.4171 74.9526 6.0275 -42.5328 95.208 6.5688 -50 80 8.6925 -39.4888 84.1004
5 24 -11.4418 -72.1438 70.5133 -10 -68.861 75.6073 -14 -69 80 -5.1568 -67.071 72.929
5 24 5.3032 -14.6968 88 5.064 -25.32 81.9582 5.3032 -25.3033 88 5.2956 -14.2187 87.4379
5 24 9 -14.7392 88.6944 9 -2.8448 92.7264 9.3 -14.2768 87.578 9 -20 109
5 24 -10 -65.3576 67.0657 -17 -74.2097 62.0933 3.1308 -65.4379 36.2187 -14 -68.4595 69.1381
5 24 8.6925 -39.4888 84.1004 7.8066 -49.4171 74.9526 9 -45.8816 67.8816 6.0275 -42.5328 95.208
5 24 9.3 -2.5321 91.5593 9.3 -1.5508 87.8969 9 0 92 9.3 -12.8257 84.0749
5 24 -9.7165 -52.3529 93.1845 -8.908 -48.7167 99.7755 -9.641 -55.3 95 -8.859 -47.0716 97.0155
5 24 4.4284 -44.9199 66.9199 1.705 -41.2594 101.2316 2 -45.9996 79.9999 5.617 -29 106
5 24 -8.859 -47.0716 97.0155 -5.759 -41.5625 104.965 -5.089 -39.7329 102.339 -8.908 -48.7167 99.7755
5 24 -6.8105 -80.5854 31.056 -13.4013 -82.7166 40.2185 -14.0375 -85.0382 30.4149 -5.0015 -76.1334 45.924
5 24 -2.8347 -52.4363 93.1845 -10 -49.5053 89 1.0012 -47.0657 85.3576 -9.7165 -52.3529 93.1845
5 24 -29 -84.3377 20.9447 -17 -84.3377 20.9448 -29 -82.8297 30.7773 -17 -85.5094 9.7652
5 24 4.3242 -65.466 53 -0.2327 -63.827 70.761 2.9759 -71.3139 40.5662 3.1251 -60 70
5 24 -17 -78.0809 50.8465 -17 -74.2097 62.0933 3.1308 -65.4379 36.2187 -29 -78.0809 50.8465
5 24 2.9759 -71.3139 40.5662 -5.0015 -76.1334 45.924 -2.7913 -69.796 60 1.6953 -75.5559 27.4328
5 24 -17 -81.1809 50.8465 -12.5394 -80.0398 49.7872 -11.9977 -76.0655 60.7893 -17 -83.7141 40.8792
5 24 9 -26 83.136 9 -14.7392 88.6944 9.3 -25.3958 82.0896 9 -20 109
5 24 9 -36.4448 76.1664 9 -26 83.136 9.3 -35.7092 75.2077 8.6925 -39.4888 84.1004
5 24 -17 -88.6094 9.7652 -17 -87.4377 20.9448 -29 -87.4377 20.9448 -14.5809 -87.8074 9.707
5 24 -13.4013 -82.7166 40.2185 -12.5394 -80.0398 49.7872 -17 -81.1809 50.8465 -6.8105 -80.5854 31.056
5 24 9 -36.4448 76.1664 9.3 -35.7092 75.2077 9 -45.8816 67.8816 9.3 -25.3958 82.0896
5 24 9.3 -53.2077 57.7092 9 -45.8816 67.8816 7.8066 -49.4171 74.9526 9.3 -45.0272 67.0272
5 24 -8.908 -48.7167 99.7755 -8.859 -47.0716 97.0155 -9.7165 -52.3529 93.1845 -5.759 -41.5625 104.965
5 24 -5.0015 -76.1334 45.924 -6.8105 -80.5854 31.056 1.6953 -75.5559 27.4328 -12.5394 -80.0398 49.7872
5 24 0.6791 -78.1314 13.833 0.8942 -79 0 9.3 -72.7917 0 -7.5439 -84.2 0
5 24 6.4664 -58.1334 64.5328 3.1251 -60 70 5.4099 -56.173 70.761 4.3242 -65.466 53
5 24 1.0012 -47.0657 85.3576 -0.285 -46.7122 97.2762 -2.8347 -52.4363 93.1845 2 -45.9996 79.9999
5 24 -5.4076 -59.9999 65.9996 3.6 -59.9582 47.32 -10 -65.3575 67.0658 4.0352 -53.0874 57.6168
5 24 5.064 -25.32 81.9582 5.3032 -25.3033 88 5.3032 -14.6968 88 5.617 -29 90
5 24 -17 -77.3097 62.0933 -17 -73.4945 72.0606 -29 -73.4945 72.0606 -11.9977 -76.0655 60.7893
5 24 -17 -83.7141 40.8792 -29 -83.7141 40.8792 -17 -81.1809 50.8465 -29 -85.9297 30.7773
5 24 8.982 -25.084 109 8.1566 -31 103.92 9 -28.5 91.796 7.854 -30.867 109
5 24 9 -28.5 91.796 9 -26 83.136 8.6925 -39.4888 84.1004 8.982 -25.084 109
5 24 1.6953 -75.5559 27.4328 2.9759 -71.3139 40.5662 -5.0015 -76.1334 45.924 9.3 -69.5593 24.5321
5 24 -2.867 -36 109 -5.089 -39.7329 102.339 -5.759 -41.5625 104.965 -2.3289 -34.6859 106
5 24 4.7736 -35.6168 75.0874 5.617 -29 90 4.4284 -44.9199 66.9199 5.064 -25.32 81.9582
5 24 8.1566 -31 103.92 6.0275 -42.5328 95.208 8.6925 -39.4888 84.1004 4.342 -42.1747 104.521
5 24 -29 -74.2097 62.0933 -17 -74.2097 62.0933 -29 -68.3151 76.5557 -17 -78.0809 50.8465
5 24 4.4284 -44.9199 66.9199 5.617 -29 90 4.7736 -35.6168 75.0874 5.617 -29 106
5 24 0.6791 -78.1314 13.833 -7.5439 -84.2 0 -7.5675 -83.2884 15.66 0.8942 -79 0
5 24 -12.5394 -80.0398 49.7872 -5.0015 -76.1334 45.924 -11.9977 -76.0655 60.7893 -13.4013 -82.7166 40.2185
5 24 9.3 -45.0272 67.0272 9 -45.8816 67.8816 9.3 -35.7092 75.2077 9.3 -53.2077 57.7092
5 24 8.6925 -39.4888 84.1004 9 -36.4448 76.1664 9 -45.8816 67.8816 9 -26 83.136
5 24 -6.8105 -80.5854 31.056 -14.0375 -85.0382 30.4149 -13.4013 -82.7166 40.2185 -14.5469 -86.6264 20.8397
5 24 3.1251 -60 70 -10 -60 70 -10 -63.827 70.761 5.4099 -56.173 70.761
5 24 9.3 -60.0896 47.3958 6.4664 -58.1334 64.5328 4.3242 -65.466 53 9.3 -53.2077 57.7092
5 24 4.0352 -53.0874 57.6168 -1.5148 -54.6425 67.0658 1.0868 -50.1003 70.1002 -5.4076 -59.9999 65.9996
5 24 -17 -85.5094 9.7652 -17 -84.3377 20.9448 2.122 -71.8261 12.3505 -29 -85.5094 9.7652
5 24 9.3 -14.2768 87.578 9 -14.7392 88.6944 9 -26 83.136 9.3 -2.5321 91.5593
5 24 9 0 92 9 -2.8448 92.7264 9.3 -2.5321 91.5593 9 0 110
5 24 -17 -68.3151 83.4443 -17 -73.4945 72.0606 -14 -69 80 -29 -68.3151 83.4443
5 24 -14.5469 -86.6264 20.8397 -7.5675 -83.2884 15.66 -6.8105 -80.5854 31.056 -14.5809 -87.8074 9.707
5 24 -10 -56.173 70.761 5.4099 -56.173 70.761 6.537 -52.929 72.929 -10 -60 70
5 24 -10 -52.929 72.929 6.537 -52.929 72.929 -10 -56.173 70.761 6.8032 -50.761 76.173
5 24 -5.759 -41.5625 104.965 -5.089 -39.7329 102.339 -8.859 -47.0716 97.0155 -2.867 -36 109
5 24 6.5688 -50 80 7.8066 -49.4171 74.9526 6.0275 -42.5328 95.208 6.8032 -50.761 76.173
5 24 6.4664 -58.1334 64.5328 4.3242 -65.466 53 9.3 -60.0896 47.3958 3.1251 -60 70
5 24 1.6953 -75.5559 27.4328 9.3 -71.9765 12.3703 0.6791 -78.1314 13.833 9.3 -69.5593 24.5321
5 24 6.537 -52.929 72.929 6.4664 -58.1334 64.5328 7.8066 -49.4171 74.9526 5.4099 -56.173 70.761
5 24 -17 -85.5094 9.7652 2.122 -71.8261 12.3505 -17 -84.3377 20.9448 1.6 -72.64 0
5 24 7.8066 -49.4171 74.9526 6.8032 -50.761 76.173 6.537 -52.929 72.929 6.5688 -50 80
5 24 -11.9977 -76.0655 60.7893 -12.5394 -80.0398 49.7872 -17 -77.3097 62.0933 -5.0015 -76.1334 45.924
5 24 -2.867 -36 109 -2.3289 -34.6859 106 -0.005 -29 106 -5.089 -39.7329 102.339
5 24 -11.4418 -72.1438 70.5133 -11.9977 -76.0655 60.7893 -17 -73.4945 72.0606 -5.1568 -67.071 72.929
5 24 4.4284 -44.9199 66.9199 2 -47.0658 74.6425 1.0868 -50.1003 70.1002 2 -45.9996 79.9999
5 24 -2.7913 -69.796 60 -0.2327 -63.827 70.761 -5.1568 -67.071 72.929 2.9759 -71.3139 40.5662
5 24 -17 -88.6094 9.7652 -17 -89 0 -14.6 -88.2044 0 -29 -88.6094 9.7652
5 24 7.8066 -49.4171 74.9526 6.4664 -58.1334 64.5328 9.3 -53.2077 57.7092 6.537 -52.929 72.929
5 24 -14.5469 -86.6264 20.8397 -17 -87.4377 20.9448 -17 -88.6094 9.7652 -14.0375 -85.0382 30.4149
5 24 5.3 -11.6094 88.4689 5.3032 -14.6968 90 5.3 -9 90 5.2956 -14.2187 87.4379
5 24 -17 -85.9 0 -17 -85.5094 9.7652 1.6 -72.64 0 -29 -85.9 0
5 24 3.1251 -60 70 4.3242 -65.466 53 -0.2327 -63.827 70.761 6.4664 -58.1334 64.5328
5 24 4.4284 -44.9199 66.9199 1.0868 -50.1003 70.1002 4.0352 -53.0874 57.6168 2 -47.0658 74.6425
5 24 5.617 -29 106 4.4284 -44.9199 66.9199 5.617 -29 90 1.705 -41.2594 101.2316
5 24 8.982 -25.084 109 9 -26 83.136 9 -20 109 9 -28.5 91.796
5 24 6.537 -52.929 72.929 7.8066 -49.4171 74.9526 6.4664 -58.1334 64.5328 6.8032 -50.761 76.173
5 24 -14.0375 -85.0382 30.4149 -14.5469 -86.6264 20.8397 -6.8105 -80.5854 31.056 -17 -85.9297 30.7773
5 24 -14.5469 -86.6264 20.8397 -14.5809 -87.8074 9.707 -17 -87.4377 20.9448 -7.5675 -83.2884 15.66
5 24 9.3 -71.9765 12.3703 0.6791 -78.1314 13.833 1.6953 -75.5559 27.4328 9.3 -72.7917 0
5 24 -5.0015 -76.1334 45.924 -2.7913 -69.796 60 -11.9977 -76.0655 60.7893 2.9759 -71.3139 40.5662
5 24 0.473 -55.3 91 1.654 -49.5856 99.1452 5.313 -50.761 83.827 -1.493 -55.3 95
5 24 9 -2.8448 92.7264 9.3 -2.5321 91.5593 9 -14.7392 88.6944 9 0 92
5 24 3.6 -59.9582 47.32 -10 -65.3576 67.0657 3.1308 -65.4379 36.2187 -5.4076 -59.9999 65.9996
5 24 -10 -63.827 70.761 -0.2327 -63.827 70.761 3.1251 -60 70 -10 -67.071 72.929
5 24 0 9 90 9 0 88.2366 9.3 -1.5508 87.8969 3.4443 8.3151 89.8658
5 24 8.6925 -39.4888 84.1004 9 -45.8816 67.8816 7.8066 -49.4171 74.9526 9 -36.4448 76.1664
5 24 -13.4013 -82.7166 40.2185 -14.0375 -85.0382 30.4149 -17 -83.7141 40.8792 -6.8105 -80.5854 31.056
5 24 -2.7913 -69.796 60 -5.1568 -67.071 72.929 -11.9977 -76.0655 60.7893 -0.2327 -63.827 70.761
5 24 -6.8105 -80.5854 31.056 -14.5469 -86.6264 20.8397 -7.5675 -83.2884 15.66 -14.0375 -85.0382 30.4149
5 24 6.8032 -50.761 76.173 -10 -50.761 76.173 6.5688 -50 80 -10 -52.929 72.929
5 24 -17 -81.1809 50.8465 -17 -83.7141 40.8792 -29 -81.1809 50.8465 -13.4013 -82.7166 40.2185
5 24 1.0868 -50.1003 70.1002 4.0352 -53.0874 57.6168 4.4284 -44.9199 66.9199 -1.5148 -54.6425 67.0658
5 24 -11.9977 -76.0655 60.7893 -17 -77.3097 62.0933 -17 -81.1809 50.8465 -11.4418 -72.1438 70.5133
5 24 -17 -73.4945 72.0606 -14 -69 80 -17 -68.3151 83.4443 -11.4418 -72.1438 70.5133
5 24 4.0352 -53.0874 57.6168 -5.4076 -59.9999 65.9996 -1.5148 -54.6425 67.0658 3.6 -59.9582 47.32
5 24 2 -45.9996 79.9999 -0.285 -46.7122 97.2762 1.705 -41.2594 101.2316 1.0012 -47.0657 85.3576
5 24 2.9759 -71.3139 40.5662 4.3242 -65.466 53 -0.2327 -63.827 70.761 9.3 -65.578 36.2768
5 24 -10 -49.5053 89 -10 -47.0657 85.3576 -14 -47.0657 85.3576 -2.8347 -52.4363 93.1845
5 24 -5.0015 -76.1334 45.924 -11.9977 -76.0655 60.7893 -2.7913 -69.796 60 -12.5394 -80.0398 49.7872
5 24 -17 -74.2097 62.0933 -14 -68.4595 69.1381 -17 -68.3151 76.5557 -10 -65.3576 67.0657
5 24 9.3 -65.578 36.2768 4.3242 -65.466 53 9.3 -60.0896 47.3958 2.9759 -71.3139 40.5662
5 24 9 -26 83.136 9 -20 109 9 -14.7392 88.6944 8.982 -25.084 109
5 24 -17 -73.4945 72.0606 -11.4418 -72.1438 70.5133 -14 -69 80 -17 -77.3097 62.0933
5 24 8.1566 -31 103.92 9 -28.5 91.796 8.6925 -39.4888 84.1004 8.982 -25.084 109
5 24 -5.1568 -67.071 72.929 -11.4418 -72.1438 70.5133 -11.9977 -76.0655 60.7893 -10 -68.861 75.6073
5 24 3.1308 -65.4379 36.2187 -17 -78.0809 50.8465 2.6352 -69.4128 24.4928 -17 -74.2097 62.0933
5 24 1.6953 -75.5559 27.4328 -5.0015 -76.1334 45.924 2.9759 -71.3139 40.5662 -6.8105 -80.5854 31.056
5 24 -17 -84.3377 20.9448 -17 -82.8297 30.7773 2.6352 -69.4128 24.4928 -29 -84.3377 20.9447
5 24 9 -45.8816 67.8816 7.8066 -49.4171 74.9526 9.3 -53.2077 57.7092 8.6925 -39.4888 84.1004
5 24 5.313 -50.761 83.827 -10 -50.761 83.827 -10 -50 80 0.473 -55.3 91
5 24 -14.5809 -87.8074 9.707 -14.6 -88.2044 0 -17 -88.6094 9.7652 -7.5439 -84.2 0
5 24 -17 -87.4377 20.9448 -17 -85.9297 30.7773 -14.5469 -86.6264 20.8397 -29 -85.9297 30.7773
5 24 6.0275 -42.5328 95.208 8.6925 -39.4888 84.1004 8.1566 -31 103.92 7.8066 -49.4171 74.9526
5 24 -17 -85.9297 30.7773 -29 -85.9297 30.7773 -17 -83.7141 40.8792 -29 -87.4377 20.9448
5 24 4.342 -42.1747 104.521 6.0275 -42.5328 95.208 1.654 -49.5856 99.1452 8.1566 -31 103.92
5 24 9.3 -60.0896 47.3958 4.3242 -65.466 53 9.3 -65.578 36.2768 6.4664 -58.1334 64.5328
5 24 9.3 -53.2077 57.7092 6.4664 -58.1334 64.5328 7.8066 -49.4171 74.9526 9.3 -60.0896 47.3958
5 24 -17 -77.3097 62.0933 -29 -77.3097 62.0933 -29 -81.1809 50.8465 -17 -73.4945 72.0606
5 24 -11.4418 -72.1438 70.5133 -14 -69 80 -10 -68.861 75.6073 -17 -73.4945 72.0606
5 24 -17 -87.4377 20.9448 -29 -87.4377 20.9447 -29 -88.6094 9.7652 -17 -85.9297 30.7773
5 24 -9.7165 -52.3529 93.1845 -9.929 -55.3 91 -9.641 -55.3 95 -10 -49.5053 89
5 24 9.3 -1.5508 87.8969 9 0 92 9 0 90 9.3 -2.5321 91.5593
5 24 -8.859 -47.0716 97.0155 -0.285 -46.7122 97.2762 -2.8347 -52.4363 93.1845 -5.089 -39.7329 102.339
5 24 -7.5675 -83.2884 15.66 -14.5809 -87.8074 9.707 -7.5439 -84.2 0 -14.5469 -86.6264 20.8397
5 24 -17 -80.6141 40.8792 2.6352 -69.4128 24.4928 -17 -78.0809 50.8465 -17 -82.8297 30.7773
5 24 5.064 -25.32 81.9582 5.617 -29 90 4.7736 -35.6168 75.0874 5.3032 -25.3033 88
5 24 1.6953 -75.5559 27.4328 0.6791 -78.1314 13.833 9.3 -71.9765 12.3703 -6.8105 -80.5854 31.056
5 24 -17 -85.5094 9.7652 -29 -85.5094 9.7652 -29 -84.3377 20.9447 -17 -85.9 0
5 24 -7.5439 -84.2 0 -7.5675 -83.2884 15.66 -14.5809 -87.8074 9.707 0.6791 -78.1314 13.833
5 24 9 -28.5 91.796 8.982 -25.084 109 9 -26 83.136 8.1566 -31 103.92
5 24 -17 -88.6094 9.7652 -29 -88.6094 9.7652 -17 -87.4377 20.9448 -29 -89 0
5 24 4.342 -42.1747 104.521 8.1566 -31 103.92 7.854 -30.867 109 6.0275 -42.5328 95.208
5 24 -17 -82.8297 30.7773 -17 -80.6141 40.8792 2.6352 -69.4128 24.4928 -29 -82.8297 30.7773
5 24 4.4284 -44.9199 66.9199 2 -45.9996 79.9999 1.705 -41.2594 101.2316 2 -47.0658 74.6425
5 24 7.854 -30.867 109 4.342 -42.1747 104.521 8.1566 -31 103.92 5.565 -36 109
5 24 0.6791 -78.1314 13.833 -7.5675 -83.2884 15.66 -6.8105 -80.5854 31.056 -7.5439 -84.2 0
5 24 7.854 -30.867 109 8.1566 -31 103.92 4.342 -42.1747 104.521 8.982 -25.084 109
5 24 -5.1568 -67.071 72.929 -10 -67.071 72.929 -0.2327 -63.827 70.761 -10 -68.861 75.6073
5 24 -17 -82.8297 30.7773 2.6352 -69.4128 24.4928 -17 -80.6141 40.8792 -17 -84.3377 20.9448
5 24 -17 -74.2097 62.0933 -17 -68.3151 76.5557 -29 -74.2097 62.0933 -14 -68.4595 69.1381
5 24 2.9759 -71.3139 40.5662 -2.7913 -69.796 60 -0.2327 -63.827 70.761 -5.0015 -76.1334 45.924
5 24 8.1566 -31 103.92 8.6925 -39.4888 84.1004 6.0275 -42.5328 95.208 9 -28.5 91.796
5 24 5.4099 -56.173 70.761 6.4664 -58.1334 64.5328 6.537 -52.929 72.929 3.1251 -60 70
2 24 -17 -68.3151 83.4443 -29 -68.3151 83.4443
5 24 -14.6 -88.2044 0 -7.5439 -84.2 0 -14.5809 -87.8074 9.707 -14.5809 -87.8074 -9.707
5 24 -17 -85.9 0 -29 -85.9 0 -29 -85.5094 -9.7652 -29 -85.5094 9.7652
5 24 -7.5439 -84.2 0 0.8942 -79 0 0.6791 -78.1314 13.833 0.6791 -78.1314 -13.833
5 24 1.6 -72.64 0 -17 -85.9 0 -17 -85.5094 -9.7652 -17 -85.5094 9.7652
5 24 -17 -89 0 -14.6 -88.2044 0 -14.5809 -87.8074 9.707 -14.5809 -87.8074 -9.707
5 24 0.8942 -79 0 9.3 -72.7917 0 0.6791 -78.1314 -13.833 0.6791 -78.1314 13.833
5 24 -29 -89 0 -17 -89 0 -17 -88.6094 -9.7652 -17 -88.6094 9.7652Status
Official
This part has the following warnings
-
Quad is not coplanarLine 58: 4 16 0 9 90 9 0 88.2366 9.3 -1.5508 87.8969 0 -1.5508 87.8969Line 235: 4 16 -10 -54.0341 89 -9.929 -55.3 91 -9.7165 -52.3529 93.1845 -10 -49.5053 89Line 262: 4 16 -2.8347 -52.4363 93.1845 1.0012 -47.0657 85.3576 -10 -47.0657 85.3576 -10 -49.5053 89
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 163: 1 16 1.644525 -31.84295 106 -1.161 0 -2.811 -2.84295 0 0 0 1 0 rect.dat
Part Dependencies
Unofficial parents
